Variant interpretation report

RB1 c.2439dup, p.(Lys814Ter)

NM_000321.2:c.2439dup NP_000312.2:p.(Lys814Ter) Nonsense · exon 23 View identifiers
Classification
Likely pathogenic

Variant description:

No variant summary was recorded for this case.

Five-step scale from benign to pathogenic. This variant is likely pathogenic. Select a step to read what it means.

Likely pathogenic.A likely pathogenic classification under the recorded framework.

In plain language

Gene-level background from the recorded interpretation.

About RB1

RB1 encodes a protein that acts as a key brake on cell division: in its active form it blocks cells from moving from the G1 into the S phase of the cell cycle, and it also helps maintain the structure of packaged DNA in the nucleus. It was the first tumor suppressor gene identified. Loss of RB1 function removes this brake, leading to uncontrolled cell growth and contributing to many cancers, including retinoblastoma (a childhood eye cancer), bladder cancer, osteogenic sarcoma, and cancers of the lung, breast, and prostate. Inherited changes in RB1 predispose children to retinoblastoma and adults to sarcomas and other tumors.

LYFE Sciences is an AI system, and it can make mistakes. Criteria may be applied incorrectly, sources may be misread, and a confident-looking classification can still be wrong. Double-check every criterion and its underlying evidence before relying on any call.
01The reasoning

How it was classified

The recorded framework is Not recorded. The criteria and strengths shown below come from the saved assessment; this page does not recalculate the classification.

Recorded applied criteria

The applied criteria and their strengths are shown as assessed under the stated framework.

Pathogenic evidence criteria: 2 Benign evidence criteria: 0
Pathogenic criteria applied · 2
PVS1Very strong
PVS1 · very strong

Met, very strong: RB1 c.2439dup creates p.Lys814Ter in exon 23 of 27, predicting NMD and loss of 116 of 929 amino acids.

PM2Supporting
PM2 · supporting

Met at supporting strength: variant absent from gnomAD v2.1 and v4.1, with observed allele frequency 0 versus the <=0.0001 PM2 threshold.

Benign criteria applied · 0

No benign criterion marked as applied in the recorded assessment.

Recorded classification: Likely pathogenic

Likely Pathogenic: PVS1 (very strong) plus PM2 (supporting) satisfy the generic ACMG/AMP fallback rule.

02The sources

Evidence at a glance

Evidence summaries and captured source records, where available. Missing entries should not be interpreted as negative findings.

SpliceAI score
0.026 maximum delta

Recorded SpliceAI maximum delta score: 0.026. Refer to the recorded PP3/BP4 rationale for interpretation.

No listed criterion applied SpliceAI ↗

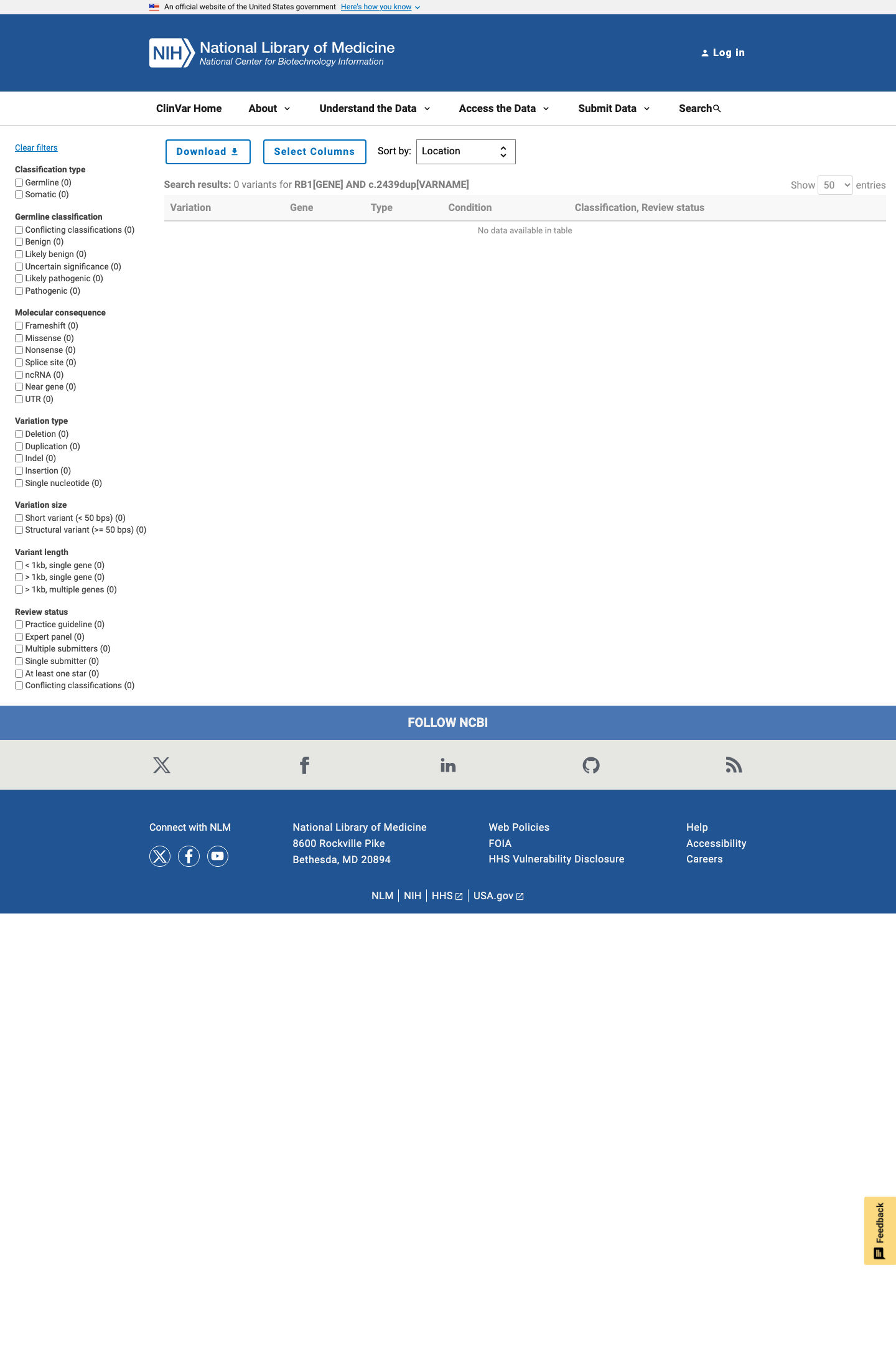

ClinVar submissions
Not recorded

A ClinVar laboratory submission summary was not recorded.

Context only ClinVar ↗

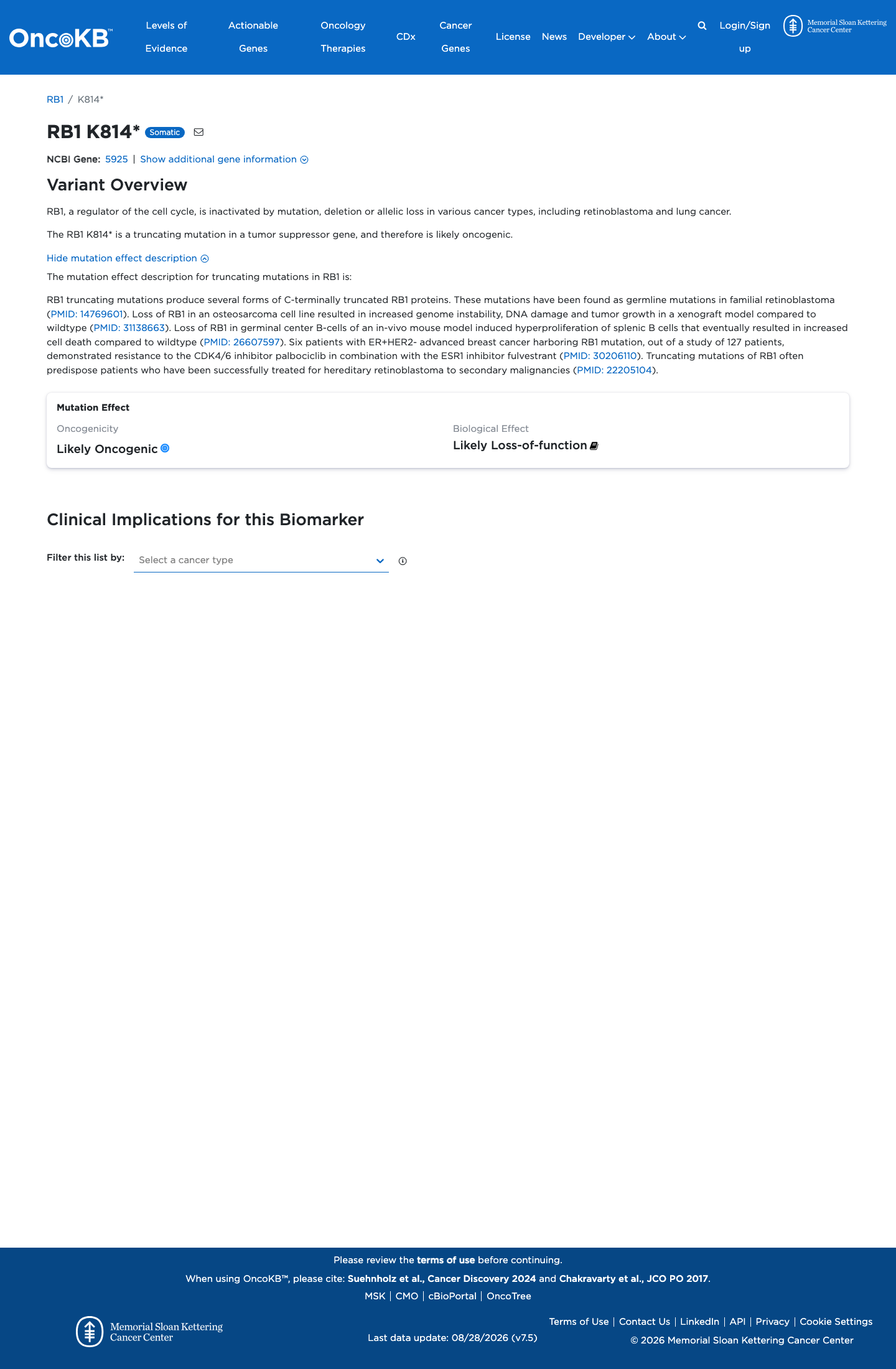

Functional evidence
Statement recorded

OncoKB identified variant-specific curated literature and context relevant to functional review; biological-effect context: Likely Loss-of-function; curated oncogenicity label: Likely Oncogenic.

No listed criterion applied OncoKB ↗
COSMIC
Cancer Hotspots
Somatic evidence
No matching record reported

This variant has not previously been reported in somatic cancers (COSMIC).

Cancer Hotspots

This variant does not lie in a statistically significant hotspot.

For specialists

Technical detail

ACMG/AMP criteria under Not recorded, with the data and sources behind each one.

28 criteria with recorded statuses: 2 met · 4 not met · 11 not assessed · 11 not applicable. Open any row for the full reasoning, the rule and the evidence behind it.

Met Not met Not assessed Not applicable

No RB1-specific VCEP or ClinGen CSPEC framework was available, so generic ACMG/AMP criterion concepts were used.

The case has no variant-specific PS4 case-control enrichment data, no individual phenotype for PP4, no alternate molecular explanation for BP5, and no qualifying exact-variant ClinVar expert-panel assertion for PP5 or BP6.

The available variant-specific OncoKB label is not used for PP5 because PP5 is restricted here to exact-variant ClinVar expert-panel Pathogenic or Likely pathogenic classifications.

Met · 2

PVS1 Very strongMet, very strong: RB1 c.2439dup creates p.Lys814Ter in exon 23 of 27, predicting NMD and loss of 116 of 929 amino acids. Details ▾Hide ▴
Reasoning

NM_000321.2:c.2439dup is a validated coding-exon 23 nonsense variant producing NP_000312.2:p.(Lys814Ter), truncating RB1 from 929 amino acids to approximately 813 residues. RB1 is a gene in which germline loss of function is an established disease mechanism, and this premature termination is well upstream of the terminal exons, so the transcript is predicted to undergo nonsense-mediated decay rather than escape it. The RefSeq transcript is the selected/canonical RB1 transcript, and the variant is not a canonical splice alteration or a repeat-region event. Under the generic ClinGen SVI PVS1 framework (PMC6185798), these findings support full, un-downgraded PVS1; no named NMD-escape, non-critical-exon, distal-region, or population-LoF downgrade rule applies.

Rule
ClinGen SVI generic PVS1 framework (PMC6185798): full strength for a disease-relevant nonsense variant predicted to undergo NMD; no downgrade rule triggered.
Evidence considered
  • VariantValidator maps NM_000321.2:c.2439dup to RB1 coding exon 23 and confirms NP_000312.2:p.(K814*); the selected RefSeq transcript is NM_000321.2.
  • Mutalyzer predicts a premature stop at p.(Lys814Ter), with the predicted protein ending at residue 813 versus the 929-residue reference protein, a loss of 116 amino acids.
  • The gene-level PVS1 eligibility assessment supports RB1 germline loss of function as a disease mechanism and identifies no RB1-specific CSPEC/VCEP specification, so the generic ClinGen SVI framework applies.
  • The generic ClinGen SVI PVS1 framework supports full strength for a disease-relevant nonsense variant predicted to undergo NMD; downgrade considerations include NMD escape, non-critical exons/distal regions, and biologically irrelevant exons, none of which is supported here.
  • A reviewed hereditary-retinoblastoma cohort paper describes nonsense-mediated decay as the mechanism that degrades RB1 transcripts containing premature termination codons, providing gene-level context for the predicted NMD mechanism (PMID:22205104).
Sources
pvs1_generic_framework ↗pvs1_gene_contextpvs1_variant_assessmentPMID:22205104 ↗
PM2 SupportingMet at supporting strength: variant absent from gnomAD v2.1 and v4.1, with observed allele frequency 0 versus the <=0.0001 PM2 threshold. Details ▾Hide ▴
Reasoning

No applicable RB1-specific VCEP or CSPEC population rule was available, so the supplied generic PM2 threshold applies. The variant is absent from gnomAD v2.1 and gnomAD v4.1, with no observed allele frequency, satisfying the generic PM2 supporting threshold of <=0.0001 (ClinGen SVI recommendation, PMID:25741868). The non-cancer subset checks were also absent, and no governing specification required substituting those subsets for the default all-comers sources.

Rule
Generic PM2: absent or extremely rare in population databases, operationalized here as allele frequency <=0.0001 at supporting strength.
Evidence considered
  • gnomAD v2.1 reports the variant as absent, with no observed allele count or frequency.
  • gnomAD v4.1 reports the variant as absent, with no observed allele count or frequency.
  • The supplied generic PM2 threshold is allele frequency <=0.0001 at supporting strength under the ClinGen SVI recommendation (PMID:25741868).
  • No RB1-specific VCEP or CSPEC population specification was available; therefore the default all-comers gnomAD sources were used. The separately checked gnomAD v2.1 non-cancer and v3.1 non-cancer records were also absent.
Sources

Not met · 4 · evaluated, threshold not reached

PP5 Not met: ClinVar has no exact-variant expert-panel Pathogenic/Likely pathogenic classification for c.2439dupT. Details ▾Hide ▴
Reasoning

ClinVar returned no exact record for NM_000321.2:c.2439dupT and therefore no exact-variant expert-panel Pathogenic or Likely pathogenic classification is available. OncoKB's variant-specific Likely Oncogenic label is not a ClinVar expert-panel assertion and cannot trigger PP5 under the specified rule. PP5 is not met.

Rule
PP5 applies only to an exact-variant ClinVar expert-panel Pathogenic or Likely pathogenic classification; ordinary laboratory submissions, aggregate labels, non-expert assertions, and non-ClinVar sources do not qualify.
Evidence considered
  • ClinVar search found no exact record for NM_000321.2:c.2439dupT; the case evidence states that the variant is absent from ClinVar.
  • The available OncoKB Likely Oncogenic label is not an exact-variant ClinVar expert-panel classification and is excluded from PP5.
Sources
BA1 Not met: variant absent from gnomAD v2.1 and v4.1, with observed allele frequency 0 versus the >=0.05 BA1 threshold. Details ▾Hide ▴
Reasoning

No applicable RB1-specific VCEP or CSPEC population rule was available, so the supplied generic ACMG/AMP threshold applies. The variant is absent from gnomAD v2.1 and gnomAD v4.1, with no observed allele frequency, which is far below the generic BA1 stand-alone threshold of >=0.05 (ACMG/AMP 2015, PMID:25741868). The non-cancer subset checks were also absent, but they do not replace the default all-comers sources because no governing specification requires them.

Rule
Generic BA1: allele frequency >=0.05; absence from gnomAD does not meet this threshold.
Evidence considered
  • gnomAD v2.1 reports the variant as absent, with no observed allele count or frequency.
  • gnomAD v4.1 reports the variant as absent, with no observed allele count or frequency.
  • The generic BA1 stand-alone threshold is allele frequency >=0.05 under ACMG/AMP 2015 (PMID:25741868).
  • No RB1-specific VCEP or CSPEC population specification was available; therefore the default all-comers gnomAD sources were used. The separately checked gnomAD v2.1 non-cancer and v3.1 non-cancer records were also absent.
Sources
BS1 Not met: variant absent from gnomAD v2.1 and v4.1, with observed allele frequency 0 versus the >=0.01 BS1 threshold. Details ▾Hide ▴
Reasoning

No applicable RB1-specific VCEP or CSPEC population rule was available, so the supplied generic BS1 threshold applies. The variant is absent from gnomAD v2.1 and gnomAD v4.1, with no observed allele frequency, and therefore does not reach the generic BS1 threshold of >=0.01 (generic SVI default; Whiffin et al. 2017, PMID:28518168). The non-cancer subset checks were also absent, but no governing specification required those subsets.

Rule
Generic BS1: allele frequency >=0.01; absence from gnomAD does not meet this threshold.
Evidence considered
  • gnomAD v2.1 reports the variant as absent, with no observed allele count or frequency.
  • gnomAD v4.1 reports the variant as absent, with no observed allele count or frequency.
  • The supplied generic BS1 threshold is allele frequency >=0.01, with per-gene derivation preferred (Whiffin et al. 2017, PMID:28518168).
  • No RB1-specific VCEP or CSPEC population specification was available; therefore the default all-comers gnomAD sources were used. The separately checked gnomAD v2.1 non-cancer and v3.1 non-cancer records were also absent.
Sources
BP6 Not met: ClinVar has no exact-variant expert-panel Benign/Likely benign classification for c.2439dupT. Details ▾Hide ▴
Reasoning

ClinVar returned no exact record for NM_000321.2:c.2439dupT and therefore no exact-variant expert-panel Benign or Likely benign classification is available. No ordinary laboratory, aggregate, or non-expert assertion may trigger BP6. BP6 is not met.

Rule
BP6 applies only to an exact-variant ClinVar expert-panel Benign or Likely benign classification; ordinary laboratory submissions, aggregate labels, and non-expert assertions do not qualify.
Evidence considered
  • ClinVar search found no exact record for NM_000321.2:c.2439dupT; the case evidence states that the variant is absent from ClinVar.
  • No qualifying exact-variant ClinVar expert-panel Benign or Likely benign assertion is present.
Sources

Not assessed · 11 · no assessment recorded

PS2 Not assessed: no parental genotypes or confirmed maternity and paternity establish de novo occurrence of NM_000321.2:c.2439dupT. Details ▾Hide ▴
Reasoning

No proband-level parental testing or other evidence establishes that NM_000321.2:c.2439dupT arose de novo. The available case materials provide variant normalization and population/literature retrieval results but no parent genotypes, maternity/paternity confirmation, or parental phenotype information.

Rule
Generic ACMG/AMP PS2: de novo occurrence in a patient with the disease and no family history, with maternity and paternity confirmed; stronger application requires additional de novo evidence and phenotype consistency.
Evidence considered
  • The case materials identify NM_000321.2:c.2439dupT in RB1 but contain no proband-level parental testing results.
  • No source reviewed for this case reports de novo occurrence of this exact variant in the proband.
Still missing
  • Parental genotypes for both biological parents are missing.
  • Maternity and paternity confirmation are missing.
  • Proband phenotype and disease-consistency details are missing.
PS3 Not assessed: no validated functional assay tested RB1 c.2439dup or p.Lys814Ter, so variant-specific damaging evidence is unavailable. Details ▾Hide ▴
Reasoning

No applicable RB1-specific VCEP specification was available, so generic ACMG/AMP functional-evidence principles were used. The case contains no validated assay performed on NM_000321.2:c.2439dup (NP_000312.2:p.(Lys814Ter)); the available papers describe other RB1 variants or experimental RB1 loss and do not test this variant. Therefore, there is insufficient variant-specific functional evidence to apply PS3 at any strength.

Evidence considered
  • No RB1-specific VCEP or CSPEC specification was available; generic ACMG/AMP principles therefore apply.
  • PMID:14769601 tested germline RB1 mutations using protein truncation testing but did not mention or assay c.2439dup/p.Lys814Ter.
  • PMID:22205104 evaluated clinical outcomes associated with germline RB1 mutation classes but did not test the queried variant in a functional assay.
  • PMID:26607597 studied conditional Rb1 loss in mouse germinal-center B cells, not the queried human variant.
  • PMID:30206110 reported acquired truncating RB1 variants in a treatment cohort, not the queried variant or a direct assay of its function.
  • PMID:31138663 used experimentally induced RB1 mutations and deletions in cancer cell lines, not the queried variant.
Still missing
  • A validated assay of the queried variant, with appropriate controls and a disease-relevant readout, is unavailable.
Sources
PS4 Not assessed: no variant-specific case-control counts or enrichment statistic were available to evaluate PS4. Details ▾Hide ▴
Reasoning

No case-control enrichment analysis, affected/unaffected cohort counts, odds ratio, p-value, or other phenotype-prevalence statistic for NM_000321.2:c.2439dup was provided. The available literature is not variant-specific for this alteration and does not supply PS4-usable case-control data. Therefore PS4 cannot be assessed.

Rule
Generic ACMG/AMP PS4 requires statistically significant increased prevalence of the variant in affected individuals compared with controls; no applicable RB1-specific rule was available.
Evidence considered
  • The available literature extracts explicitly state that the queried variant is not mentioned and provide no case-control enrichment statistic for it.
  • No PS4-compatible case-control dataset or phenotype prevalence comparison was identified in the available evidence.
Still missing
  • Variant-specific affected-case and control counts or a validated case-control enrichment statistic are unavailable.
PM6 Not assessed: no proband-level report documents apparently de novo NM_000321.2:c.2439dupT without parental testing. Details ▾Hide ▴
Reasoning

No proband-level report establishes that NM_000321.2:c.2439dupT is apparently de novo without parental testing. The reviewed literature extraction contains no report of this exact variant and no informative family or meiosis data.

Rule
Generic ACMG/AMP PM6: assumed de novo, without confirmation of paternity and maternity; this is weaker than PS2 and requires a documented affected proband with a consistent phenotype.
Evidence considered
  • The available paper extracts state that the queried variant is not mentioned in the reviewed publications.
  • No case-level apparent de novo observation, family history, or meiosis count is available.
Still missing
  • A proband-level case report or cohort record is missing.
  • Parental testing or a documented reason for unavailable parental testing is missing.
  • Phenotype consistency and family-history information are missing.
PP1 Not assessed: zero informative meioses or affected relatives are documented for segregation of NM_000321.2:c.2439dupT. Details ▾Hide ▴
Reasoning

No affected relatives, informative meioses, or genotype-phenotype co-segregation data are provided for NM_000321.2:c.2439dupT. Therefore, neither supporting nor stronger segregation evidence can be assigned.

Rule
Generic ACMG/AMP PP1: co-segregation with disease in multiple affected family members; strength depends on the number and informativeness of meioses and any applicable validated statistical framework.
Evidence considered
  • The case materials contain no family pedigree, relative testing results, or count of informative meioses.
  • The reviewed publications do not provide segregation data for this exact variant.
Still missing
  • Affected-relative genotypes and phenotypes are missing.
  • Unaffected-relative genotypes and phenotypes are missing.
  • The number of informative meioses is unavailable.
PP4 Not assessed: no individual clinical phenotype was available to determine whether it is highly specific for an RB1-related disorder. Details ▾Hide ▴
Reasoning

No individual-level clinical phenotype or phenotype-to-disease specificity assessment was supplied for the variant carrier. The available papers are not variant-specific and describe RB1 or retinoblastoma at a general cohort or experimental level, which cannot establish that this patient's phenotype is highly specific for an RB1-related disorder. Therefore PP4 cannot be assessed.

Rule
Generic ACMG/AMP PP4 may be applied when the patient's phenotype or family history is highly specific for a disease with a single-gene etiology; no applicable RB1-specific rule was available.
Evidence considered
  • No individual-level phenotype, diagnostic features, or phenotype specificity assessment was available for this variant case.
  • General RB1 and retinoblastoma descriptions in the available literature do not substitute for a highly specific patient phenotype.
Still missing
  • A documented patient phenotype and assessment of its specificity for an RB1-related disorder are unavailable.
BS2 Not assessed: no documented unaffected carriers or homozygotes are available to evaluate the BS2 requirement. Details ▾Hide ▴
Reasoning

The available evidence contains no documented healthy adult carriers, healthy homozygotes, or disease-relevant penetrance analysis for this specific variant. Population absence in gnomAD is relevant to rarity but does not establish the BS2 requirement of occurrence in unaffected individuals. Accordingly, BS2 cannot be assessed from the available evidence.

Rule
BS2 requires occurrence in healthy adults, typically including homozygotes for a fully penetrant dominant disorder or hemizygotes/homozygotes for a recessive disorder, as applicable; absence cannot satisfy BS2.
Evidence considered
  • gnomAD v2.1 and v4.1 report the variant as absent, so they provide no unaffected carrier or homozygote observations for BS2.
  • No case-specific study or population dataset documenting unaffected carriers or homozygotes was available in the reviewed evidence.
Still missing
  • A sufficiently characterized unaffected population cohort with carrier and, if relevant, homozygote observations is needed for BS2.
Sources
BS3 Not assessed: no validated benign functional assay tested RB1 c.2439dup or p.Lys814Ter with appropriate controls. Details ▾Hide ▴
Reasoning

No applicable RB1-specific VCEP specification was available, so generic ACMG/AMP functional-evidence principles were used. No validated assay demonstrated that NM_000321.2:c.2439dup (NP_000312.2:p.(Lys814Ter)) preserves normal RB1 function, and the reviewed publications did not perform a variant-specific benign functional assay with appropriate controls. Therefore, BS3 cannot be applied at any strength.

Evidence considered
  • No RB1-specific VCEP or CSPEC specification was available; generic ACMG/AMP principles therefore apply.
  • The reviewed functional publications did not test NM_000321.2:c.2439dup or NP_000312.2:p.(Lys814Ter) and provide no variant-specific evidence of preserved function.
Still missing
  • A validated assay demonstrating preserved RB1 function for the queried variant, with appropriate controls and a disease-relevant readout, is unavailable.
Sources
BS4 Not assessed: no tested unaffected relatives or informative non-segregation observations are documented for NM_000321.2:c.2439dupT. Details ▾Hide ▴
Reasoning

No tested unaffected relatives or other informative non-segregation observations are provided. Absence of family data cannot establish that NM_000321.2:c.2439dupT fails to track with the relevant phenotype.

Rule
Generic ACMG/AMP BS4: lack of segregation in affected members or presence in unaffected members when disease is expected to be fully penetrant; reliable phenotype, age, and testing context are required.
Evidence considered
  • No unaffected relative has a documented genotype and phenotype in the available case materials.
  • No informative non-segregation observation for this exact variant is reported in the reviewed literature.
Still missing
  • Unaffected relatives with reliable phenotyping are missing.
  • Genotypes of unaffected relatives are missing.
  • Age-related penetrance and surveillance information are missing.
BP2 Not assessed: no second pathogenic variant or documented cis/trans phase is available for this RB1 variant. Details ▾Hide ▴
Reasoning

No RB1-specific VCEP framework was available, so the generic ACMG/AMP BP2 definition was used. BP2 requires documented allelic context, such as the evaluated variant in trans with a pathogenic variant in a fully penetrant dominant disorder or in cis with a pathogenic variant. The available case evidence contains no second pathogenic or likely pathogenic variant, affected-proband genotype, phase determination, or family data establishing cis/trans configuration, so BP2 cannot be assessed.

Rule
Generic ACMG/AMP BP2: variant observed in trans with a pathogenic variant in a fully penetrant dominant disorder, or in cis with a pathogenic variant.
Evidence considered
  • The case evidence does not document a second pathogenic or likely pathogenic variant in the same individual.
  • No cis/trans phase, affected-proband genotype, or segregation information is provided.
Still missing
  • Affected-proband genotype containing another pathogenic or likely pathogenic variant.
  • Experimental or family-based phase information showing cis or trans configuration.
  • Inheritance and phenotype details for any individual carrying both variants.
BP5 Not assessed: no alternate pathogenic variant or established alternative molecular explanation was documented for the phenotype. Details ▾Hide ▴
Reasoning

No evidence was provided that the individual has an alternate molecular explanation for the phenotype, and no relevant alternate pathogenic variant or established phenocopy was documented. The variant's absence from ClinVar and general RB1 literature do not evaluate BP5. Therefore BP5 cannot be assessed.

Rule
Generic BP5 requires a pathogenic variant in an alternate gene that explains the phenotype; no applicable RB1-specific rule was available.
Evidence considered
  • The available case evidence does not document an alternate pathogenic variant, alternate molecular diagnosis, or phenocopy explaining the patient's presentation.
  • No BP5-specific likelihood-ratio-style value or other governing threshold was supplied; no numeric comparison can be performed.
Still missing
  • An evaluated alternate molecular diagnosis or pathogenic variant explaining the phenotype is unavailable.
Not applicable · 11· recorded as not applicable Show reasons ▾Hide reasons ▴
PS1 N/APS1 (Richards et al. 2015, PMID:25741868) requires the same amino acid change as a previously established pathogenic variant, evaluated regardless of the underlying nucleotide change. NM_000321.2:c.2439dup in RB1 is a nonsense substitution introducing a premature stop codon predicted to produce NP_000312.2:p.(Lys814Ter). As a result, no altered amino acid exists at this position to compare against any previously established pathogenic missense variant, so PS1's structural prerequisite is not met by this variant class. This determination was made deterministically from the variant's consequence class, prior to LLM adjudication, because no structured VCEP criteria-combination framework governs this case (framework_complete=false); the generic ACMG/AMP 2015 fallback applies. Details ▾Hide ▴
Rule
deterministic_prefilter: requires_missense
Evidence considered
  • Deterministic consequence classification: nonsense (prefetch.json normalized protein consequence)
Sources
generic_acmg_combination_rules
PM1 N/APM1 (Richards et al. 2015, PMID:25741868) applies to a missense variant located in a mutational hot spot and/or a critical, well-established functional domain without benign variation. NM_000321.2:c.2439dup in RB1 is a nonsense substitution introducing a premature stop codon predicted to produce NP_000312.2:p.(Lys814Ter). As a result, no altered residue exists to evaluate for mutational hot-spot or critical-domain membership, so PM1's structural prerequisite is not met by this variant class. This determination was made deterministically from the variant's consequence class, prior to LLM adjudication, because no structured VCEP criteria-combination framework governs this case (framework_complete=false); the generic ACMG/AMP 2015 fallback applies. Details ▾Hide ▴
Rule
deterministic_prefilter: requires_missense
Evidence considered
  • Deterministic consequence classification: nonsense (prefetch.json normalized protein consequence)
Sources
generic_acmg_combination_rules
PM3 N/ANot applicable: PM3 requires a recessive disorder with a pathogenic variant in trans, but RB1 predisposition is heterozygous rather than recessive. Details ▾Hide ▴
Reasoning

No RB1-specific VCEP framework was available, so generic ACMG/AMP definitions were used. PM3 is a recessive-disease criterion requiring a pathogenic variant demonstrated in trans with the evaluated variant in an affected individual. RB1 hereditary retinoblastoma is characterized by heterozygous germline predisposition rather than a recessive allelic requirement, and this case contains no recessive inheritance model or compound-heterozygous affected-proband observation; PM3 is therefore not applicable.

Rule
Generic ACMG/AMP PM3: pathogenic variant demonstrated in trans with the evaluated variant in an affected individual with a recessive disorder.
Evidence considered
  • The case context describes RB1 hereditary cancer predisposition through heterozygous germline variants.
  • No affected-proband observation establishes compound heterozygosity, homozygosity, or a pathogenic RB1 variant in trans.
PM4 N/APM4 (Richards et al. 2015, PMID:25741868) applies to protein length changes: in-frame insertions/deletions in a non-repetitive region, or stop-loss variants that extend the protein past the reference stop codon. NM_000321.2:c.2439dup in RB1 is a nonsense substitution introducing a premature stop codon predicted to produce NP_000312.2:p.(Lys814Ter). As a result, no change in protein length occurs, so there is nothing for this criterion to evaluate, so PM4's structural prerequisite is not met by this variant class. This determination was made deterministically from the variant's consequence class, prior to LLM adjudication, because no structured VCEP criteria-combination framework governs this case (framework_complete=false); the generic ACMG/AMP 2015 fallback applies. Details ▾Hide ▴
Rule
deterministic_prefilter: requires_stop_loss_or_nonrepeat_indel
Evidence considered
  • Deterministic consequence classification: nonsense (prefetch.json normalized protein consequence)
Sources
pvs1_generic_framework ↗generic_acmg_combination_rules
PM5 N/APM5 (Richards et al. 2015, PMID:25741868) requires a novel missense change at an amino acid residue where a different missense change has previously been determined to be pathogenic. NM_000321.2:c.2439dup in RB1 is a nonsense substitution introducing a premature stop codon predicted to produce NP_000312.2:p.(Lys814Ter). As a result, no missense change exists at this residue to compare against a different pathogenic missense change at the same position, so PM5's structural prerequisite is not met by this variant class. This determination was made deterministically from the variant's consequence class, prior to LLM adjudication, because no structured VCEP criteria-combination framework governs this case (framework_complete=false); the generic ACMG/AMP 2015 fallback applies. Details ▾Hide ▴
Rule
deterministic_prefilter: requires_missense
Evidence considered
  • Deterministic consequence classification: nonsense (prefetch.json normalized protein consequence)
Sources
generic_acmg_combination_rules
PP2 N/APP2 (Richards et al. 2015, PMID:25741868) applies to a missense variant in a gene with a low rate of benign missense variation, where missense variants are a common mechanism of disease. NM_000321.2:c.2439dup in RB1 is a nonsense substitution introducing a premature stop codon predicted to produce NP_000312.2:p.(Lys814Ter). As a result, the gene's missense-constraint properties are irrelevant because no missense change is present to evaluate, so PP2's structural prerequisite is not met by this variant class. This determination was made deterministically from the variant's consequence class, prior to LLM adjudication, because no structured VCEP criteria-combination framework governs this case (framework_complete=false); the generic ACMG/AMP 2015 fallback applies. Details ▾Hide ▴
Rule
deterministic_prefilter: requires_missense
Evidence considered
  • Deterministic consequence classification: nonsense (prefetch.json normalized protein consequence)
Sources
generic_acmg_combination_rules
PP3 N/ANot applicable: c.2439dup is a truncating variant predicted as p.(Lys814Ter), outside PP3's missense and splice-region/intronic scope. Details ▾Hide ▴
Reasoning

PP3 is not applicable because NM_000321.2:c.2439dup is a truncating duplication predicted to produce p.(Lys814Ter), not a missense or splice-region/intronic variant. Under the specified scope rule, SpliceAI and missense predictors must not be evaluated for this variant, regardless of the available SpliceAI score.

Evidence considered
  • Variant normalization identifies NM_000321.2:c.2439dup with predicted protein consequence NP_000312.2:p.(Lys814Ter), a truncating change.
  • No governing RB1 VCEP or gene-specific framework was available; the specified scope rule therefore excludes truncating variants from PP3 before predictor evaluation.
BP1 N/ABP1 (Richards et al. 2015, PMID:25741868) applies to a missense variant in a gene for which primarily truncating variants are known to cause disease. NM_000321.2:c.2439dup in RB1 is a nonsense substitution introducing a premature stop codon predicted to produce NP_000312.2:p.(Lys814Ter). As a result, the gene's truncating-variant mechanism is irrelevant because no missense change is present to evaluate, so BP1's structural prerequisite is not met by this variant class. This determination was made deterministically from the variant's consequence class, prior to LLM adjudication, because no structured VCEP criteria-combination framework governs this case (framework_complete=false); the generic ACMG/AMP 2015 fallback applies. Details ▾Hide ▴
Rule
deterministic_prefilter: requires_missense
Evidence considered
  • Deterministic consequence classification: nonsense (prefetch.json normalized protein consequence)
Sources
generic_acmg_combination_rules
BP3 N/ABP3 (Richards et al. 2015, PMID:25741868) applies to in-frame insertions/deletions located in a repetitive region without a known function. NM_000321.2:c.2439dup in RB1 is a nonsense substitution introducing a premature stop codon predicted to produce NP_000312.2:p.(Lys814Ter). As a result, the variant does not alter protein length within a repeat region, so there is nothing for this criterion to evaluate, so BP3's structural prerequisite is not met by this variant class. This determination was made deterministically from the variant's consequence class, prior to LLM adjudication, because no structured VCEP criteria-combination framework governs this case (framework_complete=false); the generic ACMG/AMP 2015 fallback applies. Details ▾Hide ▴
Rule
deterministic_prefilter: requires_repeat_region_indel
Evidence considered
  • Deterministic consequence classification: nonsense (prefetch.json normalized protein consequence)
Sources
pvs1_generic_framework ↗generic_acmg_combination_rules
BP4 N/ANot applicable: c.2439dup is a truncating variant predicted as p.(Lys814Ter), outside BP4's missense and splice-region/intronic scope. Details ▾Hide ▴
Reasoning

BP4 is not applicable because NM_000321.2:c.2439dup is a truncating duplication predicted to produce p.(Lys814Ter), not a missense or splice-region/intronic variant. Under the specified scope rule, SpliceAI and missense predictors must not be evaluated for this variant, regardless of the available SpliceAI score.

Evidence considered
  • Variant normalization identifies NM_000321.2:c.2439dup with predicted protein consequence NP_000312.2:p.(Lys814Ter), a truncating change.
  • No governing RB1 VCEP or gene-specific framework was available; the specified scope rule therefore excludes truncating variants from BP4 before predictor evaluation.
BP7 N/ABP7 (Richards et al. 2015, PMID:25741868) is defined for a synonymous (silent) variant for which splicing prediction algorithms predict no impact to the splice consensus sequence and the nucleotide is not highly conserved. NM_000321.2:c.2439dup in RB1 is a nonsense substitution introducing a premature stop codon predicted to produce NP_000312.2:p.(Lys814Ter). As a result, the encoded protein sequence is altered, so the criterion's silent-variant premise does not hold regardless of any splicing prediction, so BP7's structural prerequisite is not met by this variant class. This determination was made deterministically from the variant's consequence class, prior to LLM adjudication, because no structured VCEP criteria-combination framework governs this case (framework_complete=false); the generic ACMG/AMP 2015 fallback applies. Details ▾Hide ▴
Rule
deterministic_prefilter: requires_synonymous
Evidence considered
  • Deterministic consequence classification: nonsense (prefetch.json normalized protein consequence)
Sources
generic_acmg_combination_rules

Identifiers

Gene
RB1
Transcript
NM_000321.2
Coding (HGVS c.)
NM_000321.2:c.2439dup
Protein (HGVS p.)
NP_000312.2:p.(Lys814Ter)
GRCh38
chr13:48465317 A>AT
GRCh37
chr13:49039453 A>AT
Location and type
Exon 23 · nonsense

Gene diagram

Every interpreted variant in RB1, mapped onto the exon structure of NM_000321.2. Select a row to find it on the plot.

RB1NM_000321.2
Fetching transcript structure from UCSC…
gnomAD v4.1 Allele count data not recorded
gnomAD v2.1 Allele count data not recorded
gnomAD-Canada v1.0 Allele count data not recorded

Statements

gnomAD v4.1

Absent from gnomAD v4.1.

gnomAD v2.1

Absent from gnomAD v2.1.

gnomAD-Canada

Not available in gnomAD-Canada v1.0.

SpliceAI and Pangolin

SpliceAI acceptor lossat -112 bp
0.007
SpliceAI acceptor gainat +181 bp
0.002
SpliceAI donor lossat +325 bp
0.026
SpliceAI donor gainat +14 bp
0.003
Pangolin splice lossmagnitude shown
-0.106
Pangolin splice gain
0.010

Other predictors

REVEL
Not available
BayesDel
Not available

How the predictions were used

PP3 N/ANot applicable: c.2439dup is a truncating variant predicted as p.(Lys814Ter), outside PP3's missense and splice-region/intronic scope. Details ▾Hide ▴
Reasoning

PP3 is not applicable because NM_000321.2:c.2439dup is a truncating duplication predicted to produce p.(Lys814Ter), not a missense or splice-region/intronic variant. Under the specified scope rule, SpliceAI and missense predictors must not be evaluated for this variant, regardless of the available SpliceAI score.

Evidence considered
  • Variant normalization identifies NM_000321.2:c.2439dup with predicted protein consequence NP_000312.2:p.(Lys814Ter), a truncating change.
  • No governing RB1 VCEP or gene-specific framework was available; the specified scope rule therefore excludes truncating variants from PP3 before predictor evaluation.
BP4 N/ANot applicable: c.2439dup is a truncating variant predicted as p.(Lys814Ter), outside BP4's missense and splice-region/intronic scope. Details ▾Hide ▴
Reasoning

BP4 is not applicable because NM_000321.2:c.2439dup is a truncating duplication predicted to produce p.(Lys814Ter), not a missense or splice-region/intronic variant. Under the specified scope rule, SpliceAI and missense predictors must not be evaluated for this variant, regardless of the available SpliceAI score.

Evidence considered
  • Variant normalization identifies NM_000321.2:c.2439dup with predicted protein consequence NP_000312.2:p.(Lys814Ter), a truncating change.
  • No governing RB1 VCEP or gene-specific framework was available; the specified scope rule therefore excludes truncating variants from BP4 before predictor evaluation.
BP7 N/ABP7 (Richards et al. 2015, PMID:25741868) is defined for a synonymous (silent) variant for which splicing prediction algorithms predict no impact to the splice consensus sequence and the nucleotide is not highly conserved. NM_000321.2:c.2439dup in RB1 is a nonsense substitution introducing a premature stop codon predicted to produce NP_000312.2:p.(Lys814Ter). As a result, the encoded protein sequence is altered, so the criterion's silent-variant premise does not hold regardless of any splicing prediction, so BP7's structural prerequisite is not met by this variant class. This determination was made deterministically from the variant's consequence class, prior to LLM adjudication, because no structured VCEP criteria-combination framework governs this case (framework_complete=false); the generic ACMG/AMP 2015 fallback applies. Details ▾Hide ▴
Rule
deterministic_prefilter: requires_synonymous
Evidence considered
  • Deterministic consequence classification: nonsense (prefetch.json normalized protein consequence)
Sources
generic_acmg_combination_rules

Statement

In silico

SpliceAI predicts no significant splice impact for this variant (max delta score = 0.03).

5 paper records listed. 1 cited in the classification. None of the listed paper records explicitly indicates that the variant is named.

Cited in the classification

  • RB1 mutations and second primary malignancies after hereditary retinoblastoma.
    In a Dutch cohort of 199 hereditary retinoblastoma patients with documented germline RB1 mutations, the authors discuss nonsense-mediated decay as the mechanism that degrades RB1 transcripts containing premature termination codons; the queried c.2439dup/p.(K814*) variant is not specifically reported.
    → PVS1 · very strong Does not name this variant
    PMID 22205104 ↗
    Source detail
    Nonsense and frameshift mutations are associated with bilateral retinoblastoma and high (>90%) penetrance [19], irrespective of the location of the premature stop mutation. This is attributed to nonsense mediated mRNA decay (NMD): a mechanism of mRNA surveillance that prevents the expression of truncated proteins, by breaking down mutant mRNA containing a premature termination codon [24].

    Location Discussion, paragraph discussing nonsense-mediated mRNA decay

    Context Dutch population-based cohort of 199 hereditary retinoblastoma patients with documented germline RB1 mutations; mutation analysis used sequencing, DGGE, MLPA, and, when indicated, karyotyping.

Other recorded publications

  • Rapid identification of germline mutations in retinoblastoma by protein truncation testing.
    The paper does not explicitly mention RB1 c.2439dup or NP_000312.2:p.(K814*). It reports that protein truncation testing detected germline RB1 mutations producing truncated proteins, and that focused cDNA and genomic sequencing identified frameshift, splice-site, and nonsense mutations.
    Does not name this variant
    PMID 14769601 ↗
    Quoted passage
    This is a frameshift mutation that produces a new stop codon in exon 19.

    Results, paragraph describing patient Rb232; Table 4

  • Deletion of Rb1 induces both hyperproliferation and cell death in murine germinal center B cells.
    The paper does not mention RB1 c.2439dup or NP_000312.2:p.(K814*). It studies conditional Rb1 loss in mouse germinal-center B cells and reports increased proliferation together with increased cell death in Rb1-deficient cells.
    Does not name this variant
    PMID 26607597 ↗
    Quoted passage
    Our data suggest complete absence of Rb1 in antigen stimulated cells results in hyperproliferation balanced by cell death.

    Introduction, final paragraph; Results and Discussion, paragraphs 3 and 8

  • The Genetic Landscape and Clonal Evolution of Breast Cancer Resistance to Palbociclib plus Fulvestrant in the PALOMA-3 Trial.
    The paper does not explicitly mention RB1 c.2439dup or NP_000312.2:p.(K814*). It reports acquired stop-gain or frameshift RB1 variants in a PALOMA-3 treatment cohort and interprets them as highly likely to abrogate Rb function, but does not assay the queried variant.
    Does not name this variant
    PMID 30206110 ↗
    Quoted passage
    In the 6 patients who acquired RB1 aberrations, all 8 variants were either a gain of a stop codon or a frameshift deletion, highly likely to result in abrogated Rb function.

    Results, “Patients acquire new driver mutations in both treatment arms,” page 10

  • RB1 Deletion in Retinoblastoma Protein Pathway-Disrupted Cells Results in DNA Damage and Cancer Progression.
    This paper does not report the specific RB1 c.2439dup or NP_000312.2:p.(K814*) variant. It investigates experimentally induced non-functional RB1 mutations and deletions in cancer cell lines with pre-existing RB-pathway disruption and reports DNA-damage, repair, mitotic, and tumor-progression phenotypes.
    Does not name this variant
    PMID 31138663 ↗
    Quoted passage
    To test if RB1 loss impacts cancer cells that already possess mutations disrupting the RB-pathway, we used CRISPR/Cas9 to create non-functional RB1 alleles.

    Discussion, paragraph beginning “To test if RB1 loss impacts cancer cells...”

Screenshots represent source records captured during evidence collection. Select one to view the recorded source content.

All source links

Statements for reports

The evidence statements recorded by the interpretation pipeline. They have not been reinterpreted by the page.

gnomAD v4.1

Absent from gnomAD v4.1.

gnomAD v2.1

Absent from gnomAD v2.1.

gnomAD-Canada

Not available in gnomAD-Canada v1.0.

ClinVar

This variant is absent from ClinVar.

In silico

SpliceAI predicts no significant splice impact for this variant (max delta score = 0.03).

Functional

OncoKB identified variant-specific curated literature and context relevant to functional review; biological-effect context: Likely Loss-of-function; curated oncogenicity label: Likely Oncogenic.

Somatic

This variant does not lie in a statistically significant hotspot. This variant has not previously been reported in somatic cancers (COSMIC).

Cancer Hotspots

This variant does not lie in a statistically significant hotspot.
