Variant interpretation report

SMAD4 c.463A>G, p.(Ser155Gly)

NM_005359.6:c.463A>G NP_005350.1:p.(Ser155Gly) Missense · exon 5 View identifiers
Classification
Uncertain significance

Variant description:

No variant summary was recorded for this case.

Five-step scale from benign to pathogenic. This variant is uncertain. Select a step to read what it means.

Uncertain.The recorded classification is uncertain significance.

In plain language

Gene-level background from the recorded interpretation.

About SMAD4

SMAD4 encodes a protein that helps transmit TGF-beta and bone morphogenetic protein signals to the nucleus, where it controls genes involved in cell growth and tissue development. It acts as a tumor suppressor and is associated with juvenile polyposis syndrome and hereditary hemorrhagic telangiectasia. Loss or alteration of SMAD4 is especially linked to pancreatic cancer and can also occur in colorectal and lung cancers.

LYFE Sciences is an AI system, and it can make mistakes. Criteria may be applied incorrectly, sources may be misread, and a confident-looking classification can still be wrong. Double-check every criterion and its underlying evidence before relying on any call.
01The reasoning

How it was classified

The recorded framework is Not recorded. The criteria and strengths shown below come from the saved assessment; this page does not recalculate the classification.

Recorded applied criteria

The applied criteria and their strengths are shown as assessed under the stated framework.

Pathogenic evidence criteria: 1 Benign evidence criteria: 0
Pathogenic criteria applied · 1
PM2Supporting
PM2 · supporting

Met at supporting strength: gnomAD v4.1 all-comers allele frequency 1.88e-06 (3/1,594,076) and popmax 2.23e-05 are both below the 0.0001 PM2 threshold.

Benign criteria applied · 0

No benign criterion marked as applied in the recorded assessment.

Recorded classification: Uncertain significance

VUS: PM2 (supporting) is the only applied criterion and does not satisfy a generic ACMG/AMP pathogenic or benign combination rule.

02The sources

Evidence at a glance

Evidence summaries and captured source records, where available. Missing entries should not be interpreted as negative findings.

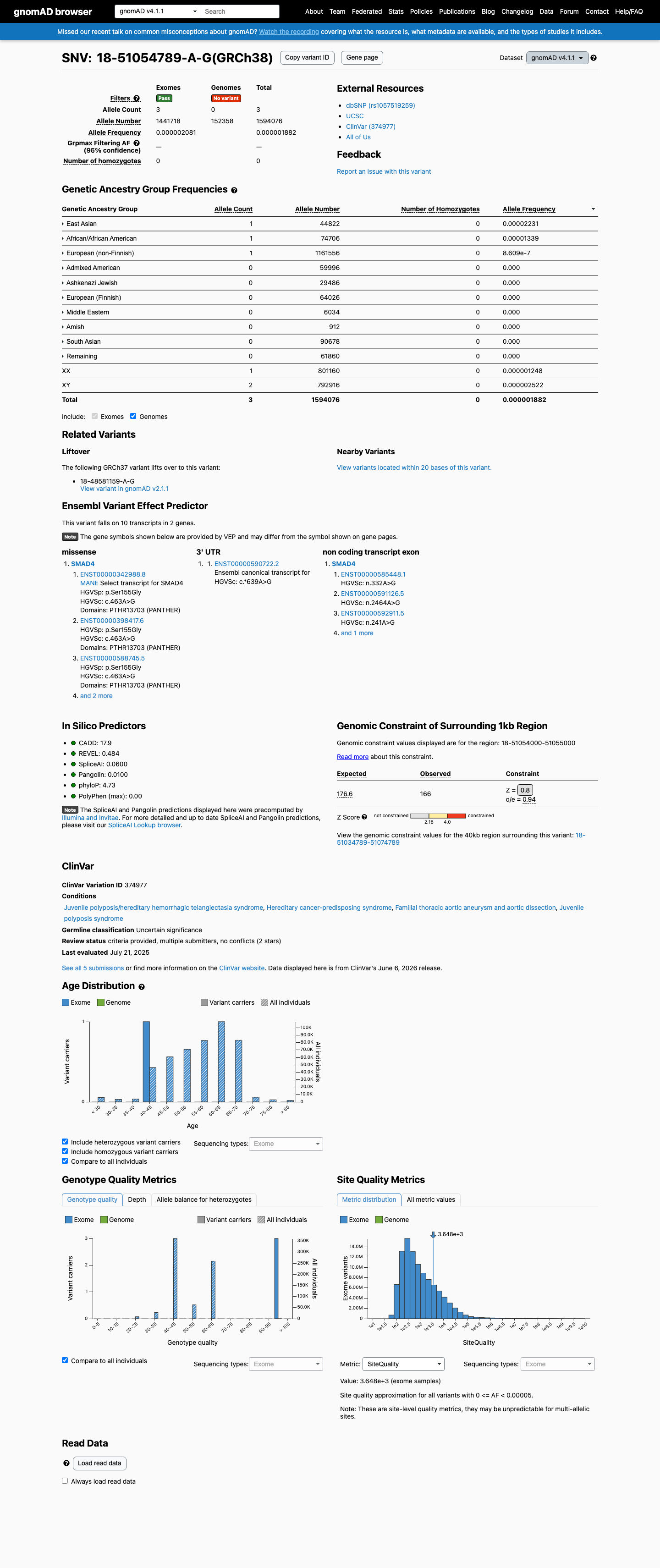

gnomAD v4.1
gnomAD v2.1
Population frequency
3 / 1,594,076 alleles

gnomAD v4.1: 3 / 1,594,076 alleles. Recorded AF 1.88197e-06. Recorded homozygote count 0.

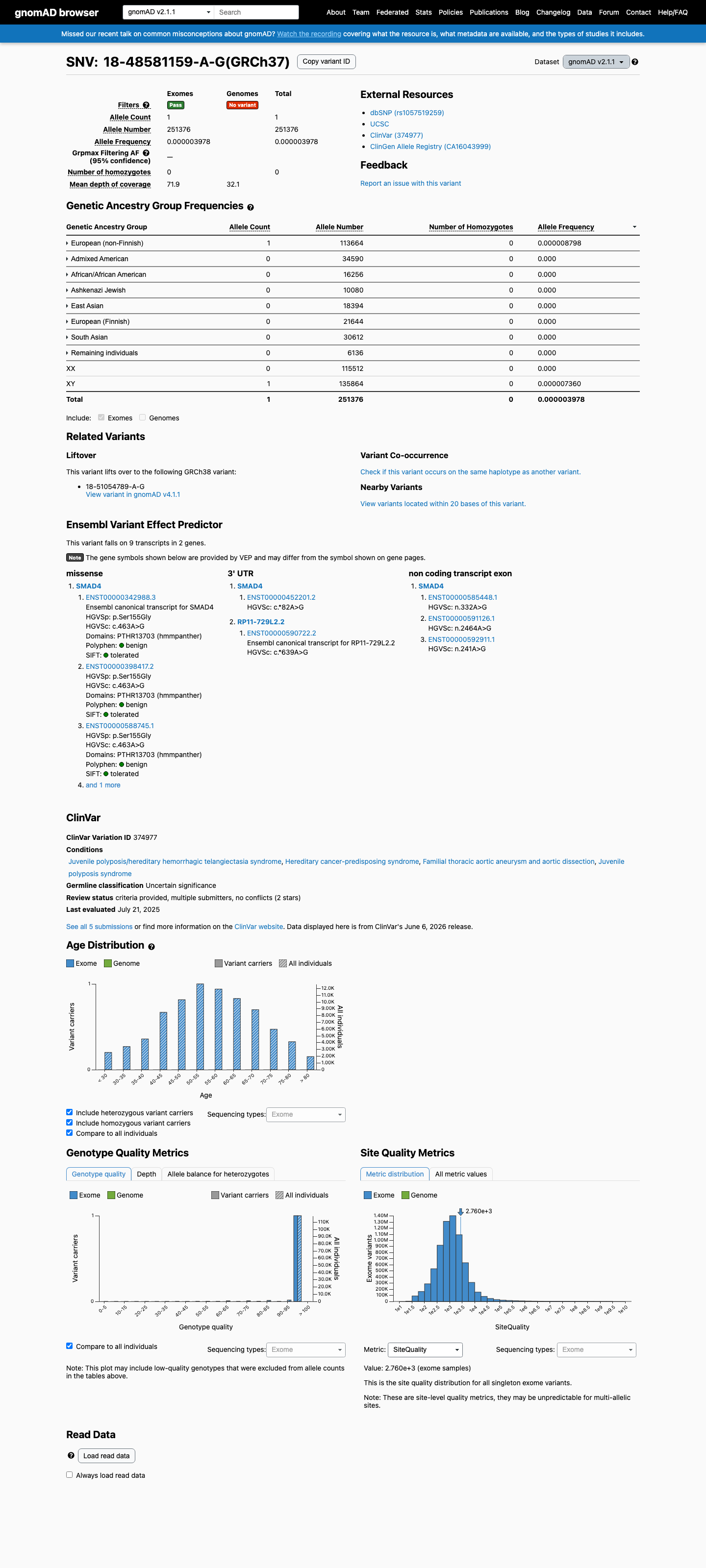

gnomAD v2.1

This variant is present in gnomAD v2.1 (AF= 3.9781e-06; MAF= 0.00040%, 1/251376 alleles, homozygotes = 0) and has highest observed frequency in the European (non-Finnish) population (AF= 8.79786e-06; MAF= 0.00088%, 1/113664 alleles, homozygotes = 0).

gnomAD-Canada

Not available in gnomAD-Canada v1.0.

No screenshot for this evidence

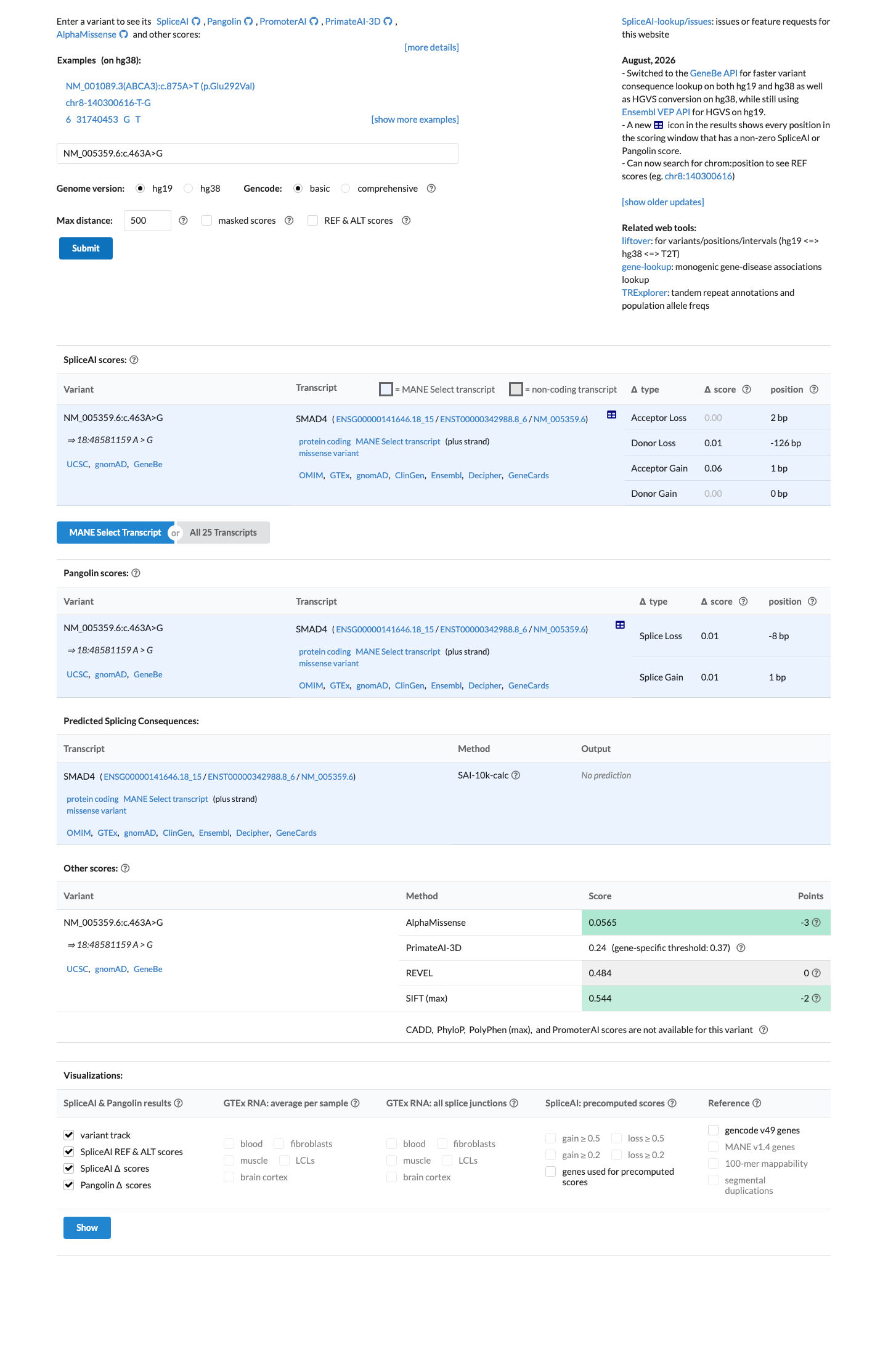

REVEL score
0.484 recorded score

Recorded REVEL score: 0.484. Refer to the recorded PP3/BP4 rationale for interpretation.

No listed criterion applied

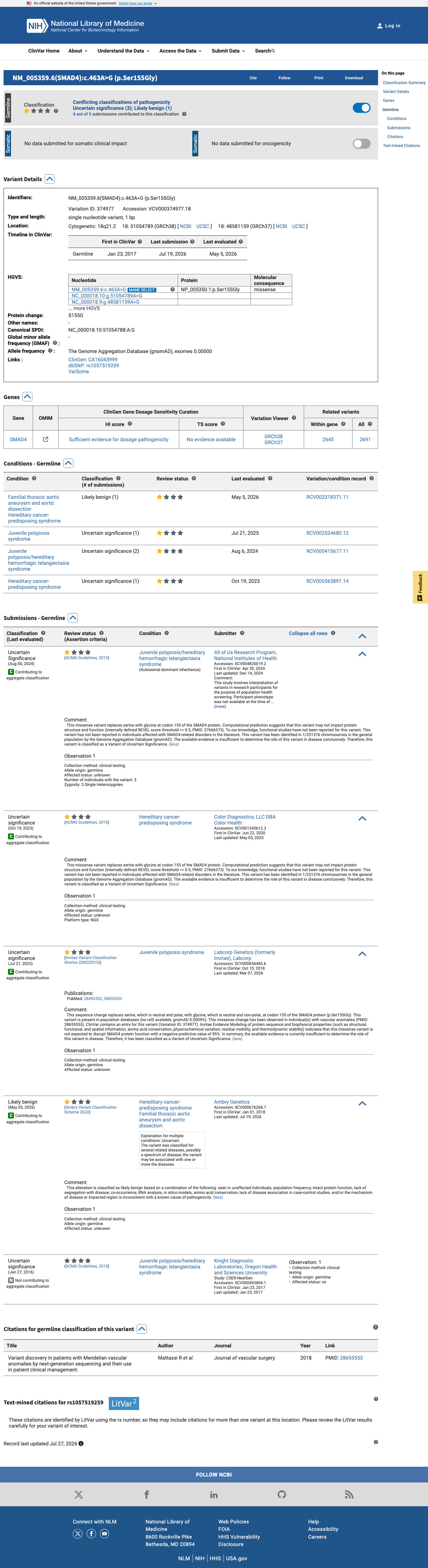

ClinVar submissions
5 reported laboratory submissions

3 Uncertain significance · 1 Uncertain Significance · 1 Likely benign.

Context only ClinVar ↗

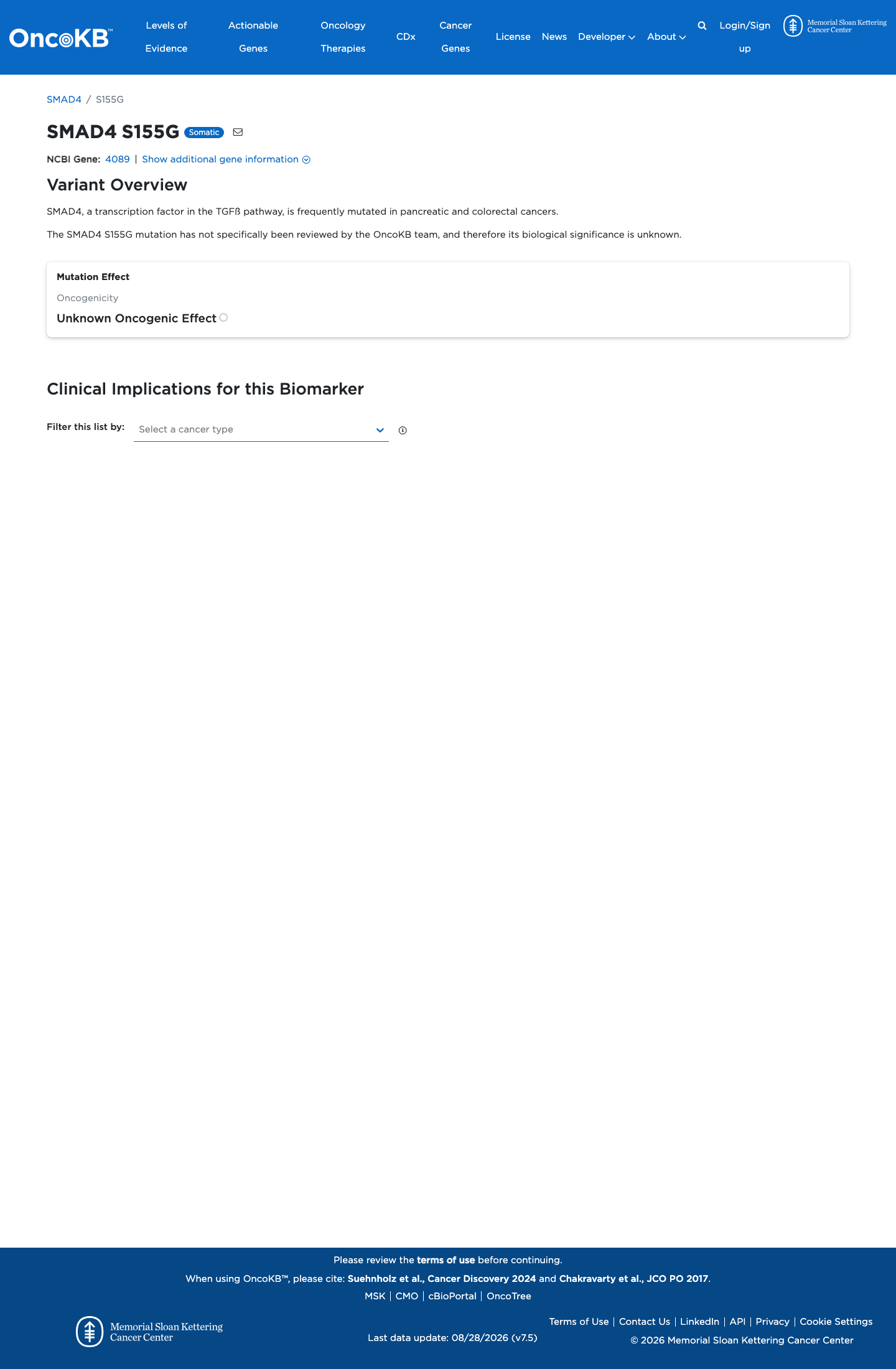

Functional evidence
Statement recorded

OncoKB did not identify variant-specific reviewed functional evidence for this variant; gene-level curated context is available for reviewer follow-up. SMAD4, a transcription factor in the TGFß pathway, is frequently mutated in pancreatic and colorectal cancers.

No listed criterion applied OncoKB ↗
COSMIC
Cancer Hotspots
Somatic evidence
No matching record reported

This variant has not previously been reported in somatic cancers (COSMIC).

Cancer Hotspots

This variant does not lie in a statistically significant hotspot.

For specialists

Technical detail

ACMG/AMP criteria under Not recorded, with the data and sources behind each one.

28 criteria with recorded statuses: 1 met · 14 not met · 8 not assessed · 5 not applicable. Open any row for the full reasoning, the rule and the evidence behind it.

Met Not met Not assessed Not applicable

No applicable SMAD4-specific VCEP or gene-specific framework was available, so generic ACMG/AMP criteria were considered.

The available case and exact-variant literature records contain no proband-parent testing, presumed de novo evidence, family segregation, informative meioses, or non-segregation data; all four requested criteria are not assessed.

Neither PS3 nor BS3 is met: no functional or mechanistic assay has tested SMAD4 c.463A>G (p.Ser155Gly), and the only SMAD4 functional assay identified (12-variant BMP/TGF-beta reporter panel, PMID:40835297) excludes this variant, so the functional evidence group contributes no pathogenic or benign weight to the final classification.

No SMAD4-specific ClinGen CSPEC/VCEP framework was available, so generic ACMG/AMP definitions were used where applicable.

PP5 and BP6 were not triggered because the exact ClinVar record has zero expert-panel submissions; non-expert laboratory assertions were excluded by rule.

The variant NM_005359.6:c.463A>G (SMAD4, NP_005350.1:p.(Ser155Gly); hg38 chr18:51054789 A>G) is extremely rare in every population dataset examined: gnomAD v4.1 all-comers AF 1.88197e-06 (3/1,594,076 alleles), gnomAD v2.1 all-comers AF 3.9781e-06 (1/251,376 alleles), and gnomAD v2.1 exomes-only non-cancer subset AF 4.2223e-06 (1/236,838 alleles), with the highest observed subpopulation frequency 2.23105e-05 (East Asian, v4.1).

Because of that rarity, PM2 is met at supporting strength (all values including the popmax proxy are <= 0.0001), while BA1 (>= 0.05), BS1 (>= 0.01) and BS2 (healthy adult observation with full early-age penetrance) are all not met.

No ClinGen CSPEC/VCEP or local gene-specific framework governs SMAD4 for this case, so the generic ACMG/AMP 2015 thresholds were applied and the all-comers gnomAD entries were the default source; the available non-cancer subsets were checked as a sensitivity analysis and give the same result.

Zero homozygotes were reported in every dataset, so no homozygous/healthy-adult frequency argument could be made in either direction.

Met · 1

PM2 SupportingMet at supporting strength: gnomAD v4.1 all-comers allele frequency 1.88e-06 (3/1,594,076) and popmax 2.23e-05 are both below the 0.0001 PM2 threshold. Details ▾Hide ▴
Reasoning

PM2 (absent from controls / extremely low frequency in population databases; Richards et al. 2015, PMID:25741868) applies. Under the supplied calibration, PM2 is applied at supporting strength with a threshold of <= 0.0001. NM_005359.6:c.463A>G (SMAD4 p.(Ser155Gly)) is present at a total allele frequency of 1.88197e-06 in gnomAD v4.1 all-comers (3/1,594,076 alleles, 0 homozygotes) and 3.9781e-06 in gnomAD v2.1 all-comers (1/251,376 alleles, 0 homozygotes); the exomes-only non-cancer subset of v2.1 gives 4.2223e-06 (1/236,838 alleles, 0 homozygotes) and the variant is absent from gnomAD v3.1 non-cancer genomes. Because the scrape did not return a popmax filtering allele frequency (grpmax_faf = null for v2.1 and v4.1), the highest observed subpopulation frequency was used as a conservative proxy: 2.231e-05 (1/44,822, East Asian, gnomAD v4.1) and 9.742e-06 in the v2.1 non-cancer exomes (European non-Finnish, 1/102,648). Even that most conservative ancestry-specific figure is below 0.0001, so the variant satisfies PM2 in every dataset and in every ancestry, including the non-cancer/exome-only subsets that would be the preferred controls for a hereditary cancer / vascular malformation disorder. No CSPEC/VCEP or local gene framework exists for SMAD4 in this case, so the all-comers gnomAD totals are the default source and confirm the result. Supporting rather than moderate strength is used per the supplied SVI recommendation to downgrade PM2 to supporting when the <= 0.0001 frequency threshold is applied. A ClinVar submission for this variant (ClinVar variation 374977) likewise cites population-database rarity.

Rule
frequency_very_low: max_population_af <= 0.0001 (PM2 supporting)
Evidence considered
  • gnomAD v4.1 all-comers: total AF 1.88197e-06 (3/1,594,076 alleles), homozygotes 0; exome AF 2.08085e-06 (3/1,441,718); genome cohort contributed 0 alleles.
  • gnomAD v2.1 all-comers (exome only): total AF 3.9781e-06 (1/251,376 alleles), homozygotes 0.
  • gnomAD v2.1 exomes-only NON_CANCER subset: AF 4.2223e-06 (1/236,838 alleles), homozygotes 0.
  • gnomAD v3.1 NON_CANCER (genomes): variant absent.
  • Highest observed subpopulation frequencies (popmax proxy): East Asian 2.23105e-05 (1/44,822, v4.1); European (non-Finnish) 9.74203e-06 (1/102,648, v2.1 non-cancer exomes).
  • Threshold applied verbatim from the published calibration block: PM2 supporting <= 0.0001, from the ClinGen SVI recommendation to downgrade PM2 to supporting (PMID:25741868).
  • ClinVar variation 374977 records a submission citing population-database rarity for this exact variant.
  • No ClinGen CSPEC/VCEP or local SMAD4 framework was found for this case, so no VCEP-specific non-cancer/exome-only source preference applies and the all-comers gnomAD totals are the default.
Still missing
  • gnomAD popmax filtering allele frequency was not returned (grpmax_faf = null); the highest observed subpopulation AF was substituted, which is a conservative upper bound and does not change the verdict.
  • gnomAD v4.1 non-cancer subset was not available, so the v2.1 exomes-only non-cancer subset served as the non-cancer control check (AF 4.2223e-06, well below threshold).
  • gnomAD-Canada v1.0 query failed (connection reset); its absence from the analysis cannot raise the frequency above the threshold.
Sources

Not met · 14 · evaluated, threshold not reached

PS1 Not met: no established pathogenic variant shares this p.Ser155Gly change, and c.463A>G is the only nucleotide change at codon 155 that can encode glycine. Details ▾Hide ▴
Reasoning

No SMAD4-specific VCEP/CSPEC framework exists, so the generic ACMG/AMP definition of PS1 was applied. PS1 requires that the same amino-acid change, here NP_005350.1:p.(Ser155Gly), has already been established as pathogenic regardless of the nucleotide change used to produce it. Codon 155 is AGT (Ser); the only single-nucleotide substitution within that codon that encodes glycine is c.463A>G itself, so no alternative nucleotide change can generate p.Ser155Gly. Consistent with this, no established pathogenic variant carrying this amino-acid change exists: the ClinVar record for this exact variant (NM_005359.6(SMAD4):c.463A>G, VCV000374977) is uncertain/conflicting with no expert-panel submission and no pathogenic assertion, and no other p.Ser155Gly-encoding allele was recovered from ClinVar. PS1 is therefore not met.

Evidence considered
  • The exact ClinVar record for this variant (NM_005359.6(SMAD4):c.463A>G (p.Ser155Gly), ClinVarID 374977) carries no pathogenic assertion: submissions are Uncertain significance (3 laboratories), Uncertain Significance (1 laboratory) and Likely benign (1 laboratory), with no expert-panel review.
  • Codon 155 is AGT (Ser), established from the ClinVar record NM_005359.6(SMAD4):c.465T>C (p.Ser155=), which is the synonymous third-position change of the same codon; the only single-base route from AGT to a glycine codon (GGT) is the first-position change c.463A>G.
  • A ClinVar search restricted to SMAD4 variants at residue 155 returned only c.463A>G (this variant), c.464G>A, c.464G>C, c.465T>A and the synonymous c.465T>C; none is assigned the same amino-acid change p.Ser155Gly.
  • PMID:25741868 supplies the ACMG/AMP definition of PS1 and notes that the impact of a missense change depends on conservation and location/context within the protein.
Still missing
  • No SMAD4 VCEP/CSPEC specification was available, so PS1 was assessed against the generic ACMG/AMP definition using ClinVar only.
Sources
PS3 Not met: no functional study tested c.463A>G, and the 12-variant SMAD4 reporter assay panel (PMID:40835297) excludes it. Details ▾Hide ▴
Reasoning

PS3 (Richards et al. 2015, PMID:25741868) requires variant-specific functional evidence that the allele has a damaging effect on protein function or splicing. No functional assay has tested NM_005359.6:c.463A>G (NP_005350.1:p.(Ser155Gly)). The only SMAD4-specific functional assay identified is Despas et al. 2025 (J Med Genet 62(12):741-749, PMID:40835297), which generated 12 SMAD4 variants by site-directed mutagenesis and tested their capacity to activate BMP- and TGF-beta-dependent luciferase reporters in a SMAD4-non-expressing cell line; its variant table lists c.303G>T, c.380G>T, c.1051G>A, c.1052A>G, c.1052A>T, c.1074dup, c.1081C>T, c.1082G>C, c.1245_1248del, c.1333C>T, c.1571G>T and c.1611_1613del, and c.463A>G is not among them. That study therefore neither tested this variant nor performed a saturation/tiling characterization of a residue range that includes position 155, so it cannot support PS3 even at supporting strength. OncoKB returns 'Unknown Oncogenic Effect' with no variant-specific reviewed functional evidence, and the ClinVar record carries no functional assay submission. PS3 is not met at any strength; it is recorded as not_met rather than not_applicable because functional evidence is a legitimate, currently unsatisfied evidence type for this missense variant.

Rule
PS3 requires variant-specific functional evidence of a damaging effect on protein function or splicing; a study-based range may only substitute for the exact variant when that study itself systematically assayed the range spanning the variant position (generic ACMG/AMP 2015, PMID:25741868).
Evidence considered
  • The case variant is NM_005359.6:c.463A>G, encoding the missense substitution NP_005350.1:p.(Ser155Gly) in SMAD4.
  • Despas et al. 2025 (J Med Genet 62(12):741-749, PMID:40835297) developed a SMAD4 cell-based functional assay in a cell line that does not express SMAD4, testing 12 variants generated by site-directed mutagenesis for their capacity to activate BMP- and TGF-beta-dependent luciferase reporters; every expressed variant caused loss of function, and MH2-domain variants failed to hetero-oligomerise with other SMADs.
  • The variants actually assayed in that study are c.303G>T (p.Trp101Cys), c.380G>T (p.Cys127Phe), c.1051G>A (p.Asp351Asn), c.1052A>G (p.Asp351Gly), c.1052A>T (p.Asp351Val), c.1074dup (p.Gly359ArgfsTer19), c.1081C>T (p.Arg361Cys), c.1082G>C (p.Arg361Pro), c.1245_1248del (p.Asp415GlufsTer20), c.1333C>T (p.Arg445Ter), c.1571G>T (p.Trp524Leu) and c.1611_1613del (p.Asp537del); c.463A>G is absent, and the paper claims no systematic coverage of a residue range including position 155.
  • OncoKB lists this variant as 'Unknown Oncogenic Effect' and provides no variant-specific reviewed functional evidence; only gene-level SMAD4 context (TGF-beta pathway transcription factor, frequently mutated in pancreatic and colorectal cancer) is available.
  • Two ClinVar submissions that provided criteria state 'to our knowledge, functional studies have not been reported for this variant' (All of Us Research Program, SCV004820019; Color Diagnostics/Color Health, SCV001345612).
  • The gene-level context artifact (pvs1_gene_context) is what surfaced the SMAD4 functional-assay publication from the French HHT cohort (PMID:40835297); its abstract and open-access full text (PMC12703305) were then reviewed directly for variant-specific data.
  • No primary functional or mechanistic publication reporting activity for p.(Ser155Gly) was found in the case literature set; PS3 requires variant-specific data and cannot be met at any strength from gene-level, domain-level, or nearby-residue inference alone.
Still missing
  • No functional assay reports NM_005359.6:c.463A>G (NP_005350.1:p.(Ser155Gly)) directly; the available SMAD4 reporter-assay panel (PMID:40835297, 12 variants) does not include this variant.
  • No SMAD4 study provides saturation mutagenesis, tiling, or systematic truncation data covering residue 155, so a characterized range spanning the variant position cannot be invoked.
  • No SMAD4 RNA/splicing functional data specific to this variant.
Sources
PM1 Not met: residue 155 is not a statistically significant mutational hotspot and no approved SMAD4 critical-domain table or pathogenic codon-155 variant places it in a functional domain. Details ▾Hide ▴
Reasoning

No SMAD4 VCEP/CSPEC specification or approved critical-functional-domain table was available (the domain-table collection contains no entry for this gene), so generic PM1 was applied. PM1 requires the variant to lie in a mutational hotspot or in a critical, well-established functional domain without benign variation. Residue 155 is not a statistically significant mutational hotspot: the Cancer Hotspots query for SMAD4 S155 returned no hotspot row, and the COSMIC search for c.463A>G found no somatic record. No residue-level source in the case materials assigns codon 155 to a critical SMAD4 functional domain, and residue 155 lies in the linker region between the MH1 and MH2 domains rather than in the MH2 domain where SMAD4 disease-causing missense variants cluster. Finally, the residue shows no pathogenic enrichment: every SMAD4 codon-155 variant on record (p.Ser155Gly, p.Ser155Asn, p.Ser155Thr, p.Ser155Arg) is Uncertain significance and the synonymous p.Ser155= is Likely benign. PM1 is therefore not met.

Evidence considered
  • Cancer Hotspots analysis of SMAD4 S155 returned no statistically significant hotspot row (sentence: 'This variant does not lie in a statistically significant hotspot').
  • COSMIC search for SMAD4 c.463A>G returned no somatic record.
  • ClinVar residue-level data: c.463A>G p.Ser155Gly, c.464G>A p.Ser155Asn, c.464G>C p.Ser155Thr and c.465T>A p.Ser155Arg are all Uncertain significance, and c.465T>C p.Ser155= is Likely benign - no pathogenic variant and no benign-variation-free hotspot at this codon.
  • Established SMAD4 protein architecture places residue 155 in the linker region between the N-terminal MH1 domain and the C-terminal MH2 domain, where germline SMAD4 missense variants of clinical interest reside.
  • PMID:25741868 defines PM1 and notes that a missense change's impact depends on the location and context within the protein sequence.
Still missing
  • No SMAD4 VCEP/CSPEC critical-functional-domain table was available, so domain membership was judged from hotspot significance, residue-level variant data and established SMAD4 protein architecture rather than from an authoritative domain list.
Sources
PM5 Not met: the three alternative codon-155 missense variants (p.Ser155Asn, p.Ser155Thr, p.Ser155Arg) are all classified Uncertain significance, so no pathogenic same-residue comparator exists. Details ▾Hide ▴
Reasoning

No SMAD4 VCEP/CSPEC framework exists, so generic PM5 was applied. PM5 requires a different missense change at the same amino-acid residue to have been established as pathogenic. The automated PM5 candidate collection returned no candidates because classic same-residue semantics could not be confirmed, so the residue was checked directly. Three alternative missense variants at codon 155 exist on record - NM_005359.6(SMAD4):c.464G>A (p.Ser155Asn), c.464G>C (p.Ser155Thr) and c.465T>A (p.Ser155Arg) - and all three are classified Uncertain significance; the synonymous codon-155 change c.465T>C (p.Ser155=) is Likely benign. No pathogenic or likely pathogenic missense change at residue 155 has been established, so the prerequisite comparator for PM5 does not exist and PM5 is not met.

Evidence considered
  • The PM5 candidate-collection artifact found zero same-residue candidates and recorded that automated harvesting was skipped because classic same-residue PM5 semantics could not be confirmed safely.
  • ClinVar records for alternative codon-155 missense variants: VCV000484802 c.464G>A p.Ser155Asn (Uncertain significance, multiple submitters, no conflicts), VCV000861894 c.464G>C p.Ser155Thr (Uncertain significance, multiple submitters, no conflicts) and VCV0003238417 c.465T>A p.Ser155Arg (Uncertain significance, single submitter).
  • The same codon also carries the synonymous change c.465T>C p.Ser155= (Likely benign, single submitter), confirming that residue 155 tolerates variation and that no pathogenic missense change has been established there.
  • No publication in the case materials reports a pathogenic SMAD4 missense variant at residue 155; both reviewed full-text papers explicitly state the variant is not reported.
Sources
clinvar ↗pm5_candidates
PP2 Not met: although SMAD4 is missense-constrained (gnomAD mis_z 6.18), only 29 of 371 pathogenic/likely pathogenic ClinVar records (8%) are missense, so missense is not a common mechanism. Details ▾Hide ▴
Reasoning

No SMAD4 VCEP/CSPEC framework exists, so generic PP2 was applied. PP2 requires both a low rate of benign missense variation in the gene and that missense variants are a common mechanism of disease. The first component is satisfied: gnomAD gene-level constraint for SMAD4 is strongly missense-constrained (mis_z 6.18, oe_mis 0.45, pLI ~1.0), well beyond the conventional missense Z significance value. The second component fails. Among 371 SMAD4 ClinVar records classified Pathogenic, Likely pathogenic or Pathogenic/Likely pathogenic, 238 (64%) are truncating (frameshift/nonsense/stop-lost), 33 (9%) are splice-site variants and only 29 (8%) are missense, so missense variants are a minority mechanism rather than a common one. The case gene-context finding likewise supports a loss-of-function germline disease mechanism for SMAD4. Because the missense-as-common-mechanism requirement is not met, PP2 is not applied.

Evidence considered
  • gnomAD gene-level constraint for SMAD4 (GRCh38): mis_z = 6.182, oe_mis = 0.450, pLI = 1.000, indicating strong constraint against missense variation; the conventional missense Z significance threshold (>3.09) is from Samocha et al. 2014, Nat Genet (PMID:25086666).
  • ClinVar SMAD4 classification tally (371 Pathogenic/Likely pathogenic records): 238 truncating, 33 splice donor/acceptor, 29 missense - i.e. missense accounts for only ~8% of established disease-causing SMAD4 variants.
  • The case gene-level PVS1 context records that targeted germline literature supports a loss-of-function SMAD4 disease mechanism (HHT/juvenile polyposis), i.e. disease acts predominantly through loss of function rather than through recurrent missense substitutions.
  • No SMAD4 VCEP or CSPEC exists, so PP2 was assessed using the generic ACMG/AMP 2015 definition (PMID:25741868).
Sources
PP3 Not met: missense REVEL 0.484 is below the ClinGen SVI PP3 supporting threshold of >=0.644. Details ▾Hide ▴
Reasoning

The variant is a missense substitution, NP_005350.1:p.(Ser155Gly), so the generic fallback requires the missense-specific REVEL path and does not substitute the splice-path SpliceAI result. REVEL is 0.484. This is below the supplied ClinGen SVI PP3 supporting threshold of >=0.644 (moderate >=0.773; strong >=0.932). BayesDel is not usable because no generic ACMG-strength calibration is established. Therefore PP3 is not met.

Rule
Generic ClinGen SVI missense calibration: REVEL >=0.644 for PP3 supporting, with higher thresholds for moderate and strong PP3.
Evidence considered
  • The case variant is NM_005359.6:c.463A>G, encoding the missense change NP_005350.1:p.(Ser155Gly).
  • The local REVEL predictor score is 0.484; the supplied ClinGen SVI calibration assigns PP3 supporting at REVEL >=0.644, so this score does not meet PP3.
  • The supplied ClinGen SVI REVEL calibration thresholds are PP3 supporting >=0.644, moderate >=0.773, and strong >=0.932 (Pejaver et al. 2022, PMID:36413997); 0.484 does not meet any PP3 threshold.
  • The generic fallback explicitly uses one mechanism matching variant type: REVEL for missense variants, rather than substituting the splice-path SpliceAI result; BayesDel has no established generic ACMG-strength calibration and is not usable.
Sources
revelgeneric_acmg_combination_rulesPMID:25741868 ↗
PP5 Not met: the exact ClinVar record has zero expert-panel submissions and no Pathogenic or Likely pathogenic expert-panel classification. Details ▾Hide ▴
Reasoning

PP5 is restricted here to an exact-variant ClinVar expert-panel classification of Pathogenic or Likely pathogenic. The exact ClinVar record has zero expert-panel submissions; its classifications are uncertain significance or likely benign from individual laboratories. These submissions cannot trigger PP5.

Rule
PP5 applies only when an exact-variant ClinVar expert panel classifies the variant as Pathogenic or Likely pathogenic; no applicable SMAD4-specific VCEP rule was available.
Evidence considered
  • ClinVar submission audit: exact match to NM_005359.6(SMAD4):c.463A>G (p.Ser155Gly), expert-panel submissions = 0; available laboratory classifications are uncertain significance and likely benign.
  • Under the governing rule for this adjudication, ordinary laboratory submissions, aggregate labels, and non-expert assertions do not trigger PP5.
Sources
BA1 Not met: the highest gnomAD subpopulation allele frequency, 2.23e-05, is about three orders of magnitude below the 0.05 BA1 stand-alone threshold. Details ▾Hide ▴
Reasoning

BA1 (stand-alone benign; Richards et al. 2015, PMID:25741868) requires an allele frequency of at least 0.05. NM_005359.6:c.463A>G (SMAD4, NP_005350.1:p.(Ser155Gly), hg38 chr18:51054789 A>G / hg37 18:48581159 A>G) is essentially absent from all population datasets examined. gnomAD v2.1 all-comers: total AF 3.978e-06 (1/251,376 alleles), exome-only, 0 homozygotes. gnomAD v4.1 all-comers: total AF 1.882e-06 (3/1,594,076 alleles), 0 homozygotes. The v2.1 exomes-only non-cancer subset gives AF 4.222e-06 (1/236,838 alleles). The highest frequency in any subpopulation is 2.231e-05 (1/44,822 alleles, East Asian, gnomAD v4.1); within the v2.1 non-cancer exomes the highest subpopulation frequency is 9.742e-06 (1/102,648, European non-Finnish). Every one of these values is roughly three orders of magnitude below 0.05, so the stand-alone benign frequency threshold is not approached in any ancestry, in either all-comers or non-cancer data. No ClinGen VCEP/CSPEC specification or local gene-specific framework exists for SMAD4 in this case (framework_mode = generic_acmg; final_classification_framework.found = false), so the generic ACMG/AMP 2015 frequency thresholds apply rather than any VCEP-specific non-cancer or exome-only source preference. The ACMG/AMP 2015 BA1 threshold of 0.05 was taken verbatim from the published calibration values supplied for this assessment and is attributable to Richards et al. 2015 (PMID:25741868).

Rule
frequency_stand_alone_benign: max_population_af >= 0.05
Evidence considered
  • gnomAD v2.1 (all-comers, exome): total AF 3.9781e-06 (1/251,376 alleles), exome homozygotes = 0; highest subpopulation European (non-Finnish) AF 8.79786e-06 (1/113,664).
  • gnomAD v4.1 (all-comers): total AF 1.88197e-06 (3/1,594,076 alleles), total homozygotes = 0; genome cohort contributed 0 alleles (genome_an = 0); highest subpopulation East Asian AF 2.23105e-05 (1/44,822).
  • gnomAD v2.1 exomes-only NON_CANCER subset: AF 4.2223e-06 (1/236,838 alleles), 0 homozygotes; highest subpopulation European (non-Finnish) AF 9.74203e-06 (1/102,648).
  • gnomAD v3.1 NON_CANCER (genomes): variant absent.
  • Threshold applied verbatim from the published calibration block: BA1 stand-alone >= 0.05, attributed to Richards et al. 2015 (PMID:25741868).
  • No ClinGen CSPEC/VCEP or local gene-specific framework governs SMAD4 for this case, so the generic ACMG/AMP 2015 frequency rules were used instead of a VCEP-specified non-cancer/exome-only source.
Still missing
  • gnomAD v4.1 non-cancer subset was not retrieved (only the v2.1 exomes-only non-cancer subset and the v3.1 non-cancer genomes query were available); this does not affect the verdict because the all-comers v4.1 frequency (1.88e-06) and the v2.1 non-cancer frequency (4.22e-06) are both far below 0.05.
  • gnomAD popmax filtering allele frequency (grpmax FAF) was not returned by the scrape (grpmax_faf = null for both v2.1 and v4.1), so the highest observed subpopulation AF was used as a conservative proxy for popmax.
  • gnomAD-Canada v1.0 query failed with a connection reset and returned no data; it would only add a rare-variant denominator and cannot plausibly reach 0.05.
Sources
BS1 Not met: the highest observed allele frequency, 2.23e-05, is more than two orders of magnitude below the 0.01 BS1 threshold (Whiffin 2017). Details ▾Hide ▴
Reasoning

BS1 (strong benign; allele frequency greater than expected for the disorder) requires an allele frequency of at least 0.01 under the generic SVI default applied here, since no VCEP- or gene-derived threshold exists for SMAD4 in this case. NM_005359.6:c.463A>G (SMAD4 p.(Ser155Gly)) has a maximum observed allele frequency of 2.231e-05 (1/44,822 alleles, East Asian, gnomAD v4.1 all-comers) and 9.742e-06 in the highest subpopulation of the v2.1 exomes-only non-cancer subset (European non-Finnish, 1/102,648); the all-comers totals are 1.882e-06 (v4.1) and 3.978e-06 (v2.1), with 0 homozygotes throughout. All values are more than two orders of magnitude below 0.01, so the variant is far rarer than any plausible benign-frequency expectation, including for a relatively common dominant disorder such as hereditary haemorrhagic telangiectasia (population prevalence on the order of 1 in 5,000-10,000). The threshold used (0.01, generic SVI default; per-gene derivation preferred) is attributable to Whiffin et al. 2017 (PMID:28518168) as supplied in the published calibration values; a per-gene derivation was not possible here because no calibrated SMAD4-specific framework was available in this case.

Rule
frequency_strong_benign: max_population_af >= 0.01
Evidence considered
  • gnomAD v2.1 all-comers AF 3.9781e-06 (1/251,376, 0 homozygotes); highest subpopulation NFE 8.79786e-06.
  • gnomAD v4.1 all-comers AF 1.88197e-06 (3/1,594,076, 0 homozygotes); highest subpopulation East Asian 2.23105e-05.
  • gnomAD v2.1 exomes-only NON_CANCER AF 4.2223e-06 (1/236,838, 0 homozygotes); highest subpopulation NFE 9.74203e-06.
  • Threshold applied verbatim from the published calibration block: BS1 strong >= 0.01, generic SVI default; per-gene derivation preferred (Whiffin et al. 2017, PMID:28518168).
  • Context: SMAD4-related disease (juvenile polyposis syndrome / hereditary haemorrhagic telangiectasia) is autosomal dominant with incomplete, age-related penetrance, so the expected benign-frequency ceiling is far above the observed 2.23e-05.
Still missing
  • No SMAD4-specific (VCEP-derived) BS1 frequency threshold exists in this case, so the generic 0.01 SVI default was used; a gene-derived threshold based on JPS/HHT prevalence and penetrance could be lower, but even a threshold an order of magnitude below 0.01 would not be reached by an AF of 2.23e-05.
  • gnomAD popmax filtering allele frequency was not returned (grpmax_faf = null); the highest observed subpopulation AF was used instead.
Sources
BS2 Not met: zero homozygotes for c.463A>G in any gnomAD dataset (v2.1 and v4.1), and SMAD4 disease is not fully penetrant at an early age. Details ▾Hide ▴
Reasoning

BS2 requires the variant to be observed in a healthy adult individual with full penetrance expected at an early age (homozygous for a recessive, heterozygous for a dominant, or hemizygous for an X-linked disorder). Across every population dataset examined, NM_005359.6:c.463A>G (SMAD4 p.(Ser155Gly)) has zero homozygotes: gnomAD v2.1 all-comers (1/251,376 alleles, homozygotes = 0), gnomAD v2.1 exomes-only non-cancer subset (1/236,838, homozygotes = 0), gnomAD v4.1 all-comers (3/1,594,076, homozygotes = 0), and the variant is absent from gnomAD v3.1 non-cancer genomes. There is therefore no homozygous or biallelic observation that could constitute BS2 evidence. This is consistent with SMAD4-related disease being an autosomal dominant, incompletely and age-dependently penetrant condition (juvenile polyposis syndrome / hereditary haemorrhagic telangiectasia), for which BS2 is not an appropriate criterion even if adult heterozygous carriers exist in the population, because full early-age penetrance is not expected.

Rule
observed_homozygote_or_fully_penetrant_healthy_adult
Evidence considered
  • gnomAD v2.1 all-comers: 1 allele / 251,376 (AF 3.9781e-06), homozygotes 0; all subpopulation homozygote counts 0.
  • gnomAD v2.1 exomes-only NON_CANCER: 1 allele / 236,838 (AF 4.2223e-06), homozygotes 0.
  • gnomAD v4.1 all-comers: 3 alleles / 1,594,076 (AF 1.88197e-06), total homozygotes 0; all subpopulation homozygote counts 0.
  • gnomAD v3.1 NON_CANCER (genomes): variant absent, so no homozygote observation possible.
  • Criterion definition and structure (Richards et al. 2015, PMID:25741868): BS2 requires observation in a healthy adult with penetrance expected at an early age.
  • Disease context: SMAD4 germline disease is autosomal dominant with reduced, age-related penetrance, so a heterozygous adult observation would not satisfy BS2's full-penetrance premise.
Still missing
  • gnomAD-Canada v1.0 returned no data (connection reset), so an additional genome cohort could not be checked for homozygotes; all retrieved cohorts report 0 homozygotes.
  • Individual-level age and phenotype of the rare heterozygous gnomAD carriers were not available, so a formal BS2 healthy-adult check for heterozygotes could not be performed; this is not decisive because SMAD4-related disease lacks the full early-age penetrance BS2 requires.
Sources
BS3 Not met: no functional assay tested c.463A>G, so preserved BMP/TGF-beta signalling for p.(Ser155Gly) is unproven, not demonstrated. Details ▾Hide ▴
Reasoning

BS3 (Richards et al. 2015, PMID:25741868) requires functional evidence - or a validated functional assay with established controls - showing that the variant has no damaging effect on protein function or splicing. No functional assay has tested NM_005359.6:c.463A>G (NP_005350.1:p.(Ser155Gly)). The SMAD4 reporter assay by Despas et al. 2025 (PMID:40835297) is the only SMAD4 functional assay identified, and its 12-variant panel (c.303G>T, c.380G>T, c.1051G>A, c.1052A>G, c.1052A>T, c.1074dup, c.1081C>T, c.1082G>C, c.1245_1248del, c.1333C>T, c.1571G>T, c.1611_1613del) does not include c.463A>G. OncoKB reports 'Unknown Oncogenic Effect' with no variant-specific functional data, and COSMIC and Cancer Hotspots contain no record of this variant. The absence of an assay is not evidence of preserved function, and no reviewed source demonstrates normal BMP/TGF-beta signalling for p.(Ser155Gly). BS3 is therefore not met at any strength, including supporting.

Rule
BS3 requires functional evidence (validated assay, with controls) showing no damaging effect of the variant on protein function or splicing (generic ACMG/AMP 2015, PMID:25741868).
Evidence considered
  • The case variant is NM_005359.6:c.463A>G, encoding the missense substitution NP_005350.1:p.(Ser155Gly) in SMAD4.
  • No functional assay in the case literature set tested this variant; the only SMAD4 functional assay identified (Despas et al. 2025, PMID:40835297, luciferase reporter assays in a SMAD4-non-expressing cell line) assayed 12 different SMAD4 variants and did not include c.463A>G.
  • Because the variant was not assayed, that study provides no benign-direction evidence for p.(Ser155Gly), and its finding that all 12 tested variants caused loss of function applies only to those variants.
  • OncoKB returns 'Unknown Oncogenic Effect' with no variant-specific reviewed functional evidence; COSMIC contains no record of this variant and Cancer Hotspots reports no significant residue-level hotspot, so no somatic functional inference supports a benign effect.
  • The ClinVar record (variation 374977) contains no submission reporting functional assay data for this variant; one submitter classified it Likely benign, but a classification is not functional evidence and was not used to infer this criterion.
  • BS3 is not met at any strength: no source shows that p.(Ser155Gly) retains normal function, and the criterion cannot be satisfied by the mere absence of functional testing.
Still missing
  • No functional assay demonstrates normal or near-normal BMP/TGF-beta signalling for NP_005350.1:p.(Ser155Gly); lack of testing is not evidence of a benign functional effect.
  • No validated SMAD4 assay with published benign and pathogenic controls has been applied to this variant, so no benign-direction functional calibration is available.
Sources
BP1 Not met: 29 of 371 pathogenic/likely pathogenic SMAD4 ClinVar records are missense, so SMAD4 disease is not caused by truncating variants alone and BP1 does not apply. Details ▾Hide ▴
Reasoning

No SMAD4 VCEP/CSPEC framework exists, so generic BP1 was applied. BP1 requires a gene in which primarily truncating variants are known to cause disease, i.e. a gene where missense variation is not an established pathogenic mechanism. SMAD4 pathogenicity is indeed truncated-variant-predominant - 238 of 371 (64%) Pathogenic/Likely pathogenic ClinVar records are frameshift/nonsense/stop-lost and a further 33 (9%) are splice-site variants - but pathogenic missense variants are nonetheless an established cause of SMAD4-associated disease: 29 Pathogenic/Likely pathogenic ClinVar records are missense, they cluster in the SMAD4 MH2 domain, and a dedicated cell-based functional assay has been developed specifically to classify SMAD4 missense variants from an HHT cohort (Despas et al., J Med Genet 2025, PMID:40835297). Because missense variants are a recognised disease mechanism for this gene, it is not a gene for which primarily truncating variants alone cause disease, and BP1 is not applied. Note also that this variant lies in the linker region rather than in the missense-rich MH2 domain.

Evidence considered
  • ClinVar SMAD4 classification tally (371 Pathogenic/Likely pathogenic records): 238 truncating (frameshift/nonsense/stop-lost), 33 splice donor/acceptor, 29 missense - showing a truncated-variant-predominant but not truncating-exclusive spectrum.
  • SMAD4 pathogenic missense variants are documented in the MH2 domain and cause hereditary haemorrhagic telangiectasia / juvenile polyposis, so missense is a recognised pathogenic mechanism for this gene.
  • A cell-based functional assay was developed specifically to characterise SMAD4 missense variants from the French HHT cohort (Despas et al., J Med Genet 2025, PMID:40835297), confirming that missense variant classification is an active, mechanistically relevant question for SMAD4.
  • The case gene-context finding supports a loss-of-function germline mechanism for SMAD4, but does not establish that truncating variants are the only disease-causing variant class.
Sources
clinvar ↗pvs1_gene_context
BP4 Not met: missense REVEL 0.484 exceeds the ClinGen SVI BP4 supporting threshold of <=0.29. Details ▾Hide ▴
Reasoning

The variant is a missense substitution, NP_005350.1:p.(Ser155Gly), so the generic fallback requires the missense-specific REVEL path and does not substitute the splice-path SpliceAI result. REVEL is 0.484. This is above the supplied ClinGen SVI BP4 supporting threshold of <=0.29 (moderate <=0.183; strong <=0.016). BayesDel is not usable because no generic ACMG-strength calibration is established. Therefore BP4 is not met.

Rule
Generic ClinGen SVI missense calibration: REVEL <=0.29 for BP4 supporting, with lower thresholds for moderate and strong BP4.
Evidence considered
  • The case variant is NM_005359.6:c.463A>G, encoding the missense change NP_005350.1:p.(Ser155Gly).
  • The local REVEL predictor score is 0.484; the supplied ClinGen SVI calibration assigns BP4 supporting at REVEL <=0.29, so this score does not meet BP4.
  • The supplied ClinGen SVI REVEL calibration thresholds are BP4 supporting <=0.29, moderate <=0.183, and strong <=0.016 (Pejaver et al. 2022, PMID:36413997); 0.484 does not meet any BP4 threshold.
  • The generic fallback explicitly uses one mechanism matching variant type: REVEL for missense variants, rather than substituting the splice-path SpliceAI result; BayesDel has no established generic ACMG-strength calibration and is not usable.
Sources
revelgeneric_acmg_combination_rulesPMID:25741868 ↗
BP6 Not met: the exact ClinVar Likely benign assertion is from a single laboratory, with zero expert-panel submissions. Details ▾Hide ▴
Reasoning

BP6 is restricted here to an exact-variant ClinVar expert-panel classification of Benign or Likely benign. The exact ClinVar record has zero expert-panel submissions; its Likely benign classification is from a single clinical laboratory. That non-expert assertion cannot trigger BP6.

Rule
BP6 applies only when an exact-variant ClinVar expert panel classifies the variant as Benign or Likely benign; no applicable SMAD4-specific VCEP rule was available.
Evidence considered
  • ClinVar submission audit: exact match to NM_005359.6(SMAD4):c.463A>G (p.Ser155Gly), expert-panel submissions = 0; one clinical laboratory submitted Likely benign.
  • Under the governing rule for this adjudication, a non-expert laboratory Likely benign assertion cannot trigger BP6.
Sources

Not assessed · 8 · no assessment recorded

PS2 Not assessed: no documented proband-parent testing or confirmed de novo result is available for NM_005359.6:c.463A>G. Details ▾Hide ▴
Reasoning

No confirmed de novo observation is documented for NM_005359.6:c.463A>G (NP_005350.1:p.(Ser155Gly)). The available evidence does not identify the proband, parental genotypes, validated maternity and paternity, or testing of both parents; therefore PS2 cannot be applied.

Evidence considered
  • The case records identify the variant as NM_005359.6:c.463A>G (NP_005350.1:p.(Ser155Gly)) but provide no proband-parent trio results or confirmed de novo finding.
  • The exact-variant literature review found no paper reporting a patient observation or parental testing for this variant.
Still missing
  • Proband identity and phenotype are not documented.
  • Maternal and paternal genotypes are not documented.
  • Validated maternity and paternity are not documented.
  • Testing method, coverage, and assay sensitivity for parental samples are not documented.
PS4 Not assessed: no exact-variant case-control enrichment, affected-case count, odds ratio, or statistically supported excess was available. Details ▾Hide ▴
Reasoning

No qualifying case-control enrichment analysis, affected-case count, odds ratio, or statistically supported excess of this exact variant was identified. The exact-variant ClinVar record contains only non-expert laboratory submissions, and the reviewed paper extract for PMID:28655553 explicitly states that NM_005359.6:c.463A>G/p.(S155G) was not reported. Generic PS4 requires significantly increased prevalence in affected individuals compared with controls; the available evidence is insufficient to assess that requirement.

Rule
Generic PS4: significantly increased prevalence of the exact variant in affected individuals compared with appropriate controls; no applicable SMAD4-specific VCEP rule was available.
Evidence considered
  • The exact ClinVar record is supported only by non-expert laboratory submissions and does not provide case-control enrichment statistics.
  • The extracted PMID:28655553 finding states that the exact SMAD4 c.463A>G/p.S155G variant was not reported in the 150-patient vascular-anomaly cohort.
Still missing
  • A validated exact-variant case series or case-control analysis with affected and control counts or an odds ratio is unavailable.
Sources
PM6 Not assessed: no affected proband with presumed de novo inheritance and unavailable or untested parents is documented for this variant. Details ▾Hide ▴
Reasoning

No presumed de novo occurrence is documented for NM_005359.6:c.463A>G. There is no report of an affected proband with unavailable or untested parents, no parental phenotype information, and no case-level evidence sufficient to distinguish PM6 from an untested inherited variant.

Evidence considered
  • The available ClinVar record provides a classification and citation trail but does not document a presumed de novo case, parental availability, or parental testing status.
  • The exact-variant paper extraction reports no SMAD4-specific patient observation or segregation result for NM_005359.6:c.463A>G.
Still missing
  • A case-level affected proband is not documented.
  • Parental availability and testing status are not documented.
  • Parental phenotypes and inheritance assessment are not documented.
  • No meiosis or de novo probability evidence is documented.
PP1 Not assessed: no affected relatives, informative meioses, or family cosegregation data are documented for NM_005359.6:c.463A>G. Details ▾Hide ▴
Reasoning

No affected relatives carrying NM_005359.6:c.463A>G are documented, and no family pedigree, number of informative meioses, genotype-phenotype correlation, or cosegregation data are available. PP1 therefore cannot be applied at any strength.

Evidence considered
  • No family-level segregation data are present in the case evidence for NM_005359.6:c.463A>G.
  • The reviewed exact-variant publication does not report a patient-specific segregation result or family study for p.(Ser155Gly).
Still missing
  • Family pedigree and disease status of relatives are not documented.
  • Genotypes of affected and unaffected relatives are not documented.
  • Number of informative meioses is not documented.
  • Phenotype consistency among variant-positive relatives is not documented.
PP4 Not assessed: no individual-level phenotype sufficiently specific for a SMAD4-associated disorder was provided for this variant carrier. Details ▾Hide ▴
Reasoning

No patient phenotype, clinical presentation, or highly specific disease-feature description for the individual carrying NM_005359.6:c.463A>G was provided in the available evidence. Gene-level associations of SMAD4 with hereditary hemorrhagic telangiectasia and juvenile polyposis do not establish a specific phenotype for this variant carrier. Therefore, the highly specific phenotype requirement for PP4 cannot be assessed.

Rule
Generic PP4: the patient's phenotype or family history is highly specific for a disease with a single-gene etiology; no applicable SMAD4-specific VCEP rule was available.
Evidence considered
  • The available record contains no individual-level phenotype or clinical presentation for the exact variant.
  • Gene-level SMAD4 disease associations alone are insufficient for PP4.
Still missing
  • Individual-level clinical findings and a defined phenotype-to-disease match are unavailable.
BS4 Not assessed: no informative unaffected relatives with documented negative testing and adequate phenotype assessment are available for BS4. Details ▾Hide ▴
Reasoning

No unaffected relatives who are informative for inheritance are documented as lacking NM_005359.6:c.463A>G. The available records contain no pedigree, genotype results in unaffected relatives, age-related phenotype assessment, or non-segregation analysis; BS4 cannot be applied.

Evidence considered
  • The case evidence does not document any unaffected relatives tested for NM_005359.6:c.463A>G or any family-level non-segregation observation.
  • The reviewed exact-variant publication provides no unaffected-relative genotype or non-segregation data for p.(Ser155Gly).
Still missing
  • Informative unaffected relatives are not identified.
  • Negative familial genotype results are not documented.
  • Age and clinical evaluation sufficient to establish unaffected status are not documented.
  • No non-segregation analysis is documented.
BP2 Not assessed: no documented phase, cis/trans relationship, or second pathogenic variant is available for this SMAD4 c.463A>G observation. Details ▾Hide ▴
Reasoning

No SMAD4-specific VCEP framework is available, so the generic ACMG/AMP definition was considered. For a dominant disorder, BP2 requires observation of the assessed variant in trans with a pathogenic or likely pathogenic variant. The available case materials document the single variant NM_005359.6:c.463A>G (NP_005350.1:p.(Ser155Gly)) but provide no second pathogenic variant, family-level genotype data, or validated cis/trans phase information. Consequently, BP2 cannot be assessed from the available evidence and is not applied.

Evidence considered
  • The exact ClinVar record concerns NM_005359.6(SMAD4):c.463A>G (p.Ser155Gly), but the case materials do not report a second pathogenic variant or phase relationship.
  • The reviewed SMAD4 disease-context source does not provide a patient-specific segregation, cis/trans phase, or allelic observation for p.Ser155Gly.
Still missing
  • A second pathogenic or likely pathogenic variant and validated phase information are needed to evaluate BP2.
Sources
BP5 Not assessed: no exact-variant affected case with a documented alternate molecular basis for disease was identified. Details ▾Hide ▴
Reasoning

No reliable report was identified showing this exact variant in an affected individual who has an established alternate molecular basis for the relevant disease. The exact-variant paper extract reviewed for PMID:28655553 says the variant was not reported, and non-expert ClinVar classifications do not establish an alternate molecular diagnosis. The generic BP5 requirement therefore cannot be assessed.

Rule
Generic BP5: the variant is found in an affected individual with an alternate molecular basis for the disease; no applicable SMAD4-specific VCEP rule was available.
Evidence considered
  • The extracted PMID:28655553 finding states that the exact variant was not reported and provides no alternate molecular diagnosis for it.
  • The ClinVar record contains no evidence of an affected exact-variant case with an alternate molecular basis.
Still missing
  • A documented affected case carrying the exact variant plus an independent molecular diagnosis explaining the phenotype is unavailable.
Sources
Not applicable · 5· recorded as not applicable Show reasons ▾Hide reasons ▴
PVS1 N/APVS1 (ClinGen SVI PVS1 recommendations, PMC6185798, pvs1_generic_framework) applies only to null variant classes — nonsense, frameshift, canonical ±1/2 splice-consensus, translation-initiation-codon loss, and stop-loss variants — each expected to trigger nonsense-mediated decay or otherwise abolish normal protein function. NM_005359.6:c.463A>G in SMAD4 is a missense substitution predicted to produce NP_005350.1:p.(Ser155Gly). As a result, no null-variant mechanism (nonsense-mediated decay, truncation, or canonical splice disruption) is triggered by this variant class, so PVS1's structural prerequisite is not met by this variant class. This determination was made deterministically from the variant's consequence class, prior to LLM adjudication, because no structured VCEP criteria-combination framework governs this case (framework_complete=false); the generic ACMG/AMP 2015 fallback applies. Details ▾Hide ▴
Rule
deterministic_prefilter: requires_null_variant_class
Evidence considered
  • Deterministic consequence classification: missense (prefetch.json normalized protein consequence)
Sources
pvs1_generic_framework ↗generic_acmg_combination_rules
PM3 N/ANot applicable: SMAD4-associated hereditary hemorrhagic telangiectasia and juvenile polyposis are listed with autosomal-dominant inheritance, so recessive biallelic evidence is not required. Details ▾Hide ▴
Reasoning

No SMAD4-specific VCEP framework is available, so the generic ACMG/AMP definition was considered. PM3 is intended for recessive disorders and requires evidence that the assessed variant occurs in trans with a pathogenic variant, or other biallelic disease evidence. The available SMAD4 disease context identifies hereditary hemorrhagic telangiectasia and juvenile polyposis as autosomal-dominant conditions, and the case contains no indication that this variant is being evaluated for a recessive SMAD4 disorder. Therefore PM3 is not applicable to this case; no biallelic pathogenic-variant evidence is used.

Evidence considered
  • The reviewed SMAD4 disease-context source lists hereditary hemorrhagic telangiectasia and juvenile polyposis with autosomal-dominant inheritance.
  • No biallelic or compound-heterozygous interpretation is appropriate for the stated SMAD4 dominant disease context.
Sources
PM4 N/APM4 (Richards et al. 2015, PMID:25741868) applies to protein length changes: in-frame insertions/deletions in a non-repetitive region, or stop-loss variants that extend the protein past the reference stop codon. NM_005359.6:c.463A>G in SMAD4 is a missense substitution predicted to produce NP_005350.1:p.(Ser155Gly). As a result, no change in protein length occurs, so there is nothing for this criterion to evaluate, so PM4's structural prerequisite is not met by this variant class. This determination was made deterministically from the variant's consequence class, prior to LLM adjudication, because no structured VCEP criteria-combination framework governs this case (framework_complete=false); the generic ACMG/AMP 2015 fallback applies. Details ▾Hide ▴
Rule
deterministic_prefilter: requires_stop_loss_or_nonrepeat_indel
Evidence considered
  • Deterministic consequence classification: missense (prefetch.json normalized protein consequence)
Sources
pvs1_generic_framework ↗generic_acmg_combination_rules
BP3 N/ABP3 (Richards et al. 2015, PMID:25741868) applies to in-frame insertions/deletions located in a repetitive region without a known function. NM_005359.6:c.463A>G in SMAD4 is a missense substitution predicted to produce NP_005350.1:p.(Ser155Gly). As a result, the variant does not alter protein length within a repeat region, so there is nothing for this criterion to evaluate, so BP3's structural prerequisite is not met by this variant class. This determination was made deterministically from the variant's consequence class, prior to LLM adjudication, because no structured VCEP criteria-combination framework governs this case (framework_complete=false); the generic ACMG/AMP 2015 fallback applies. Details ▾Hide ▴
Rule
deterministic_prefilter: requires_repeat_region_indel
Evidence considered
  • Deterministic consequence classification: missense (prefetch.json normalized protein consequence)
Sources
pvs1_generic_framework ↗generic_acmg_combination_rules
BP7 N/ABP7 (Richards et al. 2015, PMID:25741868) is defined for a synonymous (silent) variant for which splicing prediction algorithms predict no impact to the splice consensus sequence and the nucleotide is not highly conserved. NM_005359.6:c.463A>G in SMAD4 is a missense substitution predicted to produce NP_005350.1:p.(Ser155Gly). As a result, the encoded protein sequence is altered, so the criterion's silent-variant premise does not hold regardless of any splicing prediction, so BP7's structural prerequisite is not met by this variant class. This determination was made deterministically from the variant's consequence class, prior to LLM adjudication, because no structured VCEP criteria-combination framework governs this case (framework_complete=false); the generic ACMG/AMP 2015 fallback applies. Details ▾Hide ▴
Rule
deterministic_prefilter: requires_synonymous
Evidence considered
  • Deterministic consequence classification: missense (prefetch.json normalized protein consequence)
Sources
generic_acmg_combination_rules

Identifiers

Gene
SMAD4
Transcript
NM_005359.6
Coding (HGVS c.)
NM_005359.6:c.463A>G
Protein (HGVS p.)
NP_005350.1:p.(Ser155Gly)
GRCh38
chr18:51054789 A>G
GRCh37
chr18:48581159 A>G
Location and type
Exon 5 · missense
ClinVar
374977

Gene diagram

Every interpreted variant in SMAD4, mapped onto the exon structure of NM_005359.6. Select a row to find it on the plot.

SMAD4NM_005359.6
Fetching transcript structure from UCSC…
gnomAD v4.1 3 / 1,594,076 alleles AF 1.88e-06 · 0 homozygotes
gnomAD v2.1 1 / 251,376 alleles AF 3.98e-06 · 0 homozygotes
gnomAD-Canada v1.0 Allele count data not recorded

By genetic ancestry

gnomAD v4.1

AF 1.9e-06 · 3 / 1,594,076 alleles · 0 hom
East Asian1 / 44,822 2.2e-05
African/African American1 / 74,706 1.3e-05
European (non-Finnish)1 / 1,161,556 8.6e-07
0 alternate alleles recorded in 7 other groups: Remaining individuals, Admixed American, European (Finnish), Amish, Middle Eastern, South Asian, Ashkenazi Jewish.

gnomAD v2.1

AF 4e-06 · 1 / 251,376 alleles · 0 hom
European (non-Finnish)1 / 113,664 8.8e-06
0 alternate alleles recorded in 7 other groups: African/African American, Admixed American, Ashkenazi Jewish, East Asian, European (Finnish), Remaining individuals, South Asian.

Statements

gnomAD v4.1

This variant is present in gnomAD v4.1 (AF= 1.88197e-06; MAF= 0.00019%, 3/1594076 alleles, homozygotes = 0) and has highest observed frequency in the East Asian population (AF= 2.23105e-05; MAF= 0.00223%, 1/44822 alleles, homozygotes = 0).

gnomAD v2.1

This variant is present in gnomAD v2.1 (AF= 3.9781e-06; MAF= 0.00040%, 1/251376 alleles, homozygotes = 0) and has highest observed frequency in the European (non-Finnish) population (AF= 8.79786e-06; MAF= 0.00088%, 1/113664 alleles, homozygotes = 0).

gnomAD-Canada

Not available in gnomAD-Canada v1.0.

SpliceAI and Pangolin

SpliceAI acceptor lossat +2 bp
0.002
SpliceAI acceptor gainat +1 bp
0.055
SpliceAI donor lossat -126 bp
0.005
SpliceAI donor gainat +204 bp
0.026
Pangolin splice lossmagnitude shown
-0.012
Pangolin splice gain
0.010

Other predictors

REVEL
0.484
BayesDel
-0.243

How the predictions were used

PP3 Not met: missense REVEL 0.484 is below the ClinGen SVI PP3 supporting threshold of >=0.644. Details ▾Hide ▴
Reasoning

The variant is a missense substitution, NP_005350.1:p.(Ser155Gly), so the generic fallback requires the missense-specific REVEL path and does not substitute the splice-path SpliceAI result. REVEL is 0.484. This is below the supplied ClinGen SVI PP3 supporting threshold of >=0.644 (moderate >=0.773; strong >=0.932). BayesDel is not usable because no generic ACMG-strength calibration is established. Therefore PP3 is not met.

Rule
Generic ClinGen SVI missense calibration: REVEL >=0.644 for PP3 supporting, with higher thresholds for moderate and strong PP3.
Evidence considered
  • The case variant is NM_005359.6:c.463A>G, encoding the missense change NP_005350.1:p.(Ser155Gly).
  • The local REVEL predictor score is 0.484; the supplied ClinGen SVI calibration assigns PP3 supporting at REVEL >=0.644, so this score does not meet PP3.
  • The supplied ClinGen SVI REVEL calibration thresholds are PP3 supporting >=0.644, moderate >=0.773, and strong >=0.932 (Pejaver et al. 2022, PMID:36413997); 0.484 does not meet any PP3 threshold.
  • The generic fallback explicitly uses one mechanism matching variant type: REVEL for missense variants, rather than substituting the splice-path SpliceAI result; BayesDel has no established generic ACMG-strength calibration and is not usable.
Sources
revelgeneric_acmg_combination_rulesPMID:25741868 ↗
BP4 Not met: missense REVEL 0.484 exceeds the ClinGen SVI BP4 supporting threshold of <=0.29. Details ▾Hide ▴
Reasoning

The variant is a missense substitution, NP_005350.1:p.(Ser155Gly), so the generic fallback requires the missense-specific REVEL path and does not substitute the splice-path SpliceAI result. REVEL is 0.484. This is above the supplied ClinGen SVI BP4 supporting threshold of <=0.29 (moderate <=0.183; strong <=0.016). BayesDel is not usable because no generic ACMG-strength calibration is established. Therefore BP4 is not met.

Rule
Generic ClinGen SVI missense calibration: REVEL <=0.29 for BP4 supporting, with lower thresholds for moderate and strong BP4.
Evidence considered
  • The case variant is NM_005359.6:c.463A>G, encoding the missense change NP_005350.1:p.(Ser155Gly).
  • The local REVEL predictor score is 0.484; the supplied ClinGen SVI calibration assigns BP4 supporting at REVEL <=0.29, so this score does not meet BP4.
  • The supplied ClinGen SVI REVEL calibration thresholds are BP4 supporting <=0.29, moderate <=0.183, and strong <=0.016 (Pejaver et al. 2022, PMID:36413997); 0.484 does not meet any BP4 threshold.
  • The generic fallback explicitly uses one mechanism matching variant type: REVEL for missense variants, rather than substituting the splice-path SpliceAI result; BayesDel has no established generic ACMG-strength calibration and is not usable.
Sources
revelgeneric_acmg_combination_rulesPMID:25741868 ↗
BP7 N/ABP7 (Richards et al. 2015, PMID:25741868) is defined for a synonymous (silent) variant for which splicing prediction algorithms predict no impact to the splice consensus sequence and the nucleotide is not highly conserved. NM_005359.6:c.463A>G in SMAD4 is a missense substitution predicted to produce NP_005350.1:p.(Ser155Gly). As a result, the encoded protein sequence is altered, so the criterion's silent-variant premise does not hold regardless of any splicing prediction, so BP7's structural prerequisite is not met by this variant class. This determination was made deterministically from the variant's consequence class, prior to LLM adjudication, because no structured VCEP criteria-combination framework governs this case (framework_complete=false); the generic ACMG/AMP 2015 fallback applies. Details ▾Hide ▴
Rule
deterministic_prefilter: requires_synonymous
Evidence considered
  • Deterministic consequence classification: missense (prefetch.json normalized protein consequence)
Sources
generic_acmg_combination_rules

Statement

In silico

SpliceAI predicts no significant splice impact for this variant (max delta score = 0.06). REVEL score = 0.484. BayesDel score = -0.242868.

7 paper records listed. 1 cited in the classification. None of the listed paper records explicitly indicates that the variant is named.

Cited in the classification

  • Standards and guidelines for the interpretation of sequence variants: a joint consensus recommendation of the American College of Medical Genetics and Genomics and the Association for Molecular Pathology.
    This paper does not report SMAD4- or variant-specific data for c.463A>G (p.Ser155Gly). It provides the ACMG/AMP 2015 framework definitions used for this group's criteria (PS1, PM1, PM5, PP2, BP1) and states that the impact of a missense change depends on the evolutionary conservation of the residue, its location and context within the protein, and the biochemical consequence of the substitution, while cautioning that computational predictions alone cannot support a clinical assertion.
    → PM2 · supporting Does not name this variant
    PMID 25741868 ↗
    Source detail
    The impact of a missense change depends on criteria such as the evolutionary conservation of an amino acid or nucleotide, the location and context within the protein sequence, and the biochemical consequence of the amino acid substitution.

    Location Computational (In Silico) Predictive Programs

    Context General ACMG/AMP workgroup consensus, surveys, workshop feedback, and review of variant-classification evidence; no SMAD4-specific cohort or assay described.

Other recorded publications

  • Heritable Thoracic Aortic Disease Overview.
    Adam MP et al. · 1993
    No paper-specific finding is recorded.
    PMID 20301299 ↗
  • Juvenile Polyposis Syndrome.
    Adam MP et al. · 1993
    No paper-specific finding is recorded.
    PMID 20301642 ↗
  • Cancer Genetics Risk Assessment and Counseling (PDQ®): Health Professional Version.
    PDQ Cancer Genetics Editorial Board · 2002
    No paper-specific finding is recorded.
    PMID 26389258 ↗
  • Genetics of Colorectal Cancer (PDQ®): Health Professional Version.
    PDQ Cancer Genetics Editorial Board · 2002
    No paper-specific finding is recorded.
    PMID 26389505 ↗
  • Variant discovery in patients with Mendelian vascular anomalies by next-generation sequencing and their use in&#xa0;patient clinical management.
    Mattassi R et al. · 2018
    The paper does not report the exact SMAD4 variant c.463A>G, p.(S155G). SMAD4 was included among the vascular-anomaly-associated genes analysed by the authors and was listed as associated with hereditary haemorrhagic telangiectasia and juvenile polyposis under an autosomal-dominant inheritance model. No SMAD4-specific patient observation, functional assay, segregation result, variant-type spectrum, or population-frequency information is provided for p.(S155G).
    Does not name this variant
    PMID 28655553 ↗
    Quoted passage
    SMAD4 NM_005359.5 600993 Hereditary hemorrhagic telangiectasia/ juvenile polyposis AD

    Table I, list of vascular-anomaly-associated genes analyzed

  • ACMG SF v3.1 list for reporting of secondary findings in clinical exome and genome sequencing: A policy statement of the American College of Medical Genetics and Genomics (ACMG).
    Miller DT et al. · 2022
    No paper-specific finding is recorded.
    PMID 35802134 ↗

Screenshots represent source records captured during evidence collection. Select one to view the recorded source content.

All source links

Statements for reports

The evidence statements recorded by the interpretation pipeline. They have not been reinterpreted by the page.

gnomAD v4.1

This variant is present in gnomAD v4.1 (AF= 1.88197e-06; MAF= 0.00019%, 3/1594076 alleles, homozygotes = 0) and has highest observed frequency in the East Asian population (AF= 2.23105e-05; MAF= 0.00223%, 1/44822 alleles, homozygotes = 0).

gnomAD v2.1

This variant is present in gnomAD v2.1 (AF= 3.9781e-06; MAF= 0.00040%, 1/251376 alleles, homozygotes = 0) and has highest observed frequency in the European (non-Finnish) population (AF= 8.79786e-06; MAF= 0.00088%, 1/113664 alleles, homozygotes = 0).

gnomAD-Canada

Not available in gnomAD-Canada v1.0.

ClinVar

This variant has been reported in ClinVar as Uncertain significance (3 clinical laboratories) and as Uncertain Significance (1 clinical laboratory) and as Likely benign (1 clinical laboratory). (ClinVarID = 374977)

In silico

SpliceAI predicts no significant splice impact for this variant (max delta score = 0.06). REVEL score = 0.484. BayesDel score = -0.242868.

Functional

OncoKB did not identify variant-specific reviewed functional evidence for this variant; gene-level curated context is available for reviewer follow-up. SMAD4, a transcription factor in the TGFß pathway, is frequently mutated in pancreatic and colorectal cancers.

Somatic

This variant does not lie in a statistically significant hotspot. This variant has not previously been reported in somatic cancers (COSMIC).

Cancer Hotspots

This variant does not lie in a statistically significant hotspot.
