Five-step scale from benign to pathogenic. This variant is likely pathogenic. Select a step to read what it means.
This variantScenario
BenignPathogenic
Likely pathogenic.A likely pathogenic classification under the recorded framework.
In plain language
Gene-level background from the recorded interpretation.
Words with a dotted underline have a short definition. Hover or tap them.
About BCOR
BCOR (BCL6 co-repressor) encodes a transcriptional repressor that silences target genes by working with the BCL6 protein and histone-modifying complexes, helping maintain the correct chromatin state. It is essential for early embryonic development, normal germinal center formation in B cells, blood cell production, and mesenchymal stem cell function. Germline mutations in BCOR cause the inherited oculofaciocardiodental and Lenz microphthalmia syndromes. In cancer, BCOR acts as a tumor suppressor: gene fusions drive certain soft tissue and endometrial stromal sarcomas and acute promyelocytic leukemia, while truncating mutations are found in retinoblastoma, acute myeloid leukemia, and myelodysplastic syndrome.
LYFE Sciences is an AI system, and it can make mistakes.
Criteria may be applied incorrectly, sources may be misread, and a
confident-looking classification can still be wrong.
Double-check every criterion and its underlying evidence
before relying on any call.
01The reasoning
How it was classified
The recorded framework is Not recorded. The criteria and strengths shown below come from the saved assessment; this page does not recalculate the classification.
Recorded applied criteria
The applied criteria and their strengths are shown as assessed under the stated framework.
Met (very strong): the 1-nt insertion creates frameshift p.(Lys1291GlnfsTer84) whose premature stop codon sits 753 nt upstream of the final exon-exon junction, predicted to trigger nonsense-mediated decay.
PM2Supporting
PM2 · supporting
Met (supporting): allele frequency is 0 in gnomAD v2.1, v4.1, and gnomAD-Canada, below the 0.1% threshold.
Benign criteria applied · 1
BP4Supporting
BP4 · supporting
Met (supporting): SpliceAI max delta 0.074, below the <0.1 BP4 threshold. Flagged for human review: this reflects splice prediction only and does not contradict the frameshift's loss-of-function consequence.
Recorded classification: Likely pathogenic
Likely Pathogenic: 1 Very Strong (PVS1) + 1 supporting (PM2) maps to Likely Pathogenic under the ClinGen SVI 2020 PM2-downgrade rule (posterior probability 0.988). The met BP4 (splice-only, supporting) was not counted as benign evidence because it does not apply to this frameshift's loss-of-function consequence.
02The sources
Evidence at a glance
Evidence summaries and captured source records, where available. Missing entries should not be interpreted as negative findings.
gnomAD v4.1
gnomAD v2.1
Population frequency
Not recorded
gnomAD v4.1 allele counts were not recorded for this variant.
ACMG/AMP criteria under Not recorded, with the data and sources behind each one.
28 criteria with recorded statuses: 3 met · 7 not met · 10 not assessed · 8 not applicable. Open any row for the full reasoning, the rule and the evidence behind it.
PVS1 met at very strong: c.3870_3871insC is a frameshift null variant (p.Lys1291GlnfsTer84) in exon 9 of 15 of NM_017745.5, with the premature termination codon 753 nt upstream of the final exon-exon junction, predicting NMD.
BCOR LOF is an established germline disease mechanism (X-linked dominant oculofaciocardiodental syndrome), supported by the gene-context gate and directly by PMID:26847029.
The truncation removes the C-terminal region required for interaction with core PRC1 components, a change shown to mimic pathogenic OFCD mutations (PMID:26847029); no downgrade applies (NMD predicted, mid-gene location, absent from population databases, no repeat-region context).
Residual caveats - absence of a BCOR VCEP and non-MANE-Select status of NM_017745.5 - do not alter the verdict but warrant transcript-position confirmation.
No ClinGen CSPEC/VCEP or local gene-specific framework exists for BCOR, so generic ACMG/AMP 2015 (Richards et al., PMID 25741868) governs all four segregation/de novo criteria.
The entire segregation_de_novo group is not_assessed because the case bundle contains no proband-level, parental-testing, or family-segregation data: the variant is absent from ClinVar, absent from gnomAD v2.1/v4.1/Canada, and all 5 available publications are somatic cancer/functional studies with zero de novo, parentage, or segregation content for this variant.
None of PS2, PM6, PP1, or BS4 can be met (or refuted) without family-based observations; applying any of them from the available somatic-cancer literature would violate evidence symmetry and the requirement for variant-level proband/family data.
If proband/parental testing or family segregation data become available (e.g., a clinical report of de novo occurrence of c.3870_3871insC in oculofaciocardiodental/Lenz microphthalmia phenotype), this group must be re-adjudicated.
No ClinGen CSPEC/VCEP specification exists for BCOR (cspec found=false; vcep_materials empty); generic ACMG/AMP 2015 (Richards et al., PMID 25741868) governs all criteria in this group.
PS4 not met: no case-control or cohort enrichment data exist for this exact variant; all retrieved BCOR publications are somatic oncology cohorts (AML/MDS/retinoblastoma) that do not report c.3870_3871insC, and OncoKB's label is somatic oncogenicity, not germline case-control evidence.
PP4 not assessed: the case bundle contains no proband phenotype, clinical history, or family history data required to evaluate phenotype specificity.
BP5 not assessed: no proband-level data exist to confirm or exclude an alternative molecular basis for disease.
PP5 and BP6 not met: the variant is absent from ClinVar entirely, so no exact-variant expert-panel (3-star) classification exists to trigger either criterion.
No ClinGen CSPEC or VCEP specification exists for BCOR; generic ACMG/AMP 2015 (PMID 25741868) governs this case (framework_mode=generic_acmg).
The case bundle contains no allelic data for NM_017745.5:c.3870_3871insC: no second BCOR allele, no trans/cis phase information, no affected-proband or family allelic observations, and no ClinVar submission for the variant.
BCOR germline phenotypes (oculofaciocardiodental syndrome, Lenz microphthalmia) are X-linked dominant per gene context; no recessive/biallelic disease context is established, and the variant's functional context in the bundle is somatic (OncoKB Likely Oncogenic, Likely Loss-of-function).
PM3 not assessed: required in-trans pathogenic variant observation for a recessive context is absent; evidence insufficient.
BP2 not assessed: required cis/trans observation of a second pathogenic variant is absent; evidence insufficient.
None of the five retrieved full-text publications mention c.3870_3871insC or p.(Lys1291GlnfsTer84); they provide no allelic evidence for this group.
No ClinGen CSPEC/VCEP or gene-specific framework exists for BCOR (cspec not found; no gene_vcep_dir; no local gene framework); generic ACMG/AMP 2015 PP3/BP4 fallback governs (source key: generic_acmg_combination_rules, PMID 25741868).
Variant NM_017745.5:c.3870_3871insC is a frameshift insertion (p.Lys1291GlnfsTer84), i.e. non-missense; per the generic rule exactly one mechanism is evaluated - the SpliceAI splice-impact path only.
SpliceAI max delta score 0.074: below 0.2 (PP3 not met) and below 0.1 (BP4 met at supporting strength).
PP3 not met: no computational evidence supports a deleterious effect. BP4 met (supporting): no predicted splice disruption, per the generic fallback threshold.
Missense in-silico predictors (REVEL/BayesDel) are not applicable to this non-SNV variant and were skipped by the evidence pipeline; no cross-predictor fallback is used per the generic rule.
BP4 (supporting) is assigned on the splice-impact sub-path only; it must not be interpreted as evidence that the frameshift gene product is unaffected (PVS1 assessed separately).
No ClinGen CSPEC/VCEP specification exists for BCOR (cspec found=false, gene_vcep_dir=null); the generic ACMG/AMP 2015 framework (Richards et al. 2015, PMID:25741868) governs, with this lab's non-VCEP gnomAD operating thresholds (PM2 < 0.1%, BS1 > 0.3%, BA1 > 1%).
Population evidence: NM_017745.5:c.3870_3871insC is absent (AF = 0) from gnomAD v2.1, gnomAD v4.1, and gnomAD-Canada v1.0, and is absent from ClinVar.
BA1: not met (AF = 0 is far below the >5% stand-alone threshold).
BS1: not met (AF = 0 cannot exceed the disease-expected frequency).
BS2: not met (no observation of the variant in healthy adults in gnomAD, gnomAD-Canada, or ClinVar).
PM2: met at supporting strength (absent in controls / extremely low frequency; consistent with a rare X-linked germline loss-of-function allele).
Net population-group contribution: PM2 (supporting, pathogenic direction) only; no benign population evidence applies.
No criteria match.
Met · 3
PVS1Very strongMet (very strong): the 1-nt insertion creates frameshift p.(Lys1291GlnfsTer84) whose premature stop codon sits 753 nt upstream of the final exon-exon junction, predicted to trigger nonsense-mediated decay.
Details ▾Hide ▴
Reasoning
NM_017745.5:c.3870_3871insC in BCOR is a 1-nt insertion producing a frameshift, NP_060215.4:p.(Lys1291GlnfsTer84), a null-variant class per the ClinGen SVI PVS1 decision tree (PMC6185798). The variant lies in exon 9 of 15 (c.3746-4071); the premature termination codon at p.1374 (~c.4120, exon 10) is 753 nt upstream of the final exon-exon junction (exon 14/15 at c.4875), well beyond the 50-55 nt NMD threshold, so NMD is predicted and the variant is not in the last exon or last 50 bp of the penultimate exon - full-strength PVS1 is not excluded on NMD grounds. Gene-level loss-of-function is an established mechanism: BCOR is essential for human development and heterozygous germline LOF mutations cause oculofaciocardiodental (OFCD) syndrome (PMID:26847029), and the pipeline gene-context gate (pvs1_gene_context) was 'eligible'. The frameshift truncates the C-terminus (1722 -> 1374 aa, ~20% of the protein lost plus 84 novel out-of-frame residues), removing the region required for interaction with core PRC1 components; PMID:26847029 shows that Bcor alleles generating such C-terminally truncated proteins 'mimic the pathogenic mutations seen in OFCD patients'. No population LoF tolerance signal exists (absent from gnomAD v2.1, v4.1, and gnomAD-Canada v1.0), and the variant is not in a repeat/low-complexity region that would suggest artefact or tolerance. No BCOR-specific CSPEC/VCEP exists, so the generic SVI PVS1 framework was applied; none of the standard downgrade considerations (NMD escape, last-exon location, non-critical distal region, exon enriched for population LoF) apply. PVS1 met at very strong.
Rule
PVS1: null variant (frameshift) + LOF is known disease mechanism + NMD predicted + not last exon/penultimate-exon-50bp (generic ClinGen SVI PVS1 decision tree, PMC6185798)
Evidence considered
Frameshift consequence: Mutalyzer/VariantValidator normalization of NM_017745.5:c.3870_3871insC predicts NP_060215.4:p.(Lys1291GlnfsTer84) (wild-type protein 1722 aa; mutant protein 1374 aa with 84 novel out-of-frame residues), i.e., a null-variant class satisfying the first SVI PVS1 prerequisite.
NMD prediction: the PTC at p.1374 (~c.4120, exon 10) is 753 nt upstream of the final exon-exon junction (exon 14/15 boundary at c.4875), far exceeding the 50-55 nt NMD threshold; the variant is in exon 9 of 15, not the last exon or the last 50 bp of the penultimate exon, so full-strength PVS1 is not excluded on NMD or location grounds.
Gene-level LOF mechanism: pvs1_gene_context gate is 'eligible' (generic fallback; no BCOR CSPEC/VCEP). PMID:26847029 states 'The X-linked BCOR gene is essential for human development. Female patients harboring heterozygous mutations in BCOR develop oculofaciocardiodental (OFCD) syndrome', establishing BCOR LOF as a germline disease mechanism.
Critical-region impact: the frameshift truncates the C-terminal ~348 aa, removing the region required for interaction with core PRC1 components; PMID:26847029 reports that a Bcor allele lacking exons 9-10 generating a truncated protein missing this region 'mimics the pathogenic mutations seen in OFCD patients'.
No population LoF tolerance signal: the variant is absent from gnomAD v2.1, gnomAD v4.1, and gnomAD-Canada v1.0, providing no evidence that the affected exon tolerates null variation, so no PVS1 downgrade for population LoF enrichment.
Somatic LOF context: PMID:24047651 found 15 BCOR truncating mutations in MDS (8 frameshift, 5 nonsense, 2 splice-site) plus frameshift/nonsense BCORL1 mutations, with truncating BCOR mutations associated with worse overall survival and higher AML transformation, consistent with LOF as the operative mechanism.
OncoKB variant-specific annotation for K1291Qfs*84 gives biological effect 'Likely Loss-of-function' (oncogenicity 'Likely Oncogenic'), corroborating the predicted functional effect of this frameshift.
No repeat-region or low-complexity annotation flags this insertion site; no artefact-prone homopolymer context identified that would question the frameshift interpretation.
Still missing
No BCOR-specific CSPEC/VCEP exists; PVS1 was calibrated with the generic ClinGen SVI framework (PMC6185798) only.
NM_017745.5 is not flagged MANE Select or RefSeq Select by VariantValidator (NM_017745.6 is the newer RefSeq version); full-strength PVS1 is retained because the frameshift is mid-gene, NMD-predicted, and removes the C-terminal PRC1-interaction region, but the equivalent position on the MANE transcript should be confirmed to keep full strength.
No functional assay directly testing this exact variant (c.3870_3871insC) is available; the LOF effect is inferred from consequence class, NMD prediction, and truncation of the C-terminal PRC1-interaction region.
PM2SupportingMet (supporting): allele frequency is 0 in gnomAD v2.1, v4.1, and gnomAD-Canada, below the 0.1% threshold.
Details ▾Hide ▴
Reasoning
PM2 is met: the variant is absent (AF = 0) from gnomAD v2.1, gnomAD v4.1, and gnomAD-Canada v1.0, i.e. absent in controls / at an extremely low allele frequency, well below this lab's non-VCEP PM2 operating threshold of AF < 0.1%. BCOR is an X-linked gene (Xp11.4) with a supported germline loss-of-function disease mechanism, so absence in population controls, including male hemizygotes, supports a pathogenic role. Under the generic ACMG/AMP 2015 framework PM2 contributes supporting strength. Confidence is moderate rather than high because the variant is a single-base insertion (c.3870_3871insC) that short-read sequencing can under-call in homopolymer/repetitive contexts; the consistent absence across two gnomAD builds plus gnomAD-Canada mitigates but does not fully eliminate this technical artifact risk.
Rule
PM2: absent in controls / extremely low allele frequency in population databases (Richards et al. 2015, PMID:25741868); lab non-VCEP gnomAD operating threshold PM2 < 0.1%
PM2 semantics per Richards et al. 2015 (PMID:25741868): absent in controls / extremely low frequency in population databases (ExAC/1000G/ESP); observed AF of 0 across gnomAD v2.1, v4.1, and gnomAD-Canada satisfies the criterion at supporting strength.
BCOR is X-linked (Xp11.4, OMIM 300485); hemizygous males are included in gnomAD allele counts, so absence also covers the hemizygous state relevant to an X-linked disorder.
Still missing
Single-base insertion may be under-detected by short-read sequencing in repetitive/homopolymer contexts; absence was confirmed across three independent datasets (gnomAD v2.1, v4.1, gnomAD-Canada), but site-level QC flags (e.g. AC0 filter status) were not individually reviewed.
No gnomAD constraint metric (e.g. LOEUF/pLI) or gene-level LoF tolerance assessment was available in the case bundle to contextualize PM2 strength.
BP4SupportingMet (supporting): SpliceAI max delta 0.074, below the <0.1 BP4 threshold. Flagged for human review: this reflects splice prediction only and does not contradict the frameshift's loss-of-function consequence.
Details ▾Hide ▴
Reasoning
Under the governing generic ACMG/AMP 2015 fallback PP3/BP4 rule (no ClinGen CSPEC/VCEP or gene-specific specification for BCOR), this non-missense (frameshift insertion) variant is evaluated with SpliceAI only. SpliceAI max delta score is 0.074, which is < 0.1, meeting the generic fallback BP4 threshold (SpliceAI max delta < 0.1 -> BP4 supporting) and consistent with the low-impact range of the SpliceAI publication (Jaganathan et al., Nat Genet 2019; PMID 30661751). No REVEL score is available and none is used, per the generic rule that a non-missense variant has no REVEL score and there is no fallback to the missense-path predictor. NOTE for human review: this BP4 reflects only the splice-impact sub-path (no predicted splice disruption); it does not indicate that the gene product is unaffected, since the variant's coding consequence is a frameshift truncation (p.Lys1291GlnfsTer84) evaluated under PVS1 by another group. The final classification must not treat this BP4 as contradicting the frameshift loss-of-function consequence.
SpliceAI (source key: spliceai) max delta score 0.074 is < 0.1, meeting the generic ACMG fallback BP4 threshold for non-missense variants (source key: generic_acmg_combination_rules: SpliceAI max delta < 0.1 -> BP4 supporting); the low score is consistent with the low-impact range of the SpliceAI publication (Jaganathan et al., Nat Genet 2019; PMID 30661751).
BP4 here reflects only the splice-impact sub-path (no predicted splice disruption); the variant's coding consequence is a frameshift (p.Lys1291GlnfsTer84) evaluated by other groups (PVS1), so this BP4 must not be read as evidence that the gene product is unaffected.
No REVEL score is available and none is used: per the generic rule, a non-missense variant has no REVEL score and there is no fallback to the missense-path predictor for the wrong variant type.
Still missing
BP4 application to a frameshift variant is unusual: the code reflects only absence of predicted splice disruption and does not speak to the protein-level truncation; confirm at final classification that BP4 is not interpreted as evidence against the frameshift LoF consequence (PVS1).
The 0.1 BP4 boundary is the lab's operating threshold defined in generic_acmg_combination_rules (SVI-recommended SpliceAI thresholds, cf. Walker et al. 2023); no gene-specific calibration exists for BCOR.
PS4Not met: no case-control or cohort enrichment data exist for this exact variant.
Details ▾Hide ▴
Reasoning
PS4 requires a significantly increased prevalence of the variant in affected individuals compared with controls (Richards et al. 2015, PMID 25741868). No case-control or cohort enrichment data exist for the exact variant NM_017745.5:c.3870_3871insC (p.(Lys1291GlnfsTer84)): ClinVar has no record for it, the five retrieved BCOR publications (somatic AML/MDS/retinoblastoma cohorts) do not report this exact variant, and OncoKB's 'Likely Oncogenic / Likely Loss-of-function' annotation is a somatic oncology label, not germline case-control enrichment evidence. PS4 is therefore not met.
Rule
PS4: Prevalence of variant in affected individuals significantly increased compared with controls (Richards et al. 2015, PMID 25741868)
Evidence considered
Generic ACMG/AMP 2015 (Richards et al., PMID 25741868) governs this case because no ClinGen CSPEC/VCEP specification exists for BCOR (framework_mode=generic_acmg, framework_complete=false).

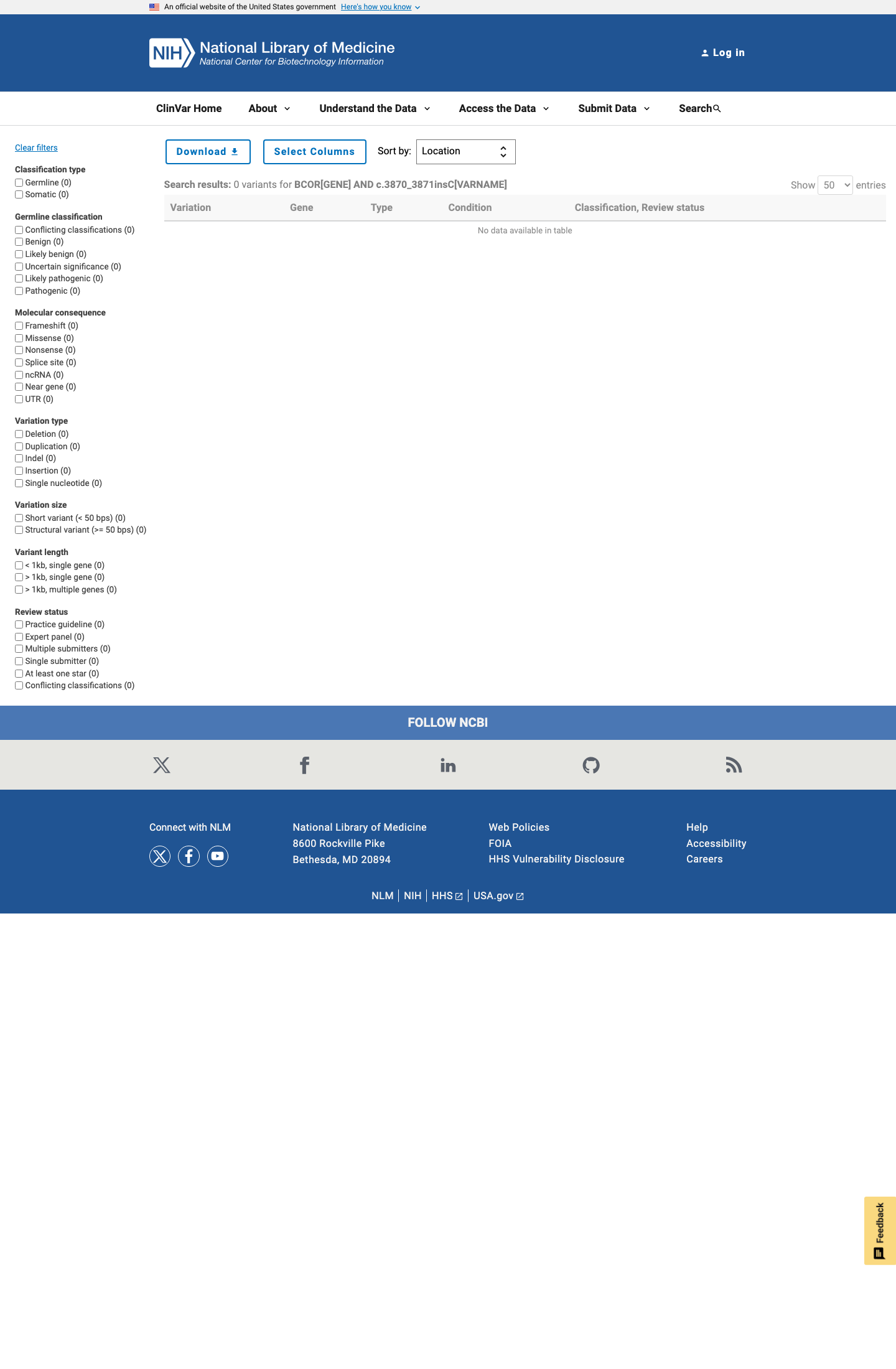

ClinVar was searched with six term variants (BCOR[GENE] AND c.3870_3871insC[VARNAME], NM_017745.5:c.3870_3871insC[VARNAME], NM_017745.5:c.3870_3871insC, NC_000023.10:g.39922199_39922200insG[VARNAME], NC_000023.10:g.39922199_39922200insG, BCOR[GENE] AND NM_017745.5:c.3870_3871insC); exact_match=false and variation_ids=[] - no record exists, so no affected-individual prevalence data from ClinVar.

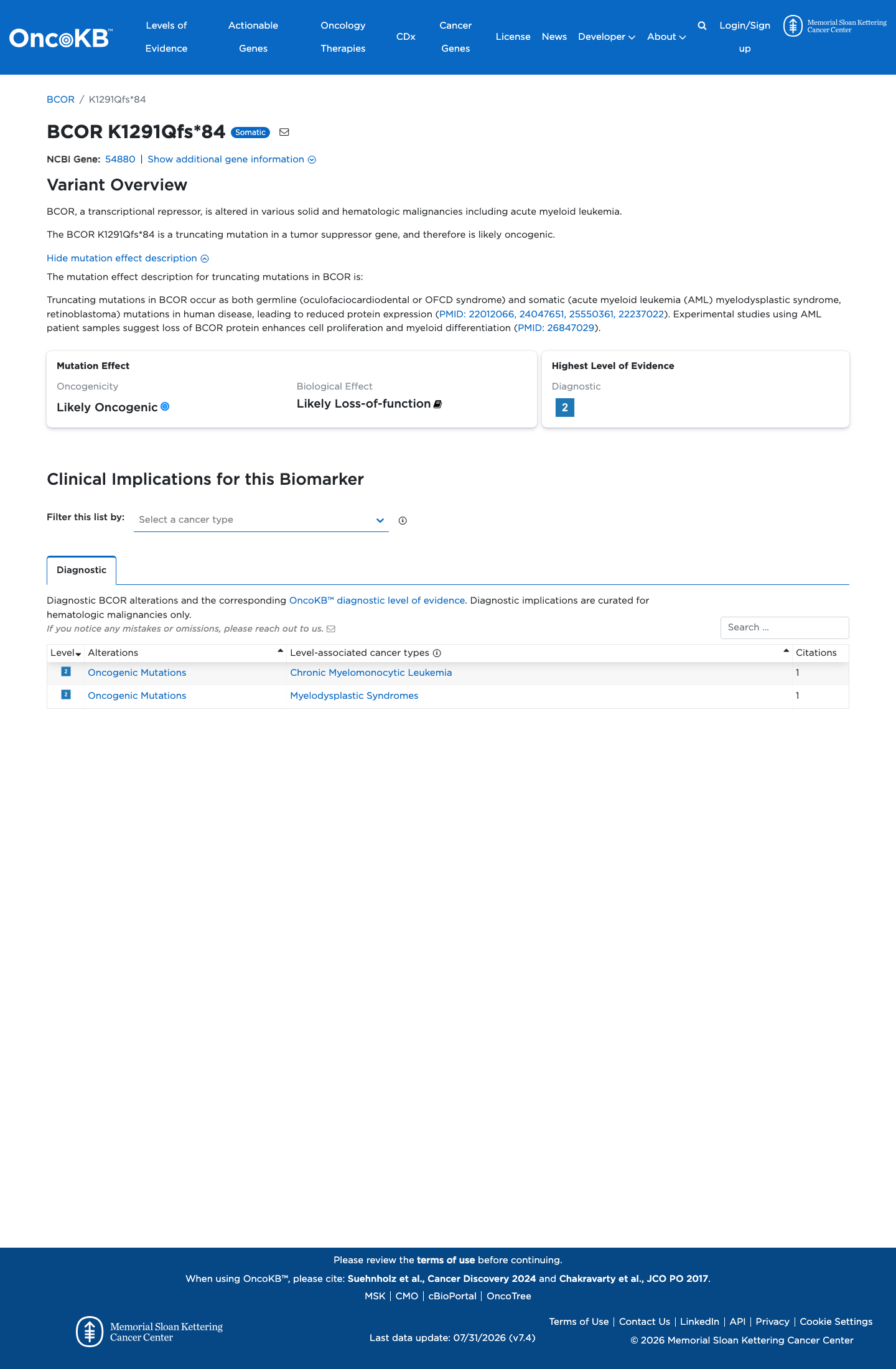

OncoKB reports BCOR p.K1291Qfs*84 as 'Likely Oncogenic' with 'Likely Loss-of-function' biological effect; this is a variant-specific somatic oncology curation, not a germline case-control enrichment study, and cannot satisfy PS4.
Searched all five retrieved BCOR full texts (PMID:22012066, PMID:22237022, PMID:24047651, PMID:25550361, PMID:26847029) for the exact variant (c.3870_3871insC, 3870/3871, K1291, Lys1291, Qfs*84, insC); none report this exact variant, so no case-control enrichment evidence for this variant is available from the retrieved literature.
Still missing
No case-control or cohort study reporting this exact variant (c.3870_3871insC) in affected individuals versus controls
PP3Not met: SpliceAI max delta 0.074, below the >0.2 splice-altering threshold.
Details ▾Hide ▴
Reasoning
Variant NM_017745.5:c.3870_3871insC (BCOR) is a frameshift insertion (p.Lys1291GlnfsTer84), i.e. a non-missense variant, so under the governing generic ACMG/AMP 2015 fallback rule (no ClinGen CSPEC/VCEP or gene-specific PP3/BP4 specification exists for BCOR) only the SpliceAI splice-impact path is evaluated. SpliceAI reports max delta score 0.074 (DS_AG 0.074, DS_AL 0.018, DS_DG 0.030, DS_DL 0.002), which is below the 0.2 splice-altering threshold from the SpliceAI publication (Jaganathan et al., Nat Genet 2019; PMID 30661751) and below the generic fallback's PP3 threshold (SpliceAI max delta > 0.2). No computational evidence therefore supports a deleterious splice effect; the missense in-silico path (REVEL/BayesDel) is not applicable to a non-missense variant (predictor pipeline skipped: not an SNV) and per the generic rule there is no cross-predictor fallback. PP3 is not met.

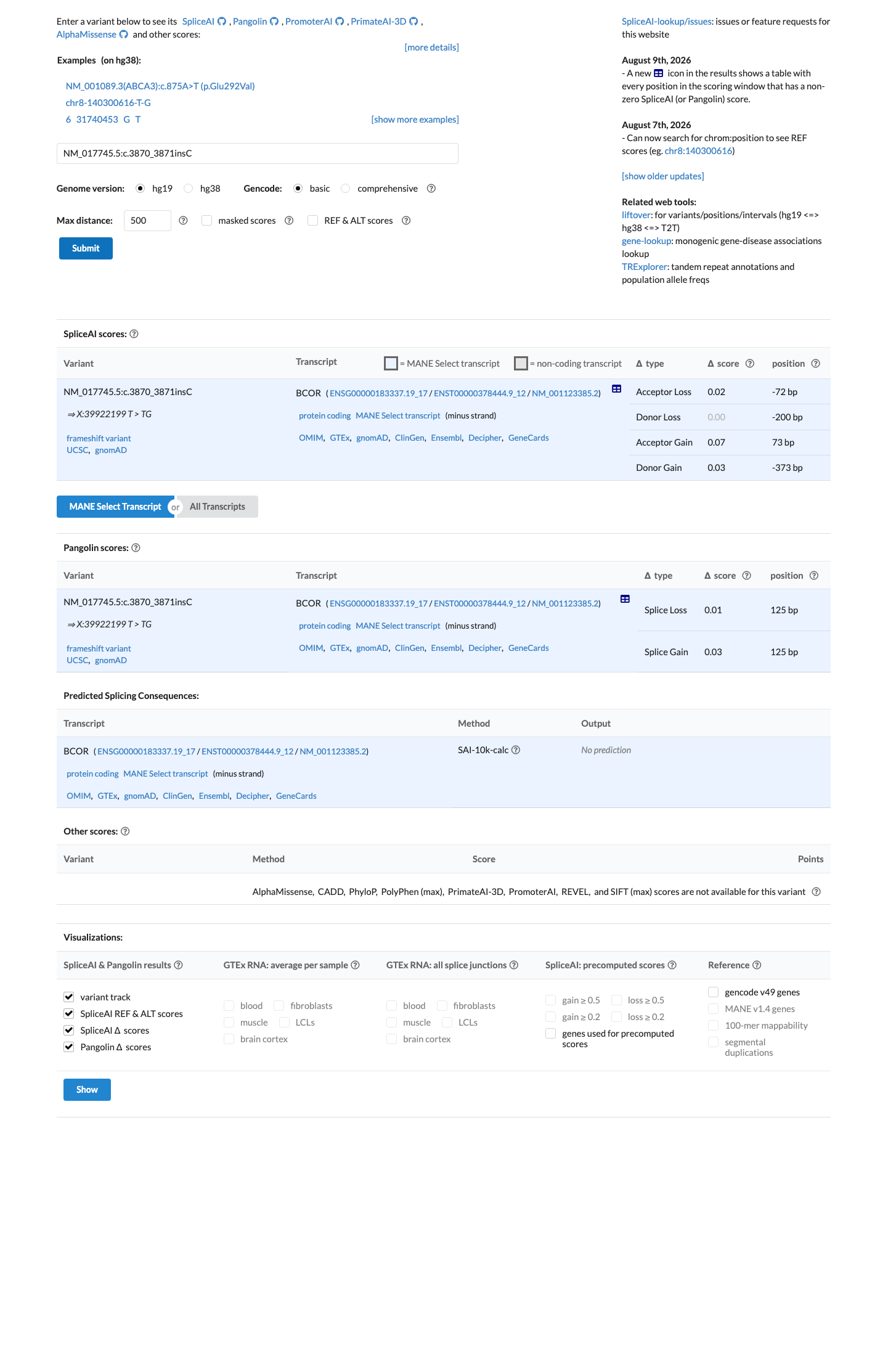

SpliceAI (source key: spliceai) reports max delta score 0.074 (DS_AG 0.074, DS_AL 0.018, DS_DG 0.030, DS_DL 0.002) for NM_017745.5:c.3870_3871insC, below the 0.2 splice-altering threshold recommended in the SpliceAI publication (Jaganathan et al., Nat Genet 2019; PMID 30661751); no splice-impact evidence supports PP3.
Variant is a frameshift insertion (non-missense); per the generic ACMG fallback PP3/BP4 rule (source key: generic_acmg_combination_rules) non-missense variants are evaluated with SpliceAI only, and REVEL/BayesDel are not applicable (predictor pipeline skipped: not an SNV).
No ClinGen CSPEC/VCEP or gene-specific PP3/BP4 lookup exists for BCOR; generic ACMG/AMP 2015 (Richards et al., PMID 25741868) governs.
Still missing
No ClinGen CSPEC/VCEP or gene-specific PP3/BP4 specification for BCOR; generic ACMG/AMP 2015 fallback used (output/generic_acmg_classification_rules.md).
Missense in-silico predictors (REVEL/BayesDel) are not applicable to this frameshift insertion; only the splice-impact sub-path was evaluable for PP3.
PP5Not met: the variant is absent from ClinVar, so no expert-panel pathogenic classification exists.
Details ▾Hide ▴
Reasoning
PP5 is applied only when an exact-variant ClinVar expert-panel (3-star) classification of Pathogenic/Likely pathogenic exists. NM_017745.5:c.3870_3871insC is absent from ClinVar entirely (exact_match=false, variation_ids=[] across all search term variants), so no expert-panel classification of any kind exists for this variant. There is therefore no basis to apply PP5, and it is not met.
Rule
PP5: Reputable source reports variant as pathogenic without independent evaluation - restricted to exact-variant ClinVar expert-panel (3-star) classifications
Evidence considered
ClinVar has no record for NM_017745.5:c.3870_3871insC (no variation ID, no submissions, no review status); no exact-variant ClinVar expert-panel classification exists to support PP5.
Policy: PP5 requires a ClinVar 3-star expert-panel Pathogenic/Likely pathogenic classification of the exact variant; absent here, so PP5 is not met regardless of any other source's assertions.
BA1Not met: allele frequency is 0 in population databases, far below the >1% BA1 threshold.
Details ▾Hide ▴
Reasoning
BA1 requires an allele frequency greater than 5% in reference population databases (Richards et al. 2015, PMID:25741868); this lab's non-VCEP gnomAD operating threshold for BA1 is AF > 1%. NM_017745.5:c.3870_3871insC (BCOR, Xp11.4) is absent from gnomAD v2.1 (GRCh37 X-39922199-T-TG), gnomAD v4.1 (GRCh38 X-40062946-T-TG), and gnomAD-Canada v1.0, i.e. observed allele frequency is 0 in every queried population dataset. A frequency of 0 is orders of magnitude below any BA1 threshold, so the stand-alone benign criterion cannot be met.
Rule
BA1: allele frequency > 5% in reference population databases (Richards et al. 2015, PMID:25741868); lab non-VCEP gnomAD operating threshold BA1 > 1%
Evidence considered

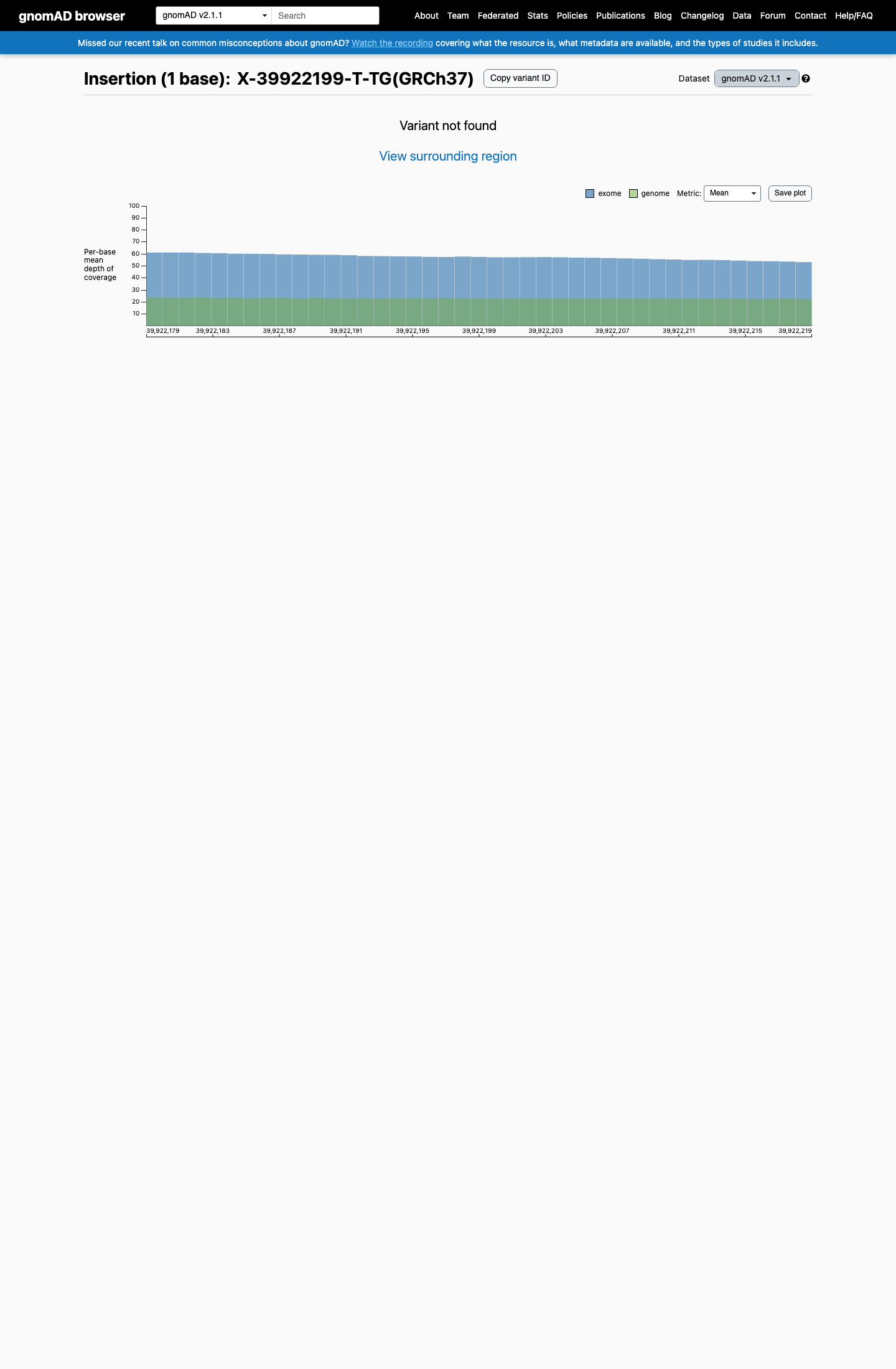

gnomAD v2.1 (exome, GRCh37): variant X-39922199-T-TG queried by direct variant URL; search_status 'absent', no allele counts returned.
gnomAD v4.1 (exome, GRCh38): variant X-40062946-T-TG queried by direct variant URL; search_status 'absent', no allele counts returned.
BA1 threshold per Richards et al. 2015 (PMID:25741868): allele frequency > 5% in general population databases; observed AF of 0 does not approach this threshold.
BS1Not met: allele frequency is 0, below the >0.3% BS1 threshold.
Details ▾Hide ▴
Reasoning
BS1 requires an allele frequency greater than expected for the disorder. The variant is absent from gnomAD v2.1, gnomAD v4.1, and gnomAD-Canada v1.0 (AF = 0 in all datasets), which is below any plausible disease-expected frequency and below this lab's non-VCEP gnomAD BS1 operating threshold of AF > 0.3%. With zero population observations, BS1 cannot be met.
Rule
BS1: allele frequency greater than expected for the disorder (Richards et al. 2015, PMID:25741868); lab non-VCEP gnomAD operating threshold BS1 > 0.3%
BS1 semantics per Richards et al. 2015 (PMID:25741868): allele frequency greater than expected for the disorder; observed AF of 0 is below every expected-frequency estimate for a rare X-linked loss-of-function phenotype.
BS2Not met: no healthy-adult observation exists; the variant is absent from population cohorts and ClinVar.
Details ▾Hide ▴
Reasoning
BS2 requires observation of the variant in a healthy adult (hemizygous in an X-linked disorder such as BCOR-associated disease). No such observation exists: the variant is absent from gnomAD v2.1, gnomAD v4.1, and gnomAD-Canada v1.0 (large population/control cohorts), and ClinVar contains no submission for this variant (no healthy or affected individuals reported). Absence of any healthy-adult observation means BS2 is not met.
Rule
BS2: observed in a healthy adult individual (hemizygous for X-linked disorders) (Richards et al. 2015, PMID:25741868)
Evidence considered
gnomAD v2.1: variant absent; no hemizygous or heterozygous carrier observations in this population cohort.
gnomAD v4.1: variant absent; no carrier observations in this population cohort.
gnomAD-Canada v1.0: variant absent; no carrier observations in this population cohort.
ClinVar: no submission found for BCOR c.3870_3871insC (searched by gene+var name and by genomic HGVS); no healthy-adult observations reported.
BS2 semantics per Richards et al. 2015 (PMID:25741868): observed in a healthy adult individual for a dominant/X-linked disorder (heterozygous/hemizygous); no such observation is present in the available data.
Still missing
No dedicated healthy-adult clinical cohort beyond gnomAD/ClinVar was available; the not_met determination rests on population-database and ClinVar absence rather than an explicitly phenotyped healthy control cohort.
BP6Not met: the variant is absent from ClinVar, so no expert-panel benign classification exists.
Details ▾Hide ▴
Reasoning
BP6 is applied only when an exact-variant ClinVar expert-panel (3-star) classification of Benign/Likely benign exists. NM_017745.5:c.3870_3871insC is absent from ClinVar entirely (exact_match=false, variation_ids=[] across all search term variants), so no expert-panel classification of any kind exists for this variant. There is therefore no basis to apply BP6, and it is not met.
Rule
BP6: Reputable source reports variant as benign without independent evaluation - restricted to exact-variant ClinVar expert-panel (3-star) classifications
Evidence considered
ClinVar has no record for NM_017745.5:c.3870_3871insC (no variation ID, no submissions, no review status); no exact-variant ClinVar expert-panel classification exists to support BP6.
Policy: BP6 requires a ClinVar 3-star expert-panel Benign/Likely benign classification of the exact variant; absent here, so BP6 is not met regardless of any other source's assertions.
PS2Not assessed: no proband or parental testing data were available to confirm a de novo occurrence.
Details ▾Hide ▴
Reasoning
PS2 requires a de novo occurrence (maternity and paternity confirmed) in a proband with the disease and no family history. The case bundle contains no proband-level data at all: no proband phenotype or family history, no parental testing, and no maternity/paternity confirmation. The variant is absent from ClinVar (no curated de novo observations) and absent from gnomAD v2.1/v4.1/Canada. Full-text search of all 5 available publications (somatic cancer/functional studies retrieved via OncoKB) found no de novo or parentage-based evidence for this variant. Under the governing generic ACMG/AMP 2015 framework (no BCOR CSPEC/VCEP exists), PS2 cannot be evaluated without a confirmed de novo observation, so it is not assessed.
Rule
PS2 (ACMG/AMP 2015, Richards et al. PMID 25741868): De novo (maternity and paternity confirmed) occurrence in a proband with the disease and no family history.
Evidence considered
Governing framework: no ClinGen CSPEC/VCEP exists for BCOR and no local gene-specific framework is present (framework_mode=generic_acmg), so generic ACMG/AMP 2015 criteria definitions (Richards et al. 2015, PMID 25741868) apply to PS2/PM6/PP1/BS4.
ClinVar search (BCOR[GENE] AND c.3870_3871insC and multiple HGVS/allelic synonyms) returned no result; the evidence sentence in case_summary states 'This variant is absent from ClinVar.', so no de novo or segregation observations with proband/parental data exist in ClinVar.
No proband, pedigree, parental testing, or family history data appear in review_manifest.json, case_summary.json, prefetch.json, evidence.json, or vcep_materials.json.
Full-text search of the 5 available publications (PMID 22012066, 22237022, 24047651, 25550361, 26847029) for terms including 'de novo', 'denovo', 'segregat', 'maternity', 'paternity', 'proband', 'pedigree', 'family', 'germline', 'inherited', 'mosaic', 'parental' returned zero matches; these are somatic cancer cohort and functional studies with no proband-level de novo data for this variant.
The literature_pass.json criteria_index and candidate_criteria are empty for all 5 papers; no paper was screened as segregation/case-observation evidence.
Still missing
No proband carrying c.3870_3871insC with phenotype/family history is described in any source in the case bundle.
No parental testing or maternity/paternity confirmation data are available.
Variant is absent from ClinVar, so no curated de novo observation (with confirmed parentage) can be retrieved.
PS3Not assessed: no functional assay performed on this exact variant was available.
Details ▾Hide ▴
Reasoning
PS3 (Richards et al. 2015, ACMG/AMP, PMID:25741868) requires well-established functional studies demonstrating a deleterious effect of the variant. No variant-specific functional assay for NM_017745.5:c.3870_3871insC (p.Lys1291GlnfsTer84, BCOR) is present in the evidence bundle. The five OncoKB-sourced functional-theme papers (PMID:22012066, PMID:22237022, PMID:24047651, PMID:25550361, PMID:26847029) were read in full text: none mentions this variant or residue Lys1291, so none can support variant-specific PS3 under strict citation grounding. They provide only gene/class-level BCOR loss-of-function evidence (mouse Bcor conditional knockout with frameshift/premature stop, siRNA knockdown in HL60/NB4, and decreased BCOR mRNA/protein in AML/MDS cohorts carrying other disruptive BCOR mutations), which supports the LoF mechanism of the gene rather than a functional effect of this specific allele. OncoKB's variant-specific record labels the biological effect 'Likely Loss-of-function' and oncogenicity 'Likely Oncogenic', but this is a curated bioinformatic inference from the truncating consequence, not a validated functional assay, and a source's final classification cannot be used to infer a criterion. SpliceAI (max delta 0.074) is an in silico splice prediction, not a functional study. PS3 is therefore not assessable from available evidence; the gap is absence of any assay performed on this exact variant.
Rule
generic_acmg_2015_ps3
Evidence considered
PS3 under generic ACMG/AMP 2015 (PMID:25741868) requires well-established functional studies showing a deleterious effect of the variant; no such study of c.3870_3871insC was retrieved.
All five OncoKB-sourced functional-theme papers (PMID:22012066, PMID:22237022, PMID:24047651, PMID:25550361, PMID:26847029) were checked in full text: none mentions c.3870_3871insC, p.Lys1291GlnfsTer84, or residue Lys1291, so none can be cited for variant-specific PS3.
PMID:26847029 provides gene-level evidence that BCOR loss of function (mouse Bcor exons 9-10 deletion generating a frameshift/premature stop codon, and siRNA knockdown in HL60/NB4) enhances myeloid proliferation and impairs differentiation; mechanism-level support for BCOR as a tumor suppressor, not an assay of this variant.
PMID:22012066 shows substantially decreased BCOR mRNA and absent full-length BCOR protein in AML patients carrying other disruptive BCOR mutations (Thr733AlafsX5, Asn1485LysfsX5, Leu245ThrfsX19, Pro1115ThrfsX41, His674MetfsX41); class-level truncation evidence, not this variant.
OncoKB variant-specific record for K1291Qfs*84 labels biological effect 'Likely Loss-of-function' and oncogenicity 'Likely Oncogenic'; this is a curated inference from the truncating consequence, not a validated functional assay, and final classifications from other sources are not used to infer criteria.
SpliceAI (max delta score 0.074) is an in silico splice prediction only and does not constitute a functional study for PS3.
Still missing
No variant-specific functional assay for c.3870_3871insC / p.Lys1291GlnfsTer84 exists in the evidence bundle (e.g., BCOR transcriptional repression activity, protein stability/expression, PRC1.1 complex interaction, or myeloid proliferation/differentiation readout). All retrieved BCOR functional literature is gene/class-level and does not mention this variant.
PM3Not assessed: no second BCOR allele or phase data were available, and BCOR germline disease is X-linked dominant, not recessive.
Details ▾Hide ▴
Reasoning
Governing framework is generic ACMG/AMP 2015 (Richards et al., PMID 25741868) because no ClinGen CSPEC or VCEP specification exists for BCOR (cspec found=false; final_classification_framework fallback=generic_acmg). PM3 requires a recessive-disease context and detection of the variant in trans with a pathogenic variant. The case bundle contains no proband genotype data beyond the index variant, no second BCOR allele, and no phase information; ClinVar has no submission for NM_017745.5:c.3870_3871insC. The gene context indicates BCOR germline phenotypes (oculofaciocardiodental syndrome, Lenz microphthalmia) are X-linked dominant, so no recessive/biallelic disease premise for PM3 is established, and the available variant-specific context is predominantly somatic (OncoKB: Likely Oncogenic, Likely Loss-of-function). Evidence is insufficient to apply or refute PM3; not assessed pending allelic data.
Rule
PM3 (Richards et al. 2015, PMID 25741868): For recessive disorders, detected in trans with a pathogenic variant. Generic ACMG/AMP 2015 definition applies because no BCOR CSPEC/VCEP exists.
Evidence considered
Governing framework is generic ACMG/AMP 2015 (Richards et al., PMID 25741868); no ClinGen CSPEC or VCEP specification exists for BCOR (cspec found=false; vcep_materials.final_classification_framework.found=false, source=generic_acmg_fallback), so the standard PM3 definition applies.
ClinVar contains no submission for NM_017745.5:c.3870_3871insC (variation_ids empty; search_status no_result), so no clinical observation of this variant - and therefore no allelic-phase observation - is available.
pvs1_gene_context.json documents a germline disease context for BCOR with loss-of-function mechanism supported, but its inheritance list is empty; case gene context (output/gene_context_BCOR.json) notes BCOR germline mutations cause oculofaciocardiodental and Lenz microphthalmia syndromes, which are X-linked dominant phenotypes - no recessive-disease premise for PM3 is established.
The only variant-specific functional context in the bundle is somatic (OncoKB: Likely Oncogenic, biological effect Likely Loss-of-function), which provides no germline allelic observations.
All five retrieved full-text publications (somatic AML/MDS/retinoblastoma studies) were screened for c.3870_3871insC and p.(Lys1291GlnfsTer84); none mention this variant, so none provide affected-proband or phase evidence for PM3.
Still missing
No proband sequencing/genotype data showing presence or absence of a second BCOR allele
No phase information (trans/cis) for any second BCOR variant (no parental or family testing data in the bundle)
No evidence establishing a recessive or biallelic disease context for BCOR (known germline phenotypes are X-linked dominant)
No affected-proband allelic observations (e.g., compound heterozygosity, hemizygosity with a second somatic hit) documented in the case bundle
PM6Not assessed: no parental testing data were available to support an unconfirmed de novo occurrence.
Details ▾Hide ▴
Reasoning
PM6 requires a de novo occurrence in a proband with the disease when maternity and paternity have not been confirmed. As with PS2, the case bundle contains no proband-level or parental testing data whatsoever, and the variant is absent from ClinVar. No source reports a de novo occurrence of c.3870_3871insC, confirmed or unconfirmed. PM6 therefore cannot be assessed under the generic ACMG/AMP 2015 framework.
Rule
PM6 (ACMG/AMP 2015, Richards et al. PMID 25741868): De novo occurrence in a proband with the disease and no family history, maternity and paternity not confirmed.
Evidence considered
ClinVar reports no entry for this variant (case_summary evidence sentence: 'This variant is absent from ClinVar.'), so no unconfirmed de novo observations are retrievable.
Full-text search of the 5 available publications (PMID 22012066, 22237022, 24047651, 25550361, 26847029) found no de novo/parental/mosaic occurrence data for this variant; all are somatic cancer and functional studies.
No proband or pedigree data are present in review_manifest.json, case_summary.json, prefetch.json, evidence.json, or vcep_materials.json.
Still missing
No de novo occurrence of this variant in any proband is reported in any source (ClinVar, literature, or case data).
No parental testing data exist to establish or exclude de novo origin (even without formal parentage confirmation).
No proband phenotype consistent with a BCOR germline disorder (e.g., oculofaciocardiodental/Lenz microphthalmia) is described in the bundle.
PP1Not assessed: no family members were genotyped, so no segregation data were available.
Details ▾Hide ▴
Reasoning
PP1 requires co-segregation of the variant with disease in affected family members (with the number of informative meioses/affected relatives determining strength). No segregation data exist in the case bundle: there is no family history, no affected relatives genotyped, and no segregation analysis in any available publication. The five available papers are somatic cancer cohort/functional studies with no familial segregation of this variant. Under generic ACMG/AMP 2015, PP1 cannot be applied without any meiotic segregation observations.
Rule
PP1 (ACMG/AMP 2015, Richards et al. PMID 25741868): Co-segregation with disease in multiple affected family members in a gene definitively known to cause the disease; strength scales with number of informative meioses.
Evidence considered
Full-text search of all 5 available publications for segregation/family/pedigree terms returned zero matches; none report familial co-segregation of BCOR c.3870_3871insC.
literature_pass.json screened no paper under a segregation/case-observation theme (criteria_index empty), and no family/pedigree data exist in the case bundle files.
ClinVar contains no entry for this variant, so no ClinVar-curated segregation evidence is available.
Still missing
No affected family members tested for the variant; zero informative meioses available.
No family-based segregation study or pedigree data mentioning this variant in any source.
No ClinVar submissions describing familial segregation for this variant.
PP4Not assessed: no proband phenotype or family history was available to evaluate gene-specificity.
Details ▾Hide ▴
Reasoning
PP4 requires a phenotype or family history that is highly specific for a gene with a single genetic etiology (Richards et al. 2015, PMID 25741868). The case bundle contains no proband phenotype, clinical history, or family history information (case_summary.json contains no clinical phenotype record), so phenotype specificity for this variant cannot be evaluated. PP4 is not assessable from the available evidence.
Rule
PP4: Phenotype or family history highly specific for a gene with a single genetic etiology (Richards et al. 2015, PMID 25741868)
Evidence considered
Reviewed the consolidated case-evidence bundle (case_summary.json, evidence.json, literature_pass.json) for any proband phenotype, clinical indication, or family history description; none is present, so PP4 cannot be assessed.
Generic ACMG/AMP 2015 (Richards et al., PMID 25741868) governs this case (no ClinGen CSPEC/VCEP exists for BCOR).
Still missing
No proband phenotype, clinical history, or family history data available in the case bundle
Sources
generic_acmg_combination_rules
BS3Not assessed: no functional study showing a benign effect of this exact variant was available.
Details ▾Hide ▴
Reasoning
BS3 (Richards et al. 2015, ACMG/AMP, PMID:25741868) requires well-established functional studies demonstrating no damaging effect of the variant. No functional study of NM_017745.5:c.3870_3871insC (p.Lys1291GlnfsTer84) showing a benign/neutral effect exists in the evidence bundle; the variant is a frameshift insertion in exon 9 predicting C-terminal truncation (1374 vs 1722 amino acids), and none of the retrieved full-text papers assays this allele. SpliceAI predicts no significant splicing impact (max delta 0.074), but that is an in silico prediction addressing splicing only, not a functional study, and cannot substitute for BS3. BS3 is therefore not assessable from available evidence; the gap is absence of any functional assay demonstrating lack of damaging effect for this exact variant.
Rule
generic_acmg_2015_bs3
Evidence considered
BS3 under generic ACMG/AMP 2015 (PMID:25741868) requires well-established functional studies showing no damaging effect; no such study of c.3870_3871insC was retrieved.
The variant is a frameshift insertion predicting C-terminal truncation p.Lys1291GlnfsTer84 (NP_060215.4, 1374 vs 1722 aa); no assay of this allele (protein stability, repressor activity, PRC1.1 interaction, proliferation/differentiation) was identified.
SpliceAI max delta score 0.074 predicts no significant splice impact, but this in silico prediction addresses splicing only and cannot constitute well-established functional evidence of no damaging effect (BS3).
None of the five retrieved functional-theme papers (PMID:22012066, PMID:22237022, PMID:24047651, PMID:25550361, PMID:26847029) mentions this variant, so none provides benign functional evidence for it.
Still missing
No functional evidence demonstrating absence of a damaging effect for c.3870_3871insC (e.g., protein stability, transcriptional repressor activity, PRC1.1 complex interaction, or cellular assay). Only in silico SpliceAI (max delta 0.074) is available, which is not a functional study.
BS4Not assessed: no family or segregation data were available.
Details ▾Hide ▴
Reasoning
BS4 requires lack of segregation in affected family members (e.g., variant present in an unaffected member or absent in an affected member), which would argue against pathogenicity. No family or segregation data of any kind are available for this variant: no genotyped relatives, no pedigree, and no such observations in the available literature or ClinVar. BS4 cannot be assessed in the absence of any familial observations.
Rule
BS4 (ACMG/AMP 2015, Richards et al. PMID 25741868): Lack of segregation in affected family members (variant observed in an unaffected family member and/or absent in an affected family member).
Evidence considered
No family/pedigree data appear anywhere in the case bundle (review_manifest, case_summary, prefetch, evidence, vcep_materials).
Full-text search of the 5 available publications found no affected/unaffected family member genotype data relevant to this variant.
ClinVar has no entry for this variant, so no non-segregation observations are retrievable.
Still missing
No genotyped unaffected or affected family members exist in any source, so non-segregation cannot be evaluated.
No familial case reports or pedigree data for this variant are available.
Variant absent from ClinVar, precluding retrieval of any ClinVar-curated non-segregation observations.
BP2Not assessed: no second BCOR variant or phase information was available.
Details ▾Hide ▴
Reasoning
Governing framework is generic ACMG/AMP 2015 (Richards et al., PMID 25741868) because no ClinGen CSPEC or VCEP specification exists for BCOR. BP2 requires observing the variant in trans with a pathogenic variant for a fully dominant disease/mechanism, or in cis with a pathogenic variant in any inheritance pattern. No second BCOR variant is observed anywhere in the case bundle (ClinVar absent; COSMIC absent; no proband sequencing data), and no phase information exists from parental/family testing. Evidence is insufficient to apply or refute BP2; not assessed pending cis/trans observation data.
Rule
BP2 (Richards et al. 2015, PMID 25741868): Observed in trans with a pathogenic variant for a fully dominant disease/mechanism, or observed in cis with a pathogenic variant in any inheritance pattern. Generic ACMG/AMP 2015 definition applies because no BCOR CSPEC/VCEP exists.
Evidence considered
Governing framework is generic ACMG/AMP 2015 (Richards et al., PMID 25741868); no ClinGen CSPEC or VCEP specification exists for BCOR, so the standard BP2 definition applies.
ClinVar contains no submission for NM_017745.5:c.3870_3871insC (variation_ids empty), and no second BCOR variant or cis/trans configuration is reported anywhere in the case bundle.
No parental, familial, or phasing data are present in review_manifest.json, case_summary.json, prefetch.json, or evidence.json - the cis/trans observation required for BP2 does not exist in this case.
All five retrieved full-text publications (somatic AML/MDS/retinoblastoma studies) were screened for c.3870_3871insC and p.(Lys1291GlnfsTer84); none mention this variant, so none provide cis/trans observations relevant to BP2.
Still missing
No observation of a second BCOR variant in cis or in trans with this variant
No phase data (parental testing, family segregation, or long-read/linked-read phasing) present in the case bundle
No proband or family sequencing data to establish the cis/trans configuration of any second variant
BP5Not assessed: no proband-level workup was available to confirm or exclude an alternative molecular cause.
Details ▾Hide ▴
Reasoning
BP5 requires that an alternative molecular basis for the disease be identified in the proband (Richards et al. 2015, PMID 25741868). The case bundle contains no proband-level genetic or clinical workup (no second variant, no copy-number/structural finding, no alternative diagnosis), so an alternative molecular cause can neither be confirmed nor excluded. BP5 is not assessable from the available evidence.
Rule
BP5: Alternative molecular basis for disease identified in the proband (Richards et al. 2015, PMID 25741868)
Evidence considered
Reviewed the consolidated case-evidence bundle for any proband-level evidence of an alternative molecular diagnosis (e.g., another pathogenic variant, chromosomal abnormality, or alternate explanation); none is present, so BP5 cannot be assessed.
Generic ACMG/AMP 2015 (Richards et al., PMID 25741868) governs this case (no ClinGen CSPEC/VCEP exists for BCOR).
Still missing
No proband-level data to determine whether an alternative molecular basis for disease exists
Sources
generic_acmg_combination_rules
Not applicable · 8· recorded as not applicableShow reasons ▾Hide reasons ▴PS1N/ANot applicable: a frameshift produces no altered amino acid, so there is no change to compare with a previously established pathogenic variant.
Details ▾Hide ▴
Reasoning
PS1 (Richards et al. 2015, PMID:25741868) requires the same amino acid change as a previously established pathogenic variant, evaluated regardless of the underlying nucleotide change. NM_017745.5:c.3870_3871insC in BCOR is a frameshift variant predicted to produce NP_060215.4:p.(Lys1291GlnfsTer84). As a result, no altered amino acid exists at this position to compare against any previously established pathogenic missense variant, so PS1's structural prerequisite is not met by this variant class. This determination was made deterministically from the variant's consequence class, prior to LLM adjudication, because no structured VCEP criteria-combination framework governs this case (framework_complete=false); the generic ACMG/AMP 2015 fallback applies.
Rule
deterministic_prefilter: requires_missense
Evidence considered
Deterministic consequence classification: frameshift (prefetch.json normalized protein consequence)
Sources
generic_acmg_combination_rules
PM1N/ANot applicable: PM1 requires a missense variant, and a frameshift leaves no altered residue to evaluate.
Details ▾Hide ▴
Reasoning
PM1 (Richards et al. 2015, PMID:25741868) applies to a missense variant located in a mutational hot spot and/or a critical, well-established functional domain without benign variation. NM_017745.5:c.3870_3871insC in BCOR is a frameshift variant predicted to produce NP_060215.4:p.(Lys1291GlnfsTer84). As a result, no altered residue exists to evaluate for mutational hot-spot or critical-domain membership, so PM1's structural prerequisite is not met by this variant class. This determination was made deterministically from the variant's consequence class, prior to LLM adjudication, because no structured VCEP criteria-combination framework governs this case (framework_complete=false); the generic ACMG/AMP 2015 fallback applies.
Rule
deterministic_prefilter: requires_missense
Evidence considered
Deterministic consequence classification: frameshift (prefetch.json normalized protein consequence)
Sources
generic_acmg_combination_rules
PM4N/ANot applicable: PM4 covers in-frame length changes or stop-loss variants; a frameshift instead shifts the reading frame.
Details ▾Hide ▴
Reasoning
PM4 (Richards et al. 2015, PMID:25741868) applies to protein length changes: in-frame insertions/deletions in a non-repetitive region, or stop-loss variants that extend the protein past the reference stop codon. NM_017745.5:c.3870_3871insC in BCOR is a frameshift variant predicted to produce NP_060215.4:p.(Lys1291GlnfsTer84). As a result, no change in protein length occurs, so there is nothing for this criterion to evaluate, so PM4's structural prerequisite is not met by this variant class. This determination was made deterministically from the variant's consequence class, prior to LLM adjudication, because no structured VCEP criteria-combination framework governs this case (framework_complete=false); the generic ACMG/AMP 2015 fallback applies.
PM5N/ANot applicable: PM5 requires a missense change, which a frameshift does not produce.
Details ▾Hide ▴
Reasoning
PM5 (Richards et al. 2015, PMID:25741868) requires a novel missense change at an amino acid residue where a different missense change has previously been determined to be pathogenic. NM_017745.5:c.3870_3871insC in BCOR is a frameshift variant predicted to produce NP_060215.4:p.(Lys1291GlnfsTer84). As a result, no missense change exists at this residue to compare against a different pathogenic missense change at the same position, so PM5's structural prerequisite is not met by this variant class. This determination was made deterministically from the variant's consequence class, prior to LLM adjudication, because no structured VCEP criteria-combination framework governs this case (framework_complete=false); the generic ACMG/AMP 2015 fallback applies.
Rule
deterministic_prefilter: requires_missense
Evidence considered
Deterministic consequence classification: frameshift (prefetch.json normalized protein consequence)
Sources
generic_acmg_combination_rules
PP2N/ANot applicable: PP2 requires a missense variant, and this is a frameshift.
Details ▾Hide ▴
Reasoning
PP2 (Richards et al. 2015, PMID:25741868) applies to a missense variant in a gene with a low rate of benign missense variation, where missense variants are a common mechanism of disease. NM_017745.5:c.3870_3871insC in BCOR is a frameshift variant predicted to produce NP_060215.4:p.(Lys1291GlnfsTer84). As a result, the gene's missense-constraint properties are irrelevant because no missense change is present to evaluate, so PP2's structural prerequisite is not met by this variant class. This determination was made deterministically from the variant's consequence class, prior to LLM adjudication, because no structured VCEP criteria-combination framework governs this case (framework_complete=false); the generic ACMG/AMP 2015 fallback applies.
Rule
deterministic_prefilter: requires_missense
Evidence considered
Deterministic consequence classification: frameshift (prefetch.json normalized protein consequence)
Sources
generic_acmg_combination_rules
BP1N/ANot applicable: BP1 applies to missense variants, and this is a frameshift.
Details ▾Hide ▴
Reasoning
BP1 (Richards et al. 2015, PMID:25741868) applies to a missense variant in a gene for which primarily truncating variants are known to cause disease. NM_017745.5:c.3870_3871insC in BCOR is a frameshift variant predicted to produce NP_060215.4:p.(Lys1291GlnfsTer84). As a result, the gene's truncating-variant mechanism is irrelevant because no missense change is present to evaluate, so BP1's structural prerequisite is not met by this variant class. This determination was made deterministically from the variant's consequence class, prior to LLM adjudication, because no structured VCEP criteria-combination framework governs this case (framework_complete=false); the generic ACMG/AMP 2015 fallback applies.
Rule
deterministic_prefilter: requires_missense
Evidence considered
Deterministic consequence classification: frameshift (prefetch.json normalized protein consequence)
Sources
generic_acmg_combination_rules
BP3N/ANot applicable: BP3 applies to in-frame changes in repetitive regions, and this is a frameshift.
Details ▾Hide ▴
Reasoning
BP3 (Richards et al. 2015, PMID:25741868) applies to in-frame insertions/deletions located in a repetitive region without a known function. NM_017745.5:c.3870_3871insC in BCOR is a frameshift variant predicted to produce NP_060215.4:p.(Lys1291GlnfsTer84). As a result, the variant does not alter protein length within a repeat region, so there is nothing for this criterion to evaluate, so BP3's structural prerequisite is not met by this variant class. This determination was made deterministically from the variant's consequence class, prior to LLM adjudication, because no structured VCEP criteria-combination framework governs this case (framework_complete=false); the generic ACMG/AMP 2015 fallback applies.
BP7N/ANot applicable: BP7 applies to synonymous variants, and this frameshift alters the protein sequence.
Details ▾Hide ▴
Reasoning
BP7 (Richards et al. 2015, PMID:25741868) is defined for a synonymous (silent) variant for which splicing prediction algorithms predict no impact to the splice consensus sequence and the nucleotide is not highly conserved. NM_017745.5:c.3870_3871insC in BCOR is a frameshift variant predicted to produce NP_060215.4:p.(Lys1291GlnfsTer84). As a result, the encoded protein sequence is altered, so the criterion's silent-variant premise does not hold regardless of any splicing prediction, so BP7's structural prerequisite is not met by this variant class. This determination was made deterministically from the variant's consequence class, prior to LLM adjudication, because no structured VCEP criteria-combination framework governs this case (framework_complete=false); the generic ACMG/AMP 2015 fallback applies.
Rule
deterministic_prefilter: requires_synonymous
Evidence considered
Deterministic consequence classification: frameshift (prefetch.json normalized protein consequence)
Sources
generic_acmg_combination_rules
Identifiers
Gene
BCOR
Transcript
NM_017745.5
Coding (HGVS c.)
NM_017745.5:c.3870_3871insC
Protein (HGVS p.)
NP_060215.4:p.(Lys1291GlnfsTer84)
GRCh38
chrX:40062946 T>TG
GRCh37
chrX:39922199 T>TG
Location and type
Exon 9 · frameshift
Gene diagram
Every interpreted variant in BCOR, mapped onto the exon structure of NM_017745.5. Select a row to find it on the plot.
BCORNM_017745.5
Fetching transcript structure from UCSC…
Exons
—
Transcript span
—
Strand
—
Variants mapped
—
Source
UCSC ncbiRefSeqCurated
All variants in BCOR—Select a row to find it on the plot; use the link to open its page.
Protein
Location
Classification
Link
gnomAD v4.1Allele count data not recorded
gnomAD v2.1Allele count data not recorded
gnomAD-Canada v1.0Allele count data not recorded
Statements
gnomAD v4.1
Absent from gnomAD v4.1.
gnomAD v2.1
Absent from gnomAD v2.1.
gnomAD-Canada
Absent from gnomAD-Canada v1.0.
SpliceAI and Pangolin
SpliceAI acceptor lossat -72 bp
0.018
SpliceAI acceptor gainat +73 bp
0.074
SpliceAI donor lossat -200 bp
0.002
SpliceAI donor gainat -373 bp
0.030
Pangolin splice lossmagnitude shown
-0.014
Pangolin splice gain
0.029
Other predictors
REVEL
Not available
BayesDel
Not available
How the predictions were used
BP4SupportingMet (supporting): SpliceAI max delta 0.074, below the <0.1 BP4 threshold. Flagged for human review: this reflects splice prediction only and does not contradict the frameshift's loss-of-function consequence.
Details ▾Hide ▴
Reasoning
Under the governing generic ACMG/AMP 2015 fallback PP3/BP4 rule (no ClinGen CSPEC/VCEP or gene-specific specification for BCOR), this non-missense (frameshift insertion) variant is evaluated with SpliceAI only. SpliceAI max delta score is 0.074, which is < 0.1, meeting the generic fallback BP4 threshold (SpliceAI max delta < 0.1 -> BP4 supporting) and consistent with the low-impact range of the SpliceAI publication (Jaganathan et al., Nat Genet 2019; PMID 30661751). No REVEL score is available and none is used, per the generic rule that a non-missense variant has no REVEL score and there is no fallback to the missense-path predictor. NOTE for human review: this BP4 reflects only the splice-impact sub-path (no predicted splice disruption); it does not indicate that the gene product is unaffected, since the variant's coding consequence is a frameshift truncation (p.Lys1291GlnfsTer84) evaluated under PVS1 by another group. The final classification must not treat this BP4 as contradicting the frameshift loss-of-function consequence.
SpliceAI (source key: spliceai) max delta score 0.074 is < 0.1, meeting the generic ACMG fallback BP4 threshold for non-missense variants (source key: generic_acmg_combination_rules: SpliceAI max delta < 0.1 -> BP4 supporting); the low score is consistent with the low-impact range of the SpliceAI publication (Jaganathan et al., Nat Genet 2019; PMID 30661751).
BP4 here reflects only the splice-impact sub-path (no predicted splice disruption); the variant's coding consequence is a frameshift (p.Lys1291GlnfsTer84) evaluated by other groups (PVS1), so this BP4 must not be read as evidence that the gene product is unaffected.
No REVEL score is available and none is used: per the generic rule, a non-missense variant has no REVEL score and there is no fallback to the missense-path predictor for the wrong variant type.
Still missing
BP4 application to a frameshift variant is unusual: the code reflects only absence of predicted splice disruption and does not speak to the protein-level truncation; confirm at final classification that BP4 is not interpreted as evidence against the frameshift LoF consequence (PVS1).
The 0.1 BP4 boundary is the lab's operating threshold defined in generic_acmg_combination_rules (SVI-recommended SpliceAI thresholds, cf. Walker et al. 2023); no gene-specific calibration exists for BCOR.
PP3Not met: SpliceAI max delta 0.074, below the >0.2 splice-altering threshold.
Details ▾Hide ▴
Reasoning
Variant NM_017745.5:c.3870_3871insC (BCOR) is a frameshift insertion (p.Lys1291GlnfsTer84), i.e. a non-missense variant, so under the governing generic ACMG/AMP 2015 fallback rule (no ClinGen CSPEC/VCEP or gene-specific PP3/BP4 specification exists for BCOR) only the SpliceAI splice-impact path is evaluated. SpliceAI reports max delta score 0.074 (DS_AG 0.074, DS_AL 0.018, DS_DG 0.030, DS_DL 0.002), which is below the 0.2 splice-altering threshold from the SpliceAI publication (Jaganathan et al., Nat Genet 2019; PMID 30661751) and below the generic fallback's PP3 threshold (SpliceAI max delta > 0.2). No computational evidence therefore supports a deleterious splice effect; the missense in-silico path (REVEL/BayesDel) is not applicable to a non-missense variant (predictor pipeline skipped: not an SNV) and per the generic rule there is no cross-predictor fallback. PP3 is not met.
SpliceAI (source key: spliceai) reports max delta score 0.074 (DS_AG 0.074, DS_AL 0.018, DS_DG 0.030, DS_DL 0.002) for NM_017745.5:c.3870_3871insC, below the 0.2 splice-altering threshold recommended in the SpliceAI publication (Jaganathan et al., Nat Genet 2019; PMID 30661751); no splice-impact evidence supports PP3.
Variant is a frameshift insertion (non-missense); per the generic ACMG fallback PP3/BP4 rule (source key: generic_acmg_combination_rules) non-missense variants are evaluated with SpliceAI only, and REVEL/BayesDel are not applicable (predictor pipeline skipped: not an SNV).
No ClinGen CSPEC/VCEP or gene-specific PP3/BP4 lookup exists for BCOR; generic ACMG/AMP 2015 (Richards et al., PMID 25741868) governs.
Still missing
No ClinGen CSPEC/VCEP or gene-specific PP3/BP4 specification for BCOR; generic ACMG/AMP 2015 fallback used (output/generic_acmg_classification_rules.md).
Missense in-silico predictors (REVEL/BayesDel) are not applicable to this frameshift insertion; only the splice-impact sub-path was evaluable for PP3.
BP7N/ANot applicable: BP7 applies to synonymous variants, and this frameshift alters the protein sequence.
Details ▾Hide ▴
Reasoning
BP7 (Richards et al. 2015, PMID:25741868) is defined for a synonymous (silent) variant for which splicing prediction algorithms predict no impact to the splice consensus sequence and the nucleotide is not highly conserved. NM_017745.5:c.3870_3871insC in BCOR is a frameshift variant predicted to produce NP_060215.4:p.(Lys1291GlnfsTer84). As a result, the encoded protein sequence is altered, so the criterion's silent-variant premise does not hold regardless of any splicing prediction, so BP7's structural prerequisite is not met by this variant class. This determination was made deterministically from the variant's consequence class, prior to LLM adjudication, because no structured VCEP criteria-combination framework governs this case (framework_complete=false); the generic ACMG/AMP 2015 fallback applies.
Rule
deterministic_prefilter: requires_synonymous
Evidence considered
Deterministic consequence classification: frameshift (prefetch.json normalized protein consequence)
Sources
generic_acmg_combination_rules
Statement
In silico
SpliceAI predicts no significant splice impact for this variant (max delta score = 0.07).
5 paper records listed. 2 cited in the classification. None of the listed paper records explicitly indicates that the variant is named.
Cited in the classification
BCOR and BCORL1 mutations in myelodysplastic syndromes and related disorders.
Cohort sequencing of 354 MDS patients and 54 CMML patients identified BCOR mutations in 4.2% and 7.4% respectively; among 15 BCOR truncating mutations, 8 were frameshift, 5 nonsense, and 2 splice-site, spread across the coding region, with somatic origin confirmed in all 10 tested cases. Truncating BCOR mutations were independently associated with worse overall survival and higher cumulative incidence of AML transformation, establishing recurrent truncating (LOF) BCOR alteration as the disease-relevant mutation class in myeloid malignancies.
Among the 15 BCOR truncating mutations, 8 were frameshift, 5 were nonsense, and 2 were splice site mutation. Only alterations affecting the most conserved 2 nucleotides at exon/intron junctions have been considered as splice-site mutations.
Context Whole-exome/targeted sequencing with direct Sanger confirmation of somatic origin in 222 French and 132 Asian MDS patients and 54 CMML patients; survival analysis of truncating BCOR mutations.
BCOR regulates myeloid cell proliferation and differentiation.
This paper establishes BCOR as essential for human development and confirms that heterozygous germline BCOR mutations cause oculofaciocardiodental (OFCD) syndrome, i.e., LOF is the germline disease mechanism. It also shows in mouse myeloid models that a Bcor allele lacking exons 9-10 produces an mRNA with a premature stop codon and a truncated protein missing the region required for interaction with core PRC1 components, and that this truncation 'mimics the pathogenic mutations seen in OFCD patients' - directly supporting the pathogenicity of C-terminally truncating BCOR variants such as the present frameshift.
The X-linked BCOR gene is essential for human development. Female patients harboring heterozygous mutations in BCOR develop oculofaciocardiodental (OFCD) syndrome. ... This mutant allele in which exons 9 and 10 are missing generates a mRNA with a premature stop codon. The resulting truncated protein is missing the region required for interaction with the core PRC1 components and mimics the pathogenic mutations seen in OFCD patients.
Location Introduction (BCOR essential for development; OFCD) and Results, 'BCOR regulates myeloid cell proliferation' (Bcor mutant allele lacking exons 9-10)
Context Mouse myeloid models with conditional Bcor knockout allele (exons 9-10 deleted) and overexpression approaches; review of OFCD patient genetics and X-inactivation data; MDS/AML disease context.
Other recorded publications
Whole-exome sequencing identifies somatic mutations of BCOR in acute myeloid leukemia with normal karyotype.
Whole-exome sequencing study of normal-karyotype AML that identified recurrent somatic BCOR mutations. The paper includes variant-class functional evidence: qRT-PCR showed substantially decreased BCOR mRNA in 5 AML patients with disruptive BCOR mutations introducing premature stop codons, and Western blot showed loss of the full-length BCOR protein band in BCOR-mutated AML. The specific disruptive mutations assayed are listed (Thr733AlafsX5, Asn1485LysfsX5, Leu245ThrfsX19, Pro1115ThrfsX41, His674MetfsX41) and do not include c.3870_3871insC/p.Lys1291GlnfsTer84; the variant of interest is not mentioned anywhere in the full text.
All of the 5 BCOR-mutated AML patients display substantially decreased BCOR mRNA levels (P = .006 by Wilcoxon 2-sample test of ΔCt values).
Figure 3 legend, 'BCOR mRNA and protein expression in AML patients carrying BCOR disruptive mutations'
A novel retinoblastoma therapy from genomic and epigenetic analyses.
Genomic and epigenetic characterization of retinoblastoma. BCOR was identified as recurrently mutated (6/46, 13%), with five samples harboring BCOR mutations resulting in premature truncation and one focal gene deletion. Functional experiments in this paper concern SYK (shRNA knockdown, kinase inhibition), not BCOR, and no BCOR variant is functionally assayed. The variant c.3870_3871insC is not mentioned.
Only BCOR was recurrently mutated in of retinoblastoma (6/46, 13%). Five of the samples had BCOR mutations that resulted in premature truncation of the encoded protein, and 1 sample had a focal gene deletion.
Results section, 'Recurrent lesions in retinoblastoma'
Acute myeloid leukemia ontogeny is defined by distinct somatic mutations.
Targeted mutational analysis defining AML ontogeny classes (s-AML, t-AML, de novo). BCOR is included only as one gene of a secondary-type mutation panel (with SRSF2, SF3B1, U2AF1, ZRSR2, ASXL1, EZH2, STAG2); the paper contains no functional assays of BCOR variants, and c.3870_3871insC is not mentioned.
This variant was interpreted by pipeline 7.1.0.
The current version is 11.0.07.
Re-running queues a fresh interpretation; the result replaces this page when complete.
Re-runs are not free. Blank draws on today's public interpretation allowance; with a code, it uses one of that code's uses.
