Variant interpretation report

KRAS c.250A>G, p.(Ile84Val)

NM_033360.3:c.250A>G NP_203524.1:p.(Ile84Val) View identifiers
Classification
Uncertain significance

Variant description:

No variant summary was recorded for this case.

Five-step scale from benign to pathogenic. This variant is uncertain. Select a step to read what it means.

Uncertain.The recorded classification is uncertain significance.

In plain language

Gene-level background from the recorded interpretation.

About KRAS

KRAS encodes a small GTPase in the RAS family that cycles between active and inactive states to regulate cell growth and signaling through pathways such as MAPK/ERK and PI3K/AKT/mTOR. Activating changes in KRAS are common drivers of many cancers, including pancreatic, colorectal, and lung cancers, where they promote uncontrolled cell proliferation. Germline alterations in KRAS also cause developmental disorders such as Noonan syndrome and cardio-facio-cutaneous syndrome, which carry an increased predisposition to cancer.

LYFE Sciences is an AI system, and it can make mistakes. Criteria may be applied incorrectly, sources may be misread, and a confident-looking classification can still be wrong. Double-check every criterion and its underlying evidence before relying on any call.
01The reasoning

How it was classified

The recorded framework is ClinGen KRAS VCEP v2.3. The criteria and strengths shown below come from the saved assessment; this page does not recalculate the classification.

Recorded applied criteria

The applied criteria and their strengths are shown as assessed under the stated framework.

Pathogenic evidence criteria: 0 Benign evidence criteria: 1
Pathogenic criteria applied · 0

No pathogenic criterion marked as applied in the recorded assessment.

Benign criteria applied · 1
BP4Supporting
BP4 · supporting

Met (Supporting): REVEL 0.294 meets the VCEP pre-assigned <=0.3 BP4 threshold for missense variants.

Recorded classification: Uncertain significance

Variant of Uncertain Significance: only BP4 (Supporting) is met (REVEL 0.294 <= 0.3); no Pathogenic, Likely Pathogenic, Benign, or Likely Benign combination rule is satisfied.

02The sources

Evidence at a glance

Evidence summaries and captured source records, where available. Missing entries should not be interpreted as negative findings.

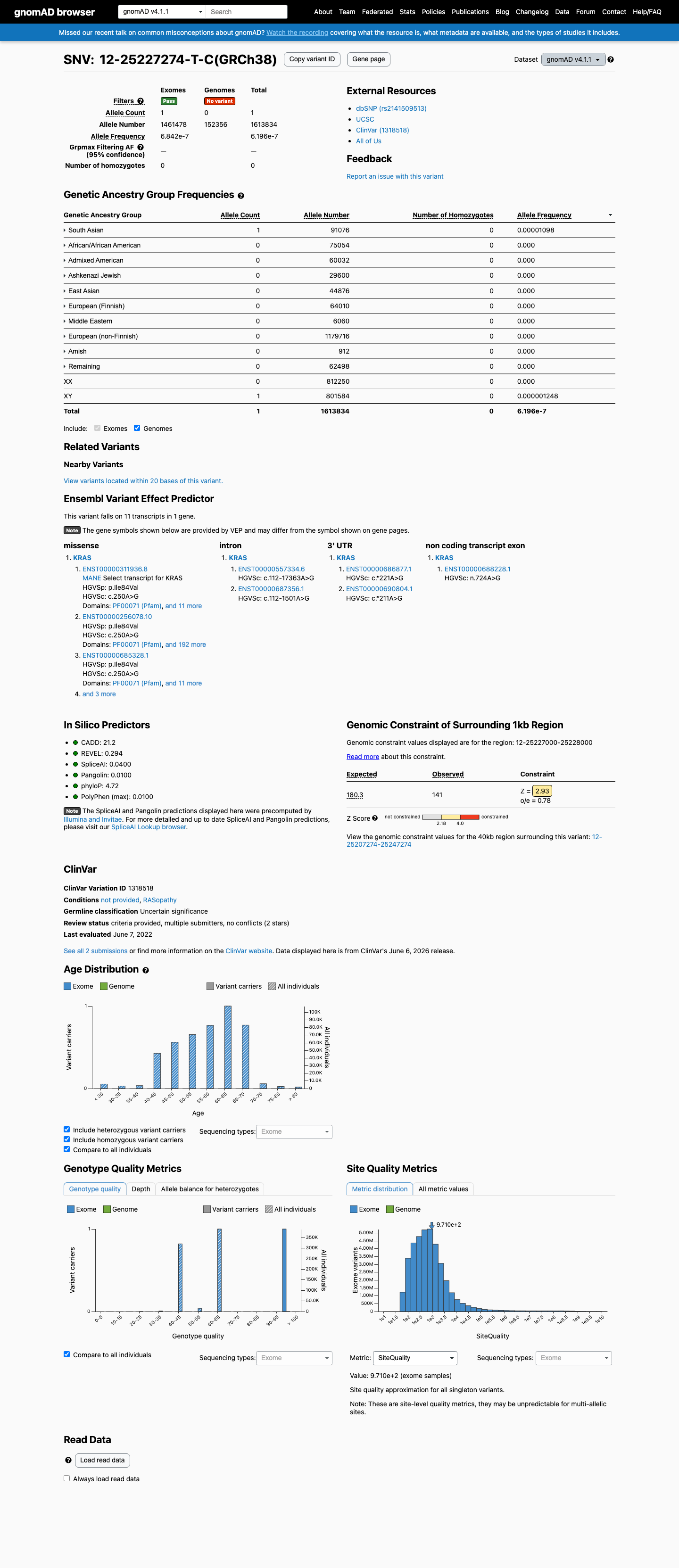

gnomAD v4.1
gnomAD v2.1
Population frequency
1 / 1,613,834 alleles

gnomAD v4.1: 1 / 1,613,834 alleles. Recorded AF 6.19642e-07. Recorded homozygote count 0.

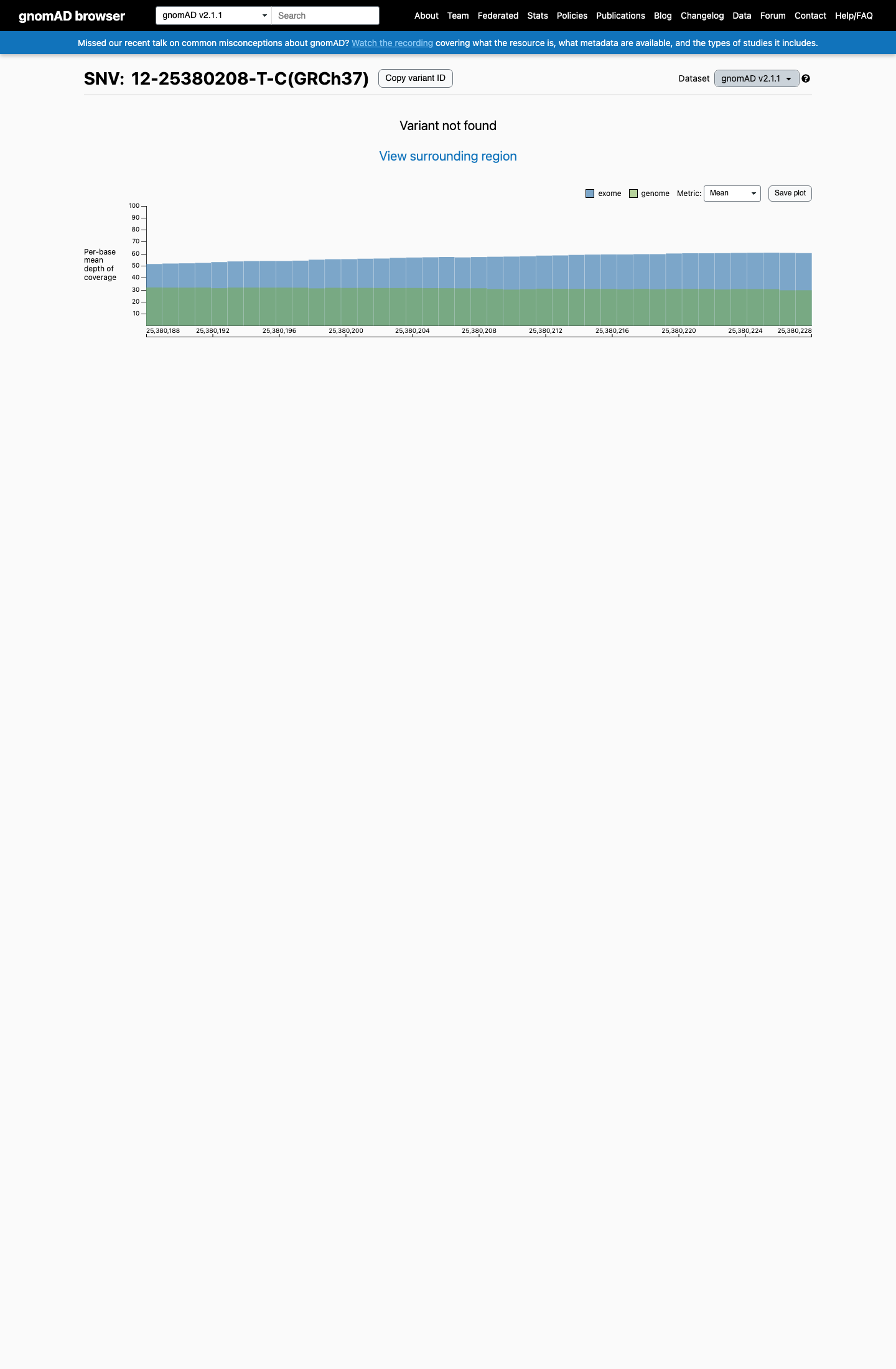

gnomAD v2.1

Absent from gnomAD v2.1.

gnomAD-Canada

Absent from gnomAD-Canada v1.0.

SpliceAI score
0.040 maximum delta

Recorded SpliceAI maximum delta score: 0.040. Refer to the recorded PP3/BP4 rationale for interpretation.

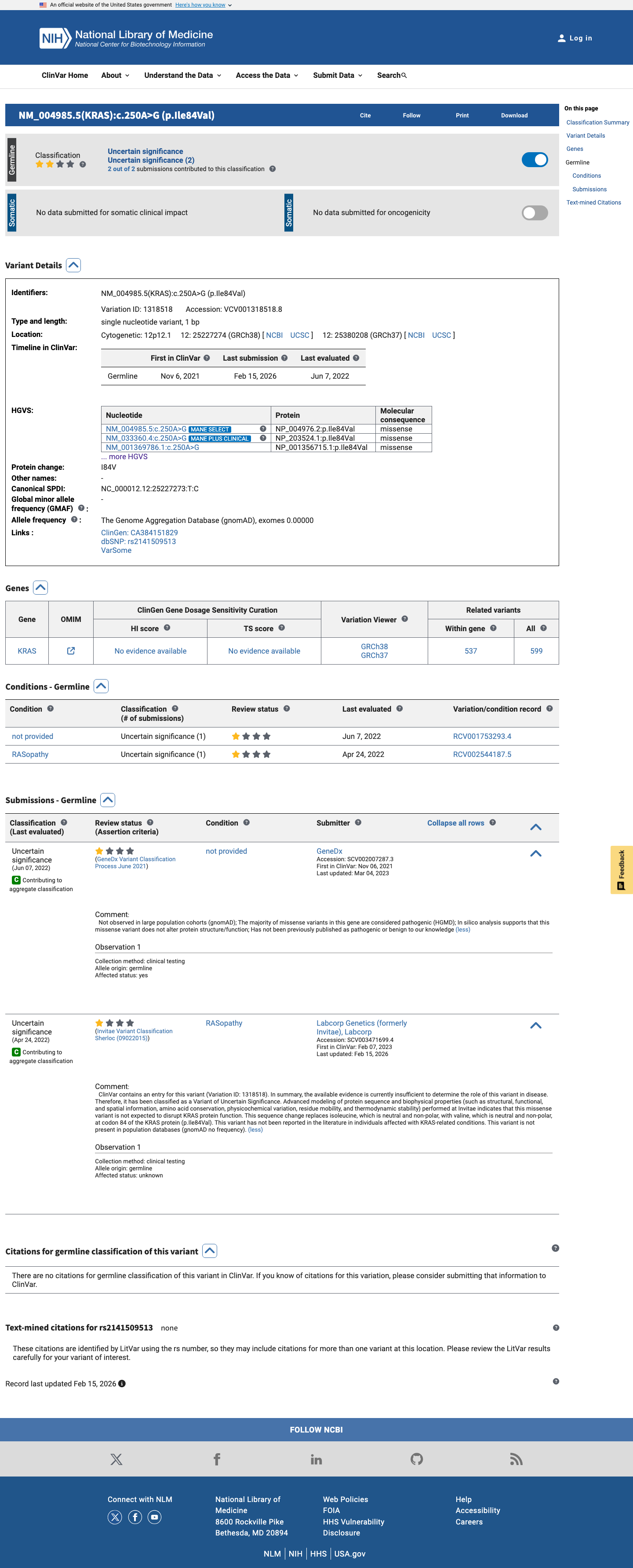

ClinVar submissions
2 reported laboratory submissions

2 Uncertain significance. ClinVar API review status: criteria provided, multiple submitters, no conflicts.

Context only ClinVar ↗

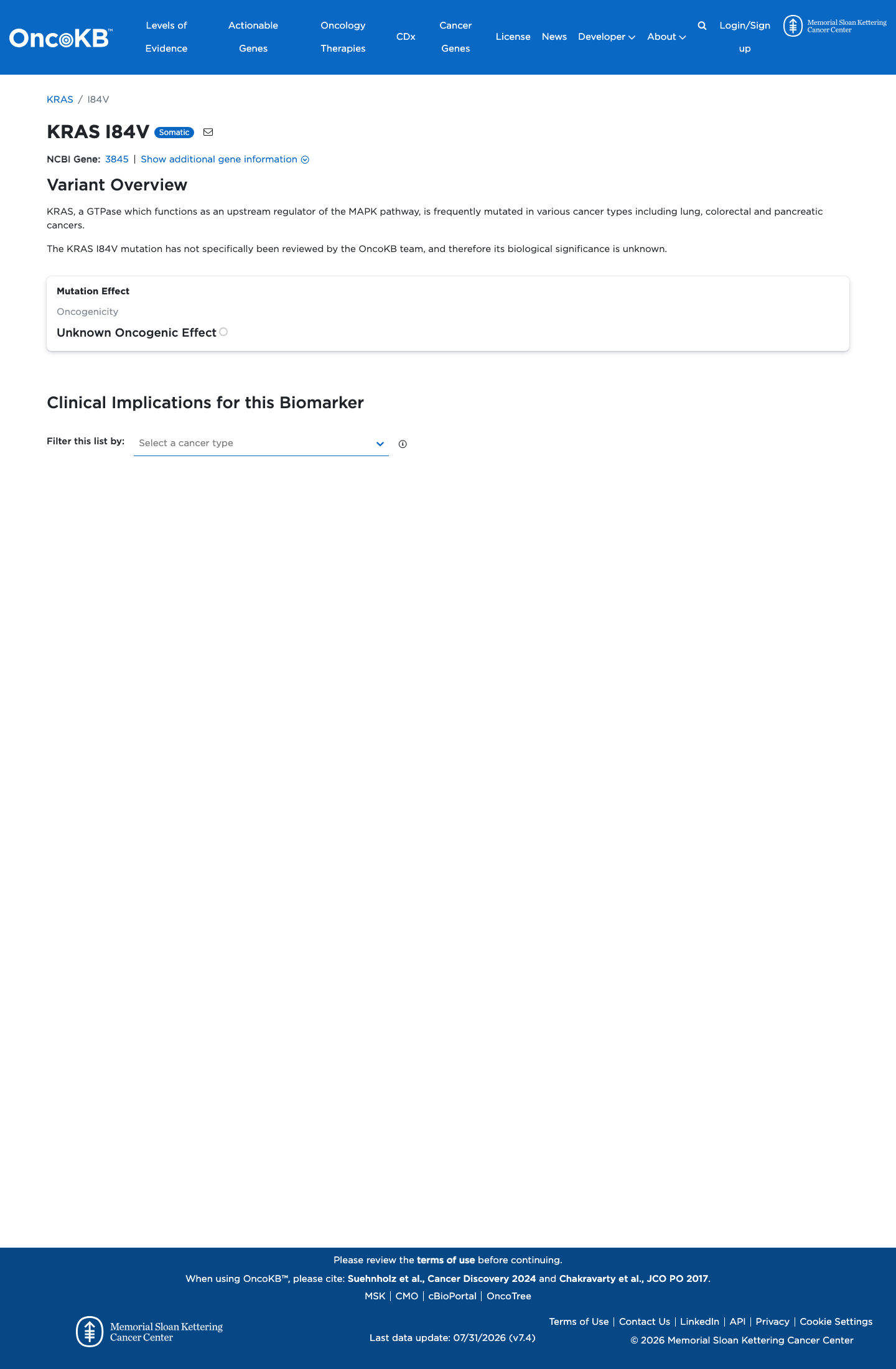

Functional evidence
Statement recorded

OncoKB did not identify variant-specific reviewed functional evidence for this variant; gene-level curated context is available for reviewer follow-up. KRAS, a GTPase which functions as an upstream regulator of the MAPK pathway, is frequently mutated in various cancer types including lung, colorectal

No listed criterion applied OncoKB ↗
COSMIC
Cancer Hotspots
Somatic evidence
No matching record reported

This variant has not previously been reported in somatic cancers (COSMIC).

Cancer Hotspots

This variant does not lie in a statistically significant hotspot.

For specialists

Technical detail

ACMG/AMP criteria under ClinGen KRAS VCEP v2.3, with the data and sources behind each one.

28 criteria with recorded statuses: 1 met · 8 not met · 13 not assessed · 6 not applicable. Open any row for the full reasoning, the rule and the evidence behind it.

Met Not met Not assessed Not applicable

Variant under adjudication: NM_033360.3:c.250A>G (KRAS) -> NP_203524.1:p.(Ile84Val); ClinVar reports the same c.250A>G (p.Ile84Val) designation on the VCEP-preferred transcript NM_004985.5, and the variant lies in exon 3, which is shared between the KRAS4A (NM_033360.3) and KRAS4B (NM_004985.5) isoforms, so transcript relevance is satisfied and does not alter these criteria.

Governing framework: ClinGen RASopathy Expert Panel Specifications to the ACMG/AMP Variant Interpretation Guidelines for KRAS Version 2.3 (CSPEC doc 643243114, framework_mode = vcep, precedence rank 1); generic ACMG/AMP is not used because an applicable gene-specific specification exists.

The variant is a simple missense substitution with no null-variant consequence, no splicing impact (SpliceAI max delta 0.04), and no protein length change (identical-length Mutalyzer translation, 189 aa). Accordingly, none of the consequence/LOF criteria in this group is met or applicable: PVS1 is declared not applicable by the VCEP (gain-of-function mechanism) and the variant is not a null variant; PM4 is not met because no in-frame indel or stop-loss length change occurs; BP3 is declared not applicable by the VCEP (no known benign repetitive areas in RASopathy genes) and the variant is not an in-frame indel.

The only full-text publication in the case (PMID:28492532, Sherloc) is a general ACMG/AMP refinement methodology paper that does not mention c.250A>G, p.Ile84Val, or the genomic coordinates (grep over full text: 0 matches); it carries no variant-specific consequence evidence and is not cited for any criterion in this group.

Governing framework: ClinGen RASopathy Expert Panel (KRAS v2.3, CSPEC 643243114) was used; no generic ACMG fallback was needed.

The case bundle contains no proband, parental testing, de novo, or segregation evidence whatsoever: a full-text keyword search across the consolidated bundle (de novo, segregation, proband, parent, meiosis, mosaic, paternity, maternity, family) returned zero hits.

PS2, PM6, PP1, and BS4 are all not_assessed because no observation exists to score under the VCEP point/meiosis rules; there is no partial evidence requiring human adjudication.

ClinVar record 1318518 (VCV001318518) is a VUS classification by two clinical laboratories with no criteria or family data; its final classification was not used to infer any criterion.

The only available publication (PMID:28492532, Sherloc methodology paper) contains no variant-specific content and cannot support any criterion in this group.

Targeted family studies (parental testing for de novo assessment including paternity/maternity confirmation, and testing of affected relatives for segregation/non-segregation) are required before any of these criteria can be evaluated.

PS3 not_assessed: no variant-specific functional evidence for KRAS p.Ile84Val from any VCEP-approved assay is present in the case (OncoKB has no reviewed functional data; no functional publications retrieved; COSMIC/hotspots negative). Under RASopathy VCEP v2.3, PS3 could reach Supporting (1 approved assay) or Moderate (>=2 different approved assays) only if such evidence existed.

BS3 not_applicable: the RASopathy VCEP v2.3 explicitly marks BS3 as not applicable, so generic ACMG/AMP BS3 is not adjudicated for this variant.

Governing framework: ClinGen RASopathy Expert Panel v2.3 (CSPEC doc 643243114, precedence rank 1) for KRAS; generic ACMG/AMP not used because an applicable VCEP specification exists.

PS4: not_assessed - no case-control or proband cohort data exists for KRAS c.250A>G (p.Ile84Val); the only literature lead (PMID:28492532) is a methods paper with no variant-specific or case-control content; gnomAD v4.1 shows 1/1,613,834 alleles (AF 6.196e-07) in controls, providing no enrichment signal.

PP4: not_applicable - RASopathy VCEP v2.3 explicitly marks PP4 Not Applicable because the RASopathy phenotype is broad and shared across RAS-MAPK genes.

PP5: not_met - ClinVar VCV001318518 has no expert-panel submission (expert_panel_submissions = 0, review_stars 2, laboratory-only VUS); per policy only an exact-variant expert-panel Pathogenic/Likely pathogenic classification can trigger PP5.

BP5: not_assessed - no proband-level evidence of an alternate molecular basis for disease in a carrier of this variant; the VCEP Bayesian point rule cannot be scored without case annotations.

BP6: not_met - no expert-panel Benign/Likely benign classification exists in ClinVar for this exact variant; laboratory-only VUS submissions never trigger BP6.

No criterion in this group is met; no pathogenic or benign strength is contributed by the phenotype/prevalence group.

PM3: not_applicable - ClinGen RASopathy VCEP v2.3 explicitly marks PM3 Not Applicable for KRAS (autosomal dominant gain-of-function disorder); no recessive/trans mechanism applies.

BP2: not_assessed - the VCEP BP2 points rule cannot be scored because the case bundle contains no proband, family, phase (trans/cis), co-occurrence, or unaffected-carrier observations for NM_033360.3:c.250A>G; ClinVar submissions carry no such detail.

Neither allelic criterion contributes evidence toward classification of this variant; both require observation-level data (phase/co-occurrence) that is entirely absent from this case.

Governing framework: ClinGen RASopathy Expert Panel VCEP KRAS v2.3 (CSPEC doc 643243114); no applicable gene-specific PP3/BP4 lookup spreadsheet beyond the CSPEC ruleset was found in the VCEP materials (only PM1-domain alignment and approved functional studies files are present).

PP3: not met. REVEL 0.294 < VCEP threshold 0.7 (missense path); SpliceAI max delta 0.04 predicts no splice impact and therefore no predicted outcome matches the gain-of-function RASopathy mechanism (splice path). BayesDel unusable (no verified published threshold).

BP4: met at Supporting. REVEL 0.294 <= VCEP threshold 0.3 for missense variants; applied directly per VCEP pre-assignment. SpliceAI no-impact finding is consistent but not double-counted.

BP7: not applicable. c.250A>G is a missense variant (p.Ile84Val); the VCEP BP7 rule is restricted to synonymous/intronic/non-coding variants.

No paper was cited for PP3/BP4/BP7: the only available full text (PMID:28492532, Sherloc) was reviewed and does not mention this variant or any predictor score for it; it is a general ACMG/AMP criteria-refinement methodology paper.

Governing framework: ClinGen RASopathy Expert Panel Specifications for KRAS v2.3 (CSPEC doc 643243114) applies; generic ACMG/AMP was not used for BA1/BS1/BS2/PM2 because the VCEP provides explicit population rules.

BA1 not met: gnomAD v4.1 total AF 0.00006% (1/1,613,834) and highest subpopulation AF (SAS 0.00110%) are far below the VCEP 0.05% stand-alone threshold.

BS1 not met: observed AFs are far below the VCEP 0.025% strong threshold; RASopathy prevalence/penetrance are already encoded in the VCEP threshold.

BS2 not met: zero homozygotes in all gnomAD v4.1 populations and no healthy-adult observations; the single heterozygous v4.1 carrier is not BS2 evidence for an autosomal dominant, high-penetrance RASopathy; VCEP BS2 point scheme (-4/-1) not independently applicable from bundle data.

PM2 not met (strict VCEP 'absent from controls' reading) but flagged for human review: absent from gnomAD v2.1 and gnomAD-Canada, yet present as a single exome allele in gnomAD v4.1 (SAS); if that allele is a sequencing artifact, PM2 Supporting would be met.

Only full-text paper available (PMID:28492532, Sherloc methods paper) was checked and contains no mention of the variant, KRAS, gnomAD, or allele frequency; it is not relevant to population criteria and was not cited.

No criterion was inferred from ClinVar's VUS classification or from submitter-applied criteria; ClinVar submissions were used only as a lead to population data and are not evidence.

Met · 1

BP4 SupportingMet (Supporting): REVEL 0.294 meets the VCEP pre-assigned <=0.3 BP4 threshold for missense variants. Details ▾Hide ▴
Reasoning

The ClinGen RASopathy VCEP KRAS v2.3 specification (CSPEC doc 643243114) pre-assigns BP4 for missense variants when REVEL <= 0.3. The local REVEL v1.3 lookup returns 0.294 for NM_033360.3:c.250A>G (p.Ile84Val), which satisfies REVEL <= 0.3. Per the group mandate, the VCEP pre-assigned code is applied directly. This is consistent with, and not contradicted by, the splice-impact path: SpliceAI max delta score 0.04 predicts no significant splice impact, supporting a benign computational-evidence direction; however, the criterion is met solely on the VCEP REVEL rule and the SpliceAI result is not double-counted as a second BP4 code. BayesDel was not used (no verified published threshold). BP4 met at Supporting strength.

Rule
For missense variants: REVEL <= 0.3.
Evidence considered
  • REVEL score 0.294 (source: revel, local REVEL v1.3 lookup) satisfies VCEP KRAS v2.3 BP4 threshold REVEL <= 0.3 (threshold source: ClinGen RASopathy VCEP KRAS v2.3, cspec doc 643243114) - 0.294 <= 0.3, BP4 met at Supporting.
  • SpliceAI max delta score 0.04 (source: spliceai) predicts no significant splice impact; consistent with BP4 but not counted as an independent code.
  • BayesDel score -0.119893 (source: bayesdel) not applied: no verified published threshold available to this pipeline, treated as insufficiently calibrated.
Still missing
  • BayesDel score (-0.119893) could not be applied because no verified published threshold is available to this pipeline; score treated as not_available (insufficiently calibrated).
Sources

Not met · 8 · evaluated, threshold not reached

PM2 Not met: the variant is present in gnomAD v4.1 as a single South Asian exome allele (AF 6.2e-07), failing the VCEP absent-from-controls requirement. Flagged for human review: the lone allele may be a sequencing artifact (absent in gnomAD v2.1), in which case PM2 would be met. Details ▾Hide ▴
Reasoning

Governing framework: ClinGen RASopathy VCEP (KRAS v2.3) defines PM2 (Supporting) as 'The variant must be absent from controls (gnomAD).' The variant is absent from gnomAD v2.1 (GRCh37) and gnomAD-Canada v1.0, but it IS present in gnomAD v4.1 (GRCh38) as a single exome allele in the South Asian population (AC=1/AN=91,076; total AC=1/AN=1,613,834; AF=6.196e-07; 0 homozygotes; genome AC/AN=0). Under a strict reading of the VCEP 'absent from controls' requirement, presence of the single v4.1 allele means PM2 is not met. This is a borderline database-version/threshold artifact: the variant was absent in gnomAD v2.1 (the version contemporaneous with the VCEP rule) and the sole v4.1 allele is exome-only (genome AN=0), raising the possibility of a sequencing artifact. Human review is recommended: if the single allele is confirmed as an artifact, the variant would be absent from controls and PM2 (Supporting) would be met. ClinVar submissions (SCV003471699, Labcorp) applied PM2 citing 'not present in population databases (gnomad no frequency)', but this reflects older gnomAD data and is not used here as evidence; the adjudication is based on current gnomAD v4.1 counts.

Rule
The variant must be absent from controls (gnomAD) (ClinGen RASopathy VCEP KRAS v2.3)
Evidence considered
  • gnomad_v4: present, 1 allele total (SAS 1/91,076), AF 6.196e-07, 0 homozygotes, exome-only (genome AN=0)
  • gnomad_v2: variant absent
  • gnomad_canada: variant absent
  • cspec: RASopathy VCEP v2.3 PM2 rule - variant must be absent from controls (gnomAD)
Still missing
  • Confirm whether the single gnomAD v4.1 South Asian exome allele (12-25227274-T-C) is a sequencing artifact; if artifact-confirmed, PM2 (Supporting) becomes met.
  • gnomAD v4.1 genome AC/AN = 0 and grpmax_faf = null in the scrape; population-restricted allele counts could not be further verified.
  • VCEP 'absent from controls' is stricter than a low-frequency threshold; no frequency cutoff is given by the VCEP to rescue PM2 for a single observed allele.
Sources
PM4 Not met: the change is missense (p.Ile84Val) with no protein length change - the 189-amino-acid protein is unchanged. Details ▾Hide ▴
Reasoning

PM4 is applicable in the governing ClinGen RASopathy VCEP KRAS v2.3 framework (applicability "Applicable"; Moderate rule: "No known repetitive areas in gene. Use as described."; instructions: "Protein length changes due to in-frame deletions/insertions in a non-repeat region or stop-loss variants."). The CSPEC confirms KRAS has no known repetitive areas, so the repeat-region restriction does not limit PM4 for this gene. However, the criterion requires an actual protein length change (in-frame deletion/insertion or stop-loss variant). NM_033360.3:c.250A>G is a single-nucleotide missense substitution changing codon 84 isoleucine to valine (p.Ile84Val); the Mutalyzer translation of the variant transcript shows an identical-length protein (189 aa, same terminal stop) with only the Ile->Val change at residue 84, i.e., no in-frame indel and no stop-loss. SpliceAI reports no significant splicing impact (max delta score = 0.04), providing no evidence of an exon-skipping or length-altering transcript consequence. Because no protein length change occurs, PM4 is not met.

Rule
Protein length changes due to in-frame deletions/insertions in a non-repeat region or stop-loss variants. (ClinGen RASopathy VCEP KRAS v2.3, PM4 Moderate: "No known repetitive areas in gene. Use as described.")
Evidence considered
  • cspec: PM4 applicability "Applicable"; rule "No known repetitive areas in gene. Use as described."; instructions "Protein length changes due to in-frame deletions/insertions in a non-repeat region or stop-loss variants."
  • prefetch normalization (Mutalyzer): variant protein translation shows Ile84Val with identical protein length (189 aa, unchanged stop) - no length change
  • spliceai: max delta score 0.04 - no predicted splicing/length-altering consequence
Sources
PP3 Not met: REVEL 0.294 versus the VCEP >=0.7 threshold for missense variants. Details ▾Hide ▴
Reasoning

Governing framework is the ClinGen RASopathy Expert Panel VCEP specification for KRAS v2.3 (CSPEC doc 643243114), which pre-assigns PP3 for missense variants only when REVEL >= 0.7 and requires that any predicted splicing impact match the (gain-of-function) disease mechanism. REVEL score for NM_033360.3:c.250A>G is 0.294, well below the 0.7 threshold, so the missense in-silico path does not meet PP3. On the splice-impact path, SpliceAI reports max delta score 0.04 (DS_AG 0.0, DS_AL 0.0, DS_DG 0.04, DS_DL 0.04) with all four delta scores <= 0.04, i.e. no significant splice impact predicted, so no splice-altering outcome exists that could match the disease mechanism. BayesDel score (-0.119893) was considered but is treated as insufficiently calibrated because no verified published threshold is available to this pipeline, so it cannot support PP3. PP3 is therefore not met on either sub-path.

Rule
For missense variants: REVEL >= 0.7. For splicing impact, predicted outcome must match disease mechanism.
Evidence considered
  • REVEL score 0.294 (source: revel, local REVEL v1.3 lookup) compared against VCEP KRAS v2.3 PP3 threshold REVEL >= 0.7 (threshold source: ClinGen RASopathy VCEP KRAS v2.3, cspec doc 643243114) - 0.294 < 0.7, PP3 not met on missense path.
  • SpliceAI max delta score 0.04 (DS_AG 0.0, DS_AL 0.0, DS_DG 0.04, DS_DL 0.04; source: spliceai, SpliceAI Lookup for NM_033360.3:c.250A>G) - no significant splice impact predicted, so no splice outcome matches the gain-of-function RASopathy mechanism; PP3 not met on splice path.
  • BayesDel score -0.119893 (source: bayesdel) not applied: no verified published threshold available to this pipeline, treated as insufficiently calibrated.
Still missing
  • BayesDel score (-0.119893) could not be applied because no verified published threshold is available to this pipeline; score treated as not_available (insufficiently calibrated).
Sources
PP5 Not met: no ClinVar expert-panel Pathogenic/Likely pathogenic classification exists - only two laboratory VUS submissions (GeneDx, Labcorp). Details ▾Hide ▴
Reasoning

PP5 requires an exact-variant ClinVar expert-panel (expert panel) classification of Pathogenic/Likely pathogenic. The governing RASopathy VCEP v2.3 marks PP5 Not Applicable, and the global PP5 policy applies it only when a ClinVar expert-panel classification exists (ordinary laboratory submissions and aggregate labels never trigger PP5). ClinVar VCV001318518 has expert_panel_submissions = 0 (expert_panels = {}), review_stars = 2, and a combined classification of Uncertain significance from two clinical-testing laboratories (GeneDx, Labcorp), neither of which is an expert panel (is_expert_panel = false). No expert-panel Pathogenic/Likely pathogenic classification exists for this exact variant, so PP5 is not met.

Rule
Global PP5 policy: exact-variant ClinVar expert-panel classification (Pathogenic/Likely pathogenic) required; RASopathy VCEP v2.3 marks PP5 Not Applicable and is overridden only when such an expert-panel classification exists
Evidence considered
  • CSPEC RASopathy VCEP v2.3 rule payload: PP5 applicability = Not Applicable
  • ClinVar VCV001318518: classification Uncertain significance, review_stars 2, expert_panels {}, expert_panel_submissions 0; submissions SCV002007287 (GeneDx) and SCV003471699 (Labcorp) both is_expert_panel = false, both Uncertain significance
Sources
BA1 Not met: gnomAD v4.1 AF 6.2e-07 (0.00006%) versus the >=0.05% BA1 threshold - roughly 800x below. Details ▾Hide ▴
Reasoning

Governing framework: ClinGen RASopathy VCEP (KRAS v2.3, CSPEC doc 643243114) defines BA1 as gnomAD filtering allele frequency >= 0.05% (Stand Alone). The variant is present in gnomAD v4.1 at total AF = 6.196e-07 (0.00006%, 1/1,613,834 alleles) and is absent from gnomAD v2.1 and gnomAD-Canada v1.0. The highest observed population frequency is South Asian (AF = 1.098e-05, 0.00110%, 1/91,076 alleles), still ~45x below the 0.05% BA1 threshold. Total AF is ~800x below threshold. BA1 is not met regardless of whether total AF or the highest subpopulation AF is used; no population-frequency threshold artifact applies.

Rule
GnomAD filtering allele frequency >= 0.05% (ClinGen RASopathy VCEP KRAS v2.3)
Evidence considered
  • gnomad_v4: total AF 6.196e-07 (0.00006%), 1/1,613,834 alleles; best subpopulation South Asian AF 1.098e-05 (0.00110%)
  • gnomad_v2: variant absent
  • cspec: RASopathy VCEP v2.3 BA1 rule threshold 0.05%
Still missing
  • gnomAD v4.1 scrape does not expose the legacy gnomAD 'filtering allele frequency' metric; total AF and population-specific AF were used as proxies. Impact negligible given AF is 2-3 orders of magnitude below the 0.05% threshold.
Sources
BS1 Not met: gnomAD v4.1 AF 6.2e-07 versus the >=0.025% BS1 threshold - roughly 400x below. Details ▾Hide ▴
Reasoning

Governing framework: ClinGen RASopathy VCEP (KRAS v2.3) defines BS1 as gnomAD filtering allele frequency >= 0.025% (Strong). Observed gnomAD v4.1 total AF = 6.196e-07 (0.00006%) and highest subpopulation AF (South Asian) = 1.098e-05 (0.00110%) are both far below the 0.025% threshold (total AF ~400x below). Variant is absent from gnomAD v2.1 and gnomAD-Canada. BS1 is not met. Disease prevalence/penetrance considerations for RASopathy (autosomal dominant, high penetrance with variable expressivity) do not alter this outcome because the VCEP has already encoded these into the 0.025% threshold, which the observed frequency does not approach.

Rule
GnomAD filtering allele frequency >= 0.025% (ClinGen RASopathy VCEP KRAS v2.3)
Evidence considered
  • gnomad_v4: total AF 6.196e-07 (0.00006%); highest subpopulation (SAS) AF 1.098e-05 (0.00110%)
  • gnomad_v2: variant absent
  • cspec: RASopathy VCEP v2.3 BS1 rule threshold 0.025%
Still missing
  • Legacy gnomAD 'filtering allele frequency' metric not exposed in the v4.1 scrape; total/population AF used as proxy. Negligible impact given ~400x headroom below threshold.
Sources
BS2 Not met: no homozygous carriers in any population database; the single heterozygous carrier is not healthy-adult BS2 evidence. Details ▾Hide ▴
Reasoning

Governing framework: ClinGen RASopathy VCEP (KRAS v2.3) implements BS2 as a points-based rule (-4 points = Strong, -1 point = Supporting), replacing the generic ACMG 'observed in healthy adult' formulation; the underlying point scheme is not fully reconstructible from the case bundle. Independent of the point scheme, the population data contain zero homozygous observations in any gnomAD v4.1 population (including the single-carrier South Asian subpopulation) and no healthy-adult/homozygous observations in gnomAD v2.1 or gnomAD-Canada. The single heterozygous carrier (1/1,613,834 alleles, gnomAD v4.1) is not BS2 evidence: RASopathy is autosomal dominant with high but variable penetrance, and gnomAD is a general-population cohort without confirmed unaffected phenotype. No available data satisfies any BS2 threshold; BS2 is not met.

Rule
Points-based: -4 points (Strong), -1 point (Supporting) (ClinGen RASopathy VCEP KRAS v2.3)
Evidence considered
  • gnomad_v4: 0 homozygotes across all populations (total AN 1,613,834)
  • gnomad_v2: variant absent
  • gnomad_canada: variant absent
  • cspec: RASopathy VCEP v2.3 BS2 points rule
Still missing
  • RASopathy VCEP BS2 point-scheme details (-4/-1 points) could not be independently applied from the bundle; adjudication rests on absence of homozygous and healthy-adult observations, which fails any BS2 formulation.
Sources
BP6 Not met: no ClinVar expert-panel Benign/Likely benign classification exists - only two laboratory VUS submissions. Details ▾Hide ▴
Reasoning

BP6 requires an exact-variant ClinVar expert-panel (expert panel) classification of Benign/Likely benign. The governing RASopathy VCEP v2.3 marks BP6 Not Applicable, and the global BP6 policy applies it only when a ClinVar expert-panel classification exists (ordinary laboratory submissions and aggregate labels never trigger BP6). ClinVar VCV001318518 has expert_panel_submissions = 0 (expert_panels = {}), review_stars = 2, and a combined classification of Uncertain significance from two clinical-testing laboratories (GeneDx, Labcorp), neither of which is an expert panel (is_expert_panel = false). No expert-panel Benign/Likely benign classification exists for this exact variant, so BP6 is not met.

Rule
Global BP6 policy: exact-variant ClinVar expert-panel classification (Benign/Likely benign) required; RASopathy VCEP v2.3 marks BP6 Not Applicable and is overridden only when such an expert-panel classification exists
Evidence considered
  • CSPEC RASopathy VCEP v2.3 rule payload: BP6 applicability = Not Applicable
  • ClinVar VCV001318518: classification Uncertain significance, review_stars 2, expert_panels {}, expert_panel_submissions 0; submissions SCV002007287 (GeneDx) and SCV003471699 (Labcorp) both is_expert_panel = false, both Uncertain significance
Sources

Not assessed · 13 · no assessment recorded

PS1 Not assessed: insufficient evidence was available to evaluate this criterion. Details ▾Hide ▴
Reasoning

PS1 could not be assessed because its agent did not produce valid output.

Still missing
  • attempt 1: evidence_refs must contain only source_registry keys
  • attempt 2: evidence_refs must contain only source_registry keys
  • attempt 3: evidence_refs must contain only source_registry keys
PS2 Not assessed: no confirmed de novo observation (no parental testing or confirmation), so zero points under the VCEP de novo rule. Details ▾Hide ▴
Reasoning

No proband observation of NM_033360.3:c.250A>G (p.Ile84Val) with confirmed de novo origin is present anywhere in the case bundle. There is no parental testing result, no paternity/maternity confirmation, and no phenotype-consistency assessment tied to a de novo occurrence. The governing ClinGen RASopathy VCEP (KRAS v2.3) PS2 rule is point-based (4 points = Very Strong, 2 points = Strong, 1 point = Moderate, per the SVI de novo criteria proposal referenced by the CSPEC entry); with zero de novo observations, zero points can be assigned and the criterion cannot be evaluated. ClinVar record 1318518 (two germline VUS submissions) was reviewed and contains no de novo assertion; the ClinVar VUS classification is not evidence for any criterion.

Evidence considered
  • ClinGen RASopathy VCEP KRAS v2.3 CSPEC rule: PS2 point-based (4/2/1 points for Very Strong/Strong/Moderate) - no points applicable with no de novo observation
  • ClinVar record 1318518 (VCV001318518): 2 germline submissions (GeneDx, Labcorp), both Uncertain significance, no criteria or de novo/parental data reported
  • PMID:28492532 full text searched: methodology paper (Sherloc), no variant-specific or proband data
Still missing
  • No proband carrying the variant with a documented de novo occurrence
  • No parental testing results demonstrating both biological parents are negative for the variant
  • No paternity/maternity confirmation
  • No phenotype consistency assessment for a de novo occurrence in the proband
Sources
PS3 Not assessed: no VCEP-approved functional assay result (RAS/MEK/ERK activation) exists for this exact variant. Details ▾Hide ▴
Reasoning

Governing framework: ClinGen RASopathy VCEP (KRAS) v2.3 (cspec doc 643243114). PS3 is applicable, but the VCEP strength calibration caps it: Supporting = one approved assay, Moderate = two or more different approved assays (default Pathogenic Strong from generic ACMG is not available under this framework). Approved assays for KRAS (SVI-RASopathy-VCEP-V2-Approved-Functional-Studies.xlsx) are pathway-specific RAS Activation, MEK Activation, and ERK Activation assays (assay-validation PMIDs for KRAS RAS activation: 20949621, 23059812). No variant-specific functional study of KRAS p.Ile84Val (c.250A>G) from any approved assay (or any functional assay at all) is present in this case: OncoKB classifies KRAS I84V as 'Unknown Oncogenic Effect' and explicitly states no variant-specific functional evidence has been reviewed (no citations); COSMIC has no somatic report of the variant; Cancer Hotspots is negative; and the only publication in the case (PMID 28492532, Sherloc methods paper, retrieved via ClinVar submission SCV003471699) contains no mention of KRAS, I84V, or functional assays in its full text. Evidence is therefore insufficient to apply PS3 at any strength; the criterion is not assessed, with the gap being the absence of a VCEP-approved assay result for this exact variant (>=1 approved assay for Supporting; >=2 different approved assays for Moderate). PS3 is not inferred from ClinVar VUS classifications or from any other source's final classification.

Rule
RASopathy VCEP v2.3 PS3: 'Well-established in vitro or in vivo functional studies supportive of a damaging effect on the gene or gene product. Approved assays are available in the supplemental materials.' Strength: Supporting - 'One approved assay.'; Moderate - 'Two or more different approved assays.'; Strong/Stand Alone - Not applicable.
Evidence considered
  • cspec: RASopathy VCEP v2.3 PS3 rule - applicable; Supporting = one approved assay; Moderate = two or more different approved assays; Strong/Stand Alone not applicable.
  • vcep_svi_rasopathy_vcep_v2_approved_functional_studies: Defines approved assays (RAS/MEK/ERK activation, pathway-specific for KRAS) and per-gene assay-validation PMIDs (KRAS RAS activation: 20949621, 23059812); contains no entry indicating I84V was tested.
  • oncokb: KRAS I84V = Unknown Oncogenic Effect; is_variant_specific = false; not_reviewed = true; no variant-specific functional evidence and no citation PMIDs returned.
  • PMID:28492532: Sherloc methods paper (Nykamp et al., Genet Med 2017); full text reviewed - zero occurrences of KRAS/Ile84/functional/assay; provides no variant-specific functional data.
  • cosmic/hotspots (scanned): variant absent from COSMIC and not a statistically significant cancer hotspot - no functional/somatic context available.
Still missing
  • No functional study of KRAS p.Ile84Val (c.250A>G) using a VCEP-approved assay (RAS Activation, MEK Activation, or ERK Activation) is available in the case evidence; PS3 Supporting requires >=1 approved assay and Moderate requires >=2 different approved assays demonstrating a damaging effect on RAS/MAPK pathway function.
Sources
cspec ↗oncokb ↗vcep_svi_rasopathy_vcep_v2_approved_functional_studiesPMID:28492532 ↗
PS4 Not assessed: no case-control or proband-cohort enrichment data exists; the single gnomAD allele (AF 6.2e-07) provides no enrichment signal. Details ▾Hide ▴
Reasoning

PS4 (prevalence in affected individuals / case-control enrichment) is governed by the ClinGen RASopathy VCEP v2.3 point rule (>=1 point Supporting, >=3 Moderate, >=5 Strong), which requires case-level or case-control enrichment data. No such data exists in this case bundle: the only literature lead (PMID:28492532, Sherloc) is a generic ACMG/AMP refinement methods paper whose full text contains no mention of KRAS, c.250A>G, p.Ile84Val, or any case-control cohort; no proband counts or odds ratios are reported anywhere. ClinVar (VCV001318518) contains two laboratory submissions both classified Uncertain significance with no case-level counts, and gnomAD v4.1 shows a single allele (AF 6.196e-07, 1/1,613,834) in controls, which provides no enrichment signal. With no case-control study or proband cohort data available, PS4 cannot be scored; the criterion is returned not_assessed pending such evidence.

Rule
ClinGen RASopathy Expert Panel v2.3 (CSPEC doc 643243114): PS4 >=5 points = Strong, >=3 points = Moderate, >=1 point = Supporting (point-based case-control enrichment rule)
Evidence considered
  • CSPEC RASopathy VCEP v2.3 rule payload: PS4 >=1 point Supporting / >=3 Moderate / >=5 Strong (point-based case-control enrichment rule)
  • ClinVar VCV001318518: classification Uncertain significance, review_stars 2, 2 laboratory submissions (GeneDx SCV002007287, Labcorp SCV003471699), both VUS, no case-level data
  • gnomAD v4.1: AF 6.196e-07 (1/1,613,834 alleles), 0 homozygotes; absent from gnomAD v2.1 and gnomAD-Canada (control-frequency context only, no enrichment signal)
  • PMID:28492532 full text reviewed: no mention of KRAS, c.250A>G, p.Ile84Val, or case-control enrichment
Still missing
  • No case-control or cohort study for KRAS c.250A>G (p.Ile84Val) reporting variant counts in affected individuals versus controls
  • No proband counts or odds ratio/effect size data; ClinVar submissions carry no case-level counts
  • PMID:28492532 was flagged as a PS4 candidate lead but contains no variant-specific or case-control content and must not be used as PS4 evidence
Sources
PM1 Not assessed: insufficient evidence was available to evaluate this criterion. Details ▾Hide ▴
Reasoning

PM1 could not be assessed because its agent did not produce valid output.

Still missing
  • attempt 1: evidence_refs must contain only source_registry keys
  • attempt 2: evidence_refs must contain only source_registry keys
  • attempt 3: evidence_refs must contain only source_registry keys
PM5 Not assessed: insufficient evidence was available to evaluate this criterion. Details ▾Hide ▴
Reasoning

PM5 could not be assessed because its agent did not produce valid output.

Still missing
  • attempt 1: evidence_refs must contain only source_registry keys
  • attempt 2: evidence_refs must contain only source_registry keys
  • attempt 3: evidence_refs must contain only source_registry keys
PM6 Not assessed: no de novo occurrence is reported with or without parental confirmation, so the VCEP point rule cannot be scored. Details ▾Hide ▴
Reasoning

No de novo occurrence of the variant is reported with or without parental confirmation, so the VCEP PM6 point rule (2 points = Strong, 1 point = Moderate, 0.5 points = Supporting for assumed de novo without parental confirmation) cannot be scored. No case report, cohort, or ClinVar submission in the bundle asserts a de novo origin for c.250A>G.

Evidence considered
  • ClinGen RASopathy VCEP KRAS v2.3 CSPEC rule: PM6 point-based (2/1/0.5 points for Strong/Moderate/Supporting) - no points applicable with no de novo observation
  • ClinVar record 1318518: no de novo assertion in either submission
  • PMID:28492532 full text searched: no variant-specific case data
Still missing
  • No de novo observation even without parental confirmation
  • No case report or cohort documenting this exact variant as de novo in a proband
  • No maternal/paternal age or recurrence data relevant to de novo occurrence
Sources
PP1 Not assessed: no segregation data - zero informative meioses versus the >=3 required for Supporting. Details ▾Hide ▴
Reasoning

No segregation data exist: no affected relatives were tested and there are zero informative meioses reported for this variant. The VCEP PP1 rule requires >=3 informative meioses for Supporting, >=5 for Moderate, and >=7 for Strong; the available evidence does not reach the threshold for any strength. No family history or co-segregation information is present in the case bundle, ClinVar record 1318518, or the available literature.

Evidence considered
  • ClinGen RASopathy VCEP KRAS v2.3 CSPEC rule: PP1 requires >=3 (Supporting) / >=5 (Moderate) / >=7 (Strong) informative meioses - none available
  • ClinVar record 1318518: no segregation assertions
  • PMID:28492532 full text searched: no segregation data
Still missing
  • No affected family members tested for the variant
  • Zero informative meioses available
  • No family history information in the case bundle
Sources
PP2 Not assessed: insufficient evidence was available to evaluate this criterion. Details ▾Hide ▴
Reasoning

PP2 could not be assessed because its agent did not produce valid output.

Still missing
  • attempt 1: evidence_refs must contain only source_registry keys
  • attempt 2: evidence_refs must contain only source_registry keys
  • attempt 3: evidence_refs must contain only source_registry keys
BS4 Not assessed: no affected individual tested and found not to carry the variant - not even one non-segregation meiosis exists. Details ▾Hide ▴
Reasoning

No non-segregation observation is available: there are no affected individuals reported who were tested and found NOT to carry the variant. The VCEP BS4 rule is notably permissive (one informative meiosis demonstrating non-segregation is sufficient for Strong), but even a single such observation is absent from the case bundle, ClinVar record 1318518, and the available literature.

Evidence considered
  • ClinGen RASopathy VCEP KRAS v2.3 CSPEC rule: BS4 Strong requires only one informative meiosis (non-segregation) - none available
  • ClinVar record 1318518: no segregation or non-segregation data
  • PMID:28492532 full text searched: no non-segregation observations
Still missing
  • No affected family members tested and found negative for the variant (non-segregation)
  • No informative meiosis demonstrating absence of the variant in an affected individual
Sources
BP1 Not assessed: insufficient evidence was available to evaluate this criterion. Details ▾Hide ▴
Reasoning

BP1 could not be assessed because its agent did not produce valid output.

Still missing
  • attempt 1: evidence_refs must contain only source_registry keys
  • attempt 2: evidence_refs must contain only source_registry keys
  • attempt 3: evidence_refs must contain only source_registry keys
BP2 Not assessed: no proband or family observations exist (no phase, co-occurrence, or carrier data), so zero VCEP points can be scored. Details ▾Hide ▴
Reasoning

Under the governing ClinGen RASopathy VCEP v2.3, BP2 is a points-based benign-observation rule (Supporting at >= -1 point, Moderate at >= -2 points, Strong at >= -4 points) rather than the generic ACMG trans/cis phrasing. The consolidated case-evidence bundle contains no proband-level or family observations of any kind for this variant: no trans/cis phase information, no co-occurrence with a pathogenic variant, no unaffected-carrier or unaffected-relative observations, and no segregation data. ClinVar (variation ID 1318518) holds two germline Uncertain-significance submissions (GeneDx SCV002007287; Labcorp SCV003471699) with no phase, family, or phenotype detail. With zero observations, no points can be accrued and BP2 cannot be met at any strength; the evidence required to score the rule is absent rather than merely below threshold. The only available publication (PMID:28492532, Sherloc) is a criteria-refinement methods paper that does not mention c.250A>G or p.Ile84Val, so it supplies no BP2-relevant observation.

Rule
VCEP BP2: >= -1 point Supporting; >= -2 points Moderate; >= -4 points Strong (0 points accrued - no benign-observation data)
Evidence considered
  • ClinGen RASopathy VCEP v2.3 (CSPEC doc 643243114): BP2 points rule thresholds (Supporting >= -1, Moderate >= -2, Strong >= -4 points); no qualifying observation data exist to score
  • ClinVar variation 1318518: 2 germline Uncertain-significance submissions (SCV002007287 GeneDx; SCV003471699 Labcorp), both 'criteria provided, single submitter', conditions RASopathy/not provided; no phase, family, or co-occurrence information reported
Still missing
  • No proband or family observation data in the case bundle: trans/cis phase of c.250A>G with any second KRAS variant is unknown
  • No co-occurrence observations (variant observed in trans with a pathogenic variant, or in cis with a pathogenic variant) are documented
  • No unaffected-carrier / unaffected-relative observations available to accrue VCEP BP2 points; the VCEP point-assignment table is not included in the bundle, so even partial observations could not be fully scored without it
Sources
BP5 Not assessed: no case-level evidence of an alternate molecular basis for disease in a carrier of this variant. Details ▾Hide ▴
Reasoning

BP5 (variant observed in a case with an alternate molecular basis for disease) is governed by the ClinGen RASopathy VCEP v2.3 Bayesian point rule (>= -1 point Supporting, >= -2 Moderate, >= -4 Strong). The point system requires proband-level observations documenting an alternate molecular explanation for the phenotype in a carrier of this variant. No such data exists in the case bundle: no proband case reports, no alternate-cause annotations in either ClinVar submission (both VUS, clinical testing only), and no relevant literature. With no case-level evidence of an alternate molecular basis, BP5 cannot be scored and is returned not_assessed.

Rule
ClinGen RASopathy Expert Panel v2.3 (CSPEC doc 643243114): BP5 >= -1 point = Supporting, >= -2 points = Moderate, >= -4 points = Strong (point-based alternate-molecular-basis rule)
Evidence considered
  • CSPEC RASopathy VCEP v2.3 rule payload: BP5 >= -1 point Supporting / >= -2 Moderate / >= -4 Strong (Bayesian point rule)
  • ClinVar VCV001318518: 2 submissions, both Uncertain significance, clinical testing only, no alternate molecular basis annotations
Still missing
  • No proband-level evidence that an alternate molecular basis for disease was identified in any individual carrying KRAS c.250A>G
  • No ClinVar submission or publication provides case annotations (e.g., second variant, alternative diagnosis) relevant to the BP5 point rule
Sources
Not applicable · 6· recorded as not applicable Show reasons ▾Hide reasons ▴
PVS1 VCEPNot applicable: RASopathy disease mechanism is gain-of-function, and this missense change is not a null variant (no nonsense, frameshift, or splice-site consequence). Details ▾Hide ▴
Reasoning

The governing framework is the ClinGen RASopathy Expert Panel (VCEP) specification for KRAS v2.3 (CSPEC doc 643243114, precedence rank 1), which explicitly marks PVS1 as "Not applicable" (instructionsToUse: "Not applicable."). The RASopathy disease mechanism is gain-of-function, as stated in the same CSPEC under BP1 ("Given the disease mechanism is gain-of-function for RASopathies..."), so null-variant/LOF reasoning does not apply to KRAS in this framework. Independently of the framework, the variant NM_033360.3:c.250A>G is a single-nucleotide missense substitution (NP_203524.1:p.(Ile84Val)) located in exon 3; it is not a null variant (no nonsense, frameshift, canonical +-1/2 splice-site, initiation-codon, or whole/multi-exon deletion consequence), so it does not fall into any PVS1 null-variant bucket under the generic SVI PVS1 framework either (variant-level assessment: consequence_class = missense, apply_generic_pvs1_framework = false). PVS1 is therefore not applicable and not applied.

VCEP rule
Not applicable (ClinGen RASopathy VCEP KRAS v2.3: PVS1 applicability "Not applicable"; instructionsToUse "Not applicable.")
Evidence considered
  • cspec: PVS1 applicability "Not applicable" (ClinGen RASopathy VCEP KRAS v2.3, doc 643243114); BP1 note confirming gain-of-function disease mechanism for RASopathies
  • pvs1_variant_assessment: consequence_class = missense; not a null variant; apply_generic_pvs1_framework = false
  • prefetch normalization (Mutalyzer): c.250A>G -> p.(Ile84Val), single amino acid substitution
Sources
cspec ↗pvs1_variant_assessmentPMID:28492532 ↗
PM3 VCEPNot applicable: KRAS RASopathy is autosomal dominant with a gain-of-function mechanism, so the recessive trans-observation rule does not apply. Details ▾Hide ▴
Reasoning

The governing ClinGen RASopathy Expert Panel Specification for KRAS (Version 2.3, CSPEC doc 643243114; framework_mode=vcep, precedence_rank=1) explicitly declares PM3 'Not Applicable'. PM3 in the generic ACMG/AMP framework applies to recessive disorders where the variant is detected in trans with a pathogenic variant (or in cis in certain recessive-gene contexts). KRAS RASopathy is an autosomal dominant, gain-of-function disorder, so the recessive trans-observation rationale does not apply. No biallelic or compound-heterozygous KRAS disease mechanism is established, and the case bundle contains no trans-phase observation for NM_033360.3:c.250A>G (p.Ile84Val). The criterion cannot contribute evidence for this variant.

VCEP rule
PM3: Not Applicable (ClinGen RASopathy VCEP v2.3; no recessive inheritance mechanism for KRAS RASopathy)
Evidence considered
  • ClinGen RASopathy Expert Panel Specifications to the ACMG/AMP Variant Interpretation Guidelines for KRAS Version 2.3 (CSPEC doc 643243114): PM3 listed with applicability 'Not Applicable'; KRAS RASopathy is autosomal dominant gain-of-function
Sources
PP4 VCEPNot applicable: the RASopathy phenotype is broad and shared across RAS-MAPK genes, so gene-specific phenotype evidence is not credited. Details ▾Hide ▴
Reasoning

PP4 (phenotype specificity) is marked Not Applicable by the governing ClinGen RASopathy Expert Panel v2.3 specification for KRAS. The RASopathy phenotype is broad and shared across multiple RAS-MAPK pathway genes, so a phenotype highly specific for a single gene is not credited as independent evidence in this framework. Generic ACMG is not used because an applicable VCEP specification exists (precedence rank 1).

VCEP rule
ClinGen RASopathy Expert Panel v2.3 (CSPEC doc 643243114): PP4 Not Applicable
Evidence considered
  • CSPEC RASopathy VCEP v2.3 rule payload: PP4 applicability = Not Applicable
Sources
BS3 VCEPNot applicable: the RASopathy VCEP excludes benign functional-study evidence (BS3); no such assay is defined for this framework. Details ▾Hide ▴
Reasoning

Governing framework: ClinGen RASopathy VCEP (KRAS) v2.3 (cspec doc 643243114) declares BS3 applicability = 'Not applicable'; the RASopathy VCEP does not use benign functional-study evidence, and the approved functional-studies spreadsheet defines approved assays only for the pathogenic (PS3) direction. Generic ACMG/AMP BS3 is therefore not applied because a gene-specific specification exists and explicitly excludes it. Independently, no well-established in vitro/in vivo functional studies showing no damaging effect exist for this variant in the case evidence (see PS3: no functional data of any kind for KRAS p.Ile84Val), so BS3 could not be met even under generic rules.

VCEP rule
RASopathy VCEP v2.3 BS3: applicability = 'Not applicable'; not used in this gene-specific framework.
Evidence considered
  • cspec: RASopathy VCEP v2.3 BS3 applicability = 'Not applicable' (benign functional-study criterion not used by this framework).
  • vcep_svi_rasopathy_vcep_v2_approved_functional_studies: Approved assays are defined for the damaging-effect (PS3) direction only; no benign functional assay framework is provided.
Sources
cspec ↗vcep_svi_rasopathy_vcep_v2_approved_functional_studiesPMID:28492532 ↗
BP3 VCEPNot applicable: no known benign repetitive regions in RASopathy genes, and the change is missense, not an in-frame indel. Details ▾Hide ▴
Reasoning

The governing ClinGen RASopathy VCEP KRAS v2.3 specification explicitly marks BP3 as "Not applicable" with instructionsToUse: "No known benign repetitive areas in RASopathy genes." The RASopathy Expert Panel has determined that no known benign repetitive regions exist in the RASopathy genes, so BP3 (in-frame deletions/insertions in a repetitive region without a known function) is not used in this framework. Independently, the variant is a missense single-nucleotide substitution (p.Ile84Val), not an in-frame deletion/insertion, so it would not satisfy BP3 under the generic ACMG rule either. BP3 is therefore not applicable and not applied.

VCEP rule
No known benign repetitive areas in RASopathy genes. (ClinGen RASopathy VCEP KRAS v2.3, BP3 applicability "Not applicable")
Evidence considered
  • cspec: BP3 applicability "Not applicable"; instructionsToUse "No known benign repetitive areas in RASopathy genes."
  • prefetch normalization (Mutalyzer): variant is a missense substitution, not an in-frame indel in a repetitive region
Sources
BP7 N/ANot applicable: BP7 applies only to synonymous, intronic, or non-coding variants; this is a missense change (p.Ile84Val). Details ▾Hide ▴
Reasoning

The ClinGen RASopathy VCEP KRAS v2.3 BP7 rule applies to synonymous (silent) variants for which splicing prediction algorithms predict no impact to the splice consensus sequence nor creation of a new splice site AND the nucleotide is not highly conserved, and is also applicable to intronic positions (except canonical splice sites) or non-coding variants. NM_033360.3:c.250A>G is a missense variant (NP_203524.1:p.(Ile84Val); consequence class 'missense' in the pipeline normalization; not a canonical splice-site or intronic/non-coding variant). Because BP7 is defined only for synonymous/intronic/non-coding variants, it is not applicable to this variant and is not assessed on its merits (e.g., conservation of the nucleotide is not evaluated).

Rule
A synonymous (silent) variant for which splicing prediction algorithms predict no impact to the splice consensus sequence nor the creation of a new splice site AND the nucleotide is not highly conserved. This rule is also applicable for intronic positions (except canonical splice sites) or non-coding variants and should be used in conjunction with BP4.
Evidence considered
  • Variant consequence class 'missense' for NM_033360.3:c.250A>G (NP_203524.1:p.(Ile84Val)) - falls outside the synonymous/intronic/non-coding scope of the VCEP KRAS v2.3 BP7 rule (rule source: ClinGen RASopathy VCEP KRAS v2.3, cspec doc 643243114).
Still missing
  • BP7 rule not applicable: variant is missense (p.Ile84Val), not a synonymous/intronic/non-coding variant; nucleotide conservation assessment not required.
Sources

Identifiers

Gene
KRAS
Transcript
NM_033360.3
Coding (HGVS c.)
NM_033360.3:c.250A>G
Protein (HGVS p.)
NP_203524.1:p.(Ile84Val)
GRCh38
chr12:25227274 T>C
GRCh37
chr12:25380208 T>C
ClinVar
1318518

Gene diagram

Every interpreted variant in KRAS, mapped onto the exon structure of NM_033360.3. Select a row to find it on the plot.

KRASNM_033360.3
Fetching transcript structure from UCSC…
gnomAD v4.1 1 / 1,613,834 alleles AF 6.2e-07 · 0 homozygotes
gnomAD v2.1 Allele count data not recorded
gnomAD-Canada v1.0 Allele count data not recorded

By genetic ancestry

gnomAD v4.1

AF 6.2e-07 · 1 / 1,613,834 alleles · 0 hom
South Asian1 / 91,076 1.1e-05
0 alternate alleles recorded in 9 other groups: Remaining individuals, Admixed American, European (Finnish), Amish, East Asian, Middle Eastern, Ashkenazi Jewish, African/African American, European (non-Finnish).

Statements

gnomAD v4.1

This variant is present in gnomAD v4.1 (AF= 6.19642e-07; MAF= 0.00006%, 1/1613834 alleles, homozygotes = 0) and has highest observed frequency in the South Asian population (AF= 1.09798e-05; MAF= 0.00110%, 1/91076 alleles, homozygotes = 0).

gnomAD v2.1

Absent from gnomAD v2.1.

gnomAD-Canada

Absent from gnomAD-Canada v1.0.

SpliceAI and Pangolin

SpliceAI acceptor lossat +302 bp
0.000
SpliceAI acceptor gainat +138 bp
0.000
SpliceAI donor lossat +72 bp
0.040
SpliceAI donor gainat +1 bp
0.040
Pangolin splice lossmagnitude shown
-0.000
Pangolin splice gain
0.020

Other predictors

REVEL
0.294
BayesDel
-0.120

How the predictions were used

BP4 SupportingMet (Supporting): REVEL 0.294 meets the VCEP pre-assigned <=0.3 BP4 threshold for missense variants. Details ▾Hide ▴
Reasoning

The ClinGen RASopathy VCEP KRAS v2.3 specification (CSPEC doc 643243114) pre-assigns BP4 for missense variants when REVEL <= 0.3. The local REVEL v1.3 lookup returns 0.294 for NM_033360.3:c.250A>G (p.Ile84Val), which satisfies REVEL <= 0.3. Per the group mandate, the VCEP pre-assigned code is applied directly. This is consistent with, and not contradicted by, the splice-impact path: SpliceAI max delta score 0.04 predicts no significant splice impact, supporting a benign computational-evidence direction; however, the criterion is met solely on the VCEP REVEL rule and the SpliceAI result is not double-counted as a second BP4 code. BayesDel was not used (no verified published threshold). BP4 met at Supporting strength.

Rule
For missense variants: REVEL <= 0.3.
Evidence considered
  • REVEL score 0.294 (source: revel, local REVEL v1.3 lookup) satisfies VCEP KRAS v2.3 BP4 threshold REVEL <= 0.3 (threshold source: ClinGen RASopathy VCEP KRAS v2.3, cspec doc 643243114) - 0.294 <= 0.3, BP4 met at Supporting.
  • SpliceAI max delta score 0.04 (source: spliceai) predicts no significant splice impact; consistent with BP4 but not counted as an independent code.
  • BayesDel score -0.119893 (source: bayesdel) not applied: no verified published threshold available to this pipeline, treated as insufficiently calibrated.
Still missing
  • BayesDel score (-0.119893) could not be applied because no verified published threshold is available to this pipeline; score treated as not_available (insufficiently calibrated).
Sources
PP3 Not met: REVEL 0.294 versus the VCEP >=0.7 threshold for missense variants. Details ▾Hide ▴
Reasoning

Governing framework is the ClinGen RASopathy Expert Panel VCEP specification for KRAS v2.3 (CSPEC doc 643243114), which pre-assigns PP3 for missense variants only when REVEL >= 0.7 and requires that any predicted splicing impact match the (gain-of-function) disease mechanism. REVEL score for NM_033360.3:c.250A>G is 0.294, well below the 0.7 threshold, so the missense in-silico path does not meet PP3. On the splice-impact path, SpliceAI reports max delta score 0.04 (DS_AG 0.0, DS_AL 0.0, DS_DG 0.04, DS_DL 0.04) with all four delta scores <= 0.04, i.e. no significant splice impact predicted, so no splice-altering outcome exists that could match the disease mechanism. BayesDel score (-0.119893) was considered but is treated as insufficiently calibrated because no verified published threshold is available to this pipeline, so it cannot support PP3. PP3 is therefore not met on either sub-path.

Rule
For missense variants: REVEL >= 0.7. For splicing impact, predicted outcome must match disease mechanism.
Evidence considered
  • REVEL score 0.294 (source: revel, local REVEL v1.3 lookup) compared against VCEP KRAS v2.3 PP3 threshold REVEL >= 0.7 (threshold source: ClinGen RASopathy VCEP KRAS v2.3, cspec doc 643243114) - 0.294 < 0.7, PP3 not met on missense path.
  • SpliceAI max delta score 0.04 (DS_AG 0.0, DS_AL 0.0, DS_DG 0.04, DS_DL 0.04; source: spliceai, SpliceAI Lookup for NM_033360.3:c.250A>G) - no significant splice impact predicted, so no splice outcome matches the gain-of-function RASopathy mechanism; PP3 not met on splice path.
  • BayesDel score -0.119893 (source: bayesdel) not applied: no verified published threshold available to this pipeline, treated as insufficiently calibrated.
Still missing
  • BayesDel score (-0.119893) could not be applied because no verified published threshold is available to this pipeline; score treated as not_available (insufficiently calibrated).
Sources
BP7 N/ANot applicable: BP7 applies only to synonymous, intronic, or non-coding variants; this is a missense change (p.Ile84Val). Details ▾Hide ▴
Reasoning

The ClinGen RASopathy VCEP KRAS v2.3 BP7 rule applies to synonymous (silent) variants for which splicing prediction algorithms predict no impact to the splice consensus sequence nor creation of a new splice site AND the nucleotide is not highly conserved, and is also applicable to intronic positions (except canonical splice sites) or non-coding variants. NM_033360.3:c.250A>G is a missense variant (NP_203524.1:p.(Ile84Val); consequence class 'missense' in the pipeline normalization; not a canonical splice-site or intronic/non-coding variant). Because BP7 is defined only for synonymous/intronic/non-coding variants, it is not applicable to this variant and is not assessed on its merits (e.g., conservation of the nucleotide is not evaluated).

Rule
A synonymous (silent) variant for which splicing prediction algorithms predict no impact to the splice consensus sequence nor the creation of a new splice site AND the nucleotide is not highly conserved. This rule is also applicable for intronic positions (except canonical splice sites) or non-coding variants and should be used in conjunction with BP4.
Evidence considered
  • Variant consequence class 'missense' for NM_033360.3:c.250A>G (NP_203524.1:p.(Ile84Val)) - falls outside the synonymous/intronic/non-coding scope of the VCEP KRAS v2.3 BP7 rule (rule source: ClinGen RASopathy VCEP KRAS v2.3, cspec doc 643243114).
Still missing
  • BP7 rule not applicable: variant is missense (p.Ile84Val), not a synonymous/intronic/non-coding variant; nucleotide conservation assessment not required.
Sources

Statement

In silico

SpliceAI predicts no significant splice impact for this variant (max delta score = 0.04). REVEL score = 0.294. BayesDel score = -0.119893.

1 paper record listed. No publication is explicitly linked to an applied criterion in the recorded metadata. None of the listed paper records explicitly indicates that the variant is named.

Recorded publications

  • Sherloc: a comprehensive refinement of the ACMG-AMP variant classification criteria.
    Nykamp K et al. · 2017
    Sherloc (Nykamp et al., 2017) is a methodology paper describing a semiquantitative, hierarchical refinement of the ACMG/AMP variant classification criteria developed at Invitae. It discusses generic variant-type rules including PVS1, PM4, and BP3 in the abstract framework sense (e.g., 'PM4 (in-frame indel in a nonrepetitive region)'), but it contains no variant-level or case-level data for KRAS NM_033360.3:c.250A>G / p.Ile84Val. A full-text search for the variant and its genomic coordinates returned zero matches. It was retrieved via the ClinVar submission trail (SCV003471699) but provides no evidence for any consequence-based criterion in this group.
    Does not name this variant
    PMID 28492532 ↗
    Quoted passage
    Variant classification is the cornerstone of clinical molecular genetic testing.

    Full text (28492532.txt), Introduction; full text searched for 'c.250A>G', 'p.Ile84Val', 'I84V', 'Ile84', '25380208', '25227274' - zero matches

Screenshots represent source records captured during evidence collection. Select one to view the recorded source content.

All source links

Statements for reports

The evidence statements recorded by the interpretation pipeline. They have not been reinterpreted by the page.

gnomAD v4.1

This variant is present in gnomAD v4.1 (AF= 6.19642e-07; MAF= 0.00006%, 1/1613834 alleles, homozygotes = 0) and has highest observed frequency in the South Asian population (AF= 1.09798e-05; MAF= 0.00110%, 1/91076 alleles, homozygotes = 0).

gnomAD v2.1

Absent from gnomAD v2.1.

gnomAD-Canada

Absent from gnomAD-Canada v1.0.

ClinVar

This variant has been reported in ClinVar as Uncertain significance (2 clinical laboratories). (ClinVarID = 1318518)

In silico

SpliceAI predicts no significant splice impact for this variant (max delta score = 0.04). REVEL score = 0.294. BayesDel score = -0.119893.

Functional

OncoKB did not identify variant-specific reviewed functional evidence for this variant; gene-level curated context is available for reviewer follow-up. KRAS, a GTPase which functions as an upstream regulator of the MAPK pathway, is frequently mutated in various cancer types including lung, colorectal

Somatic

This variant does not lie in a statistically significant hotspot. This variant has not previously been reported in somatic cancers (COSMIC).

Cancer Hotspots

This variant does not lie in a statistically significant hotspot.
